2GR-FE CHARGING: GENERATOR: REPLACEMENT

1. REPLACE GENERATOR DRIVE END FRAME BEARING

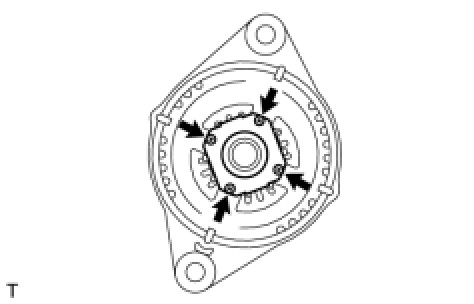

(a) Remove the 4 screws and bearing retainer.

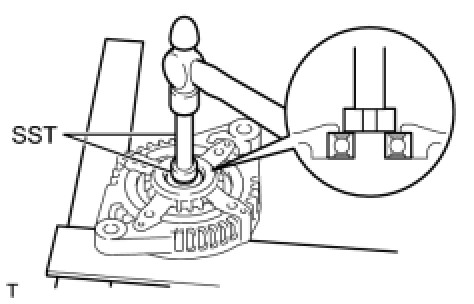

(b) Using SST and a hammer, tap out the bearing.





SST : 09950-60010

09951-00250

SST : 09950-70010

09951-07100

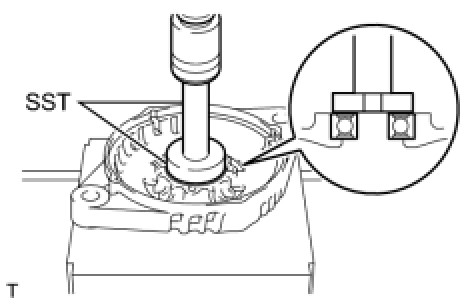

(c) Using SST and a press, press in a new bearing.





SST : 09950-60010

09951-00250

SST : 09950-70010

09951-07100

(d) Install the bearing retainer with the 4 screws.





Torque : 2.3 Nm (23 kgf-cm, 20 in-lbf)
