Repair and Diagnosis: Testing and Inspection

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

1. AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

Air conditioning system

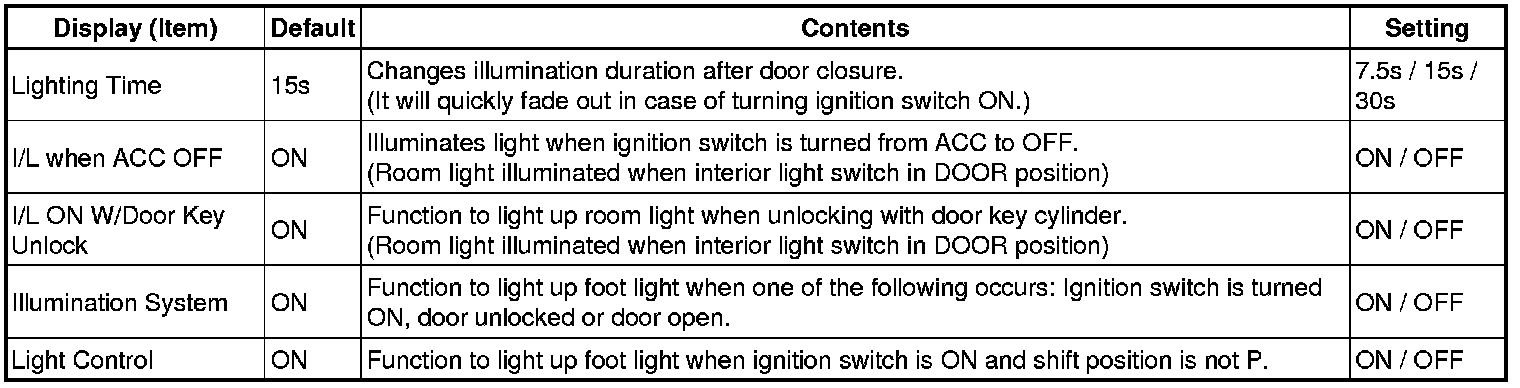

2. LIGHTING SYSTEM

Illuminated Entry





Light control (USA)





HINT
Sensitivity adjustments are difficult to confirm. Check by driving the customer's vehicle.

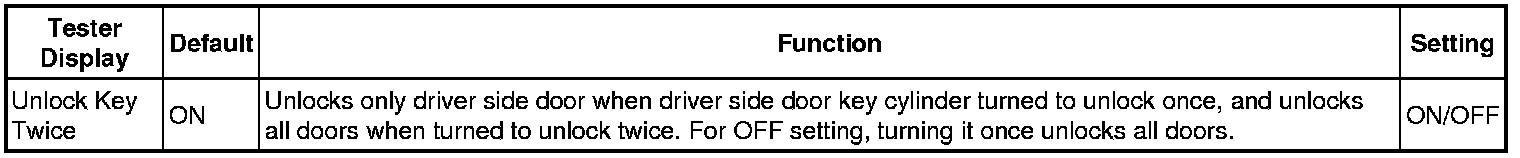

3. POWER DOOR LOCK CONTROL SYSTEM

Power door lock control system:

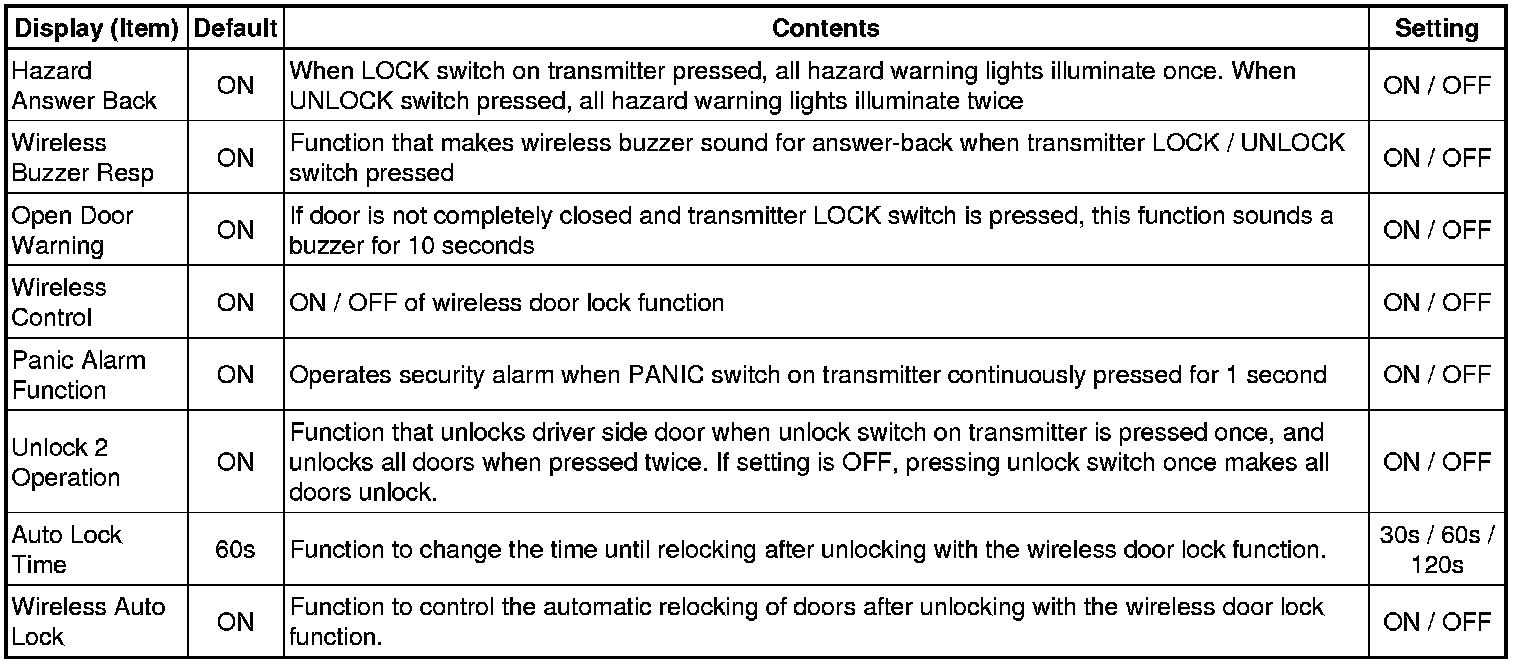

4. WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock Control System:

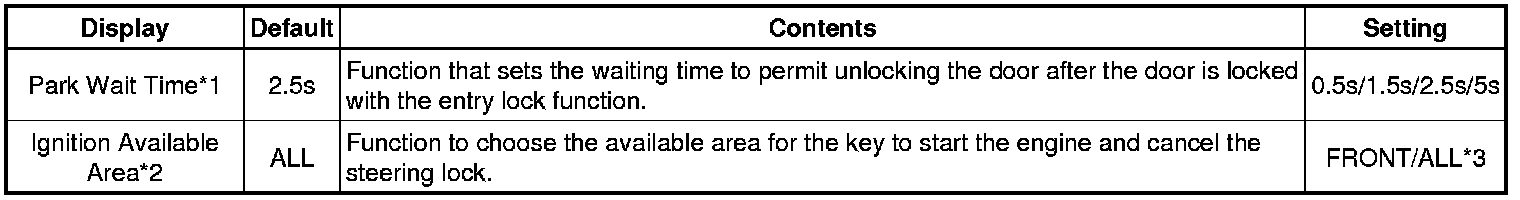

5. SMART KEY SYSTEM

Smart Key / Access





Warning





HINT
*1: Waiting time to permit unlocking door after locking.

*2: Entry ignition available area.

*3: "FRONT" means front, and "ALL" means front and rear.

*4: Warn when key battery becomes weak.

6. METER / GAUGE SYSTEM

Combination Meter
