Operation CHARM: Car repair manuals for everyone.

Cabin Air Filter / Purifier: Service and Repair





Air Conditioning Filter

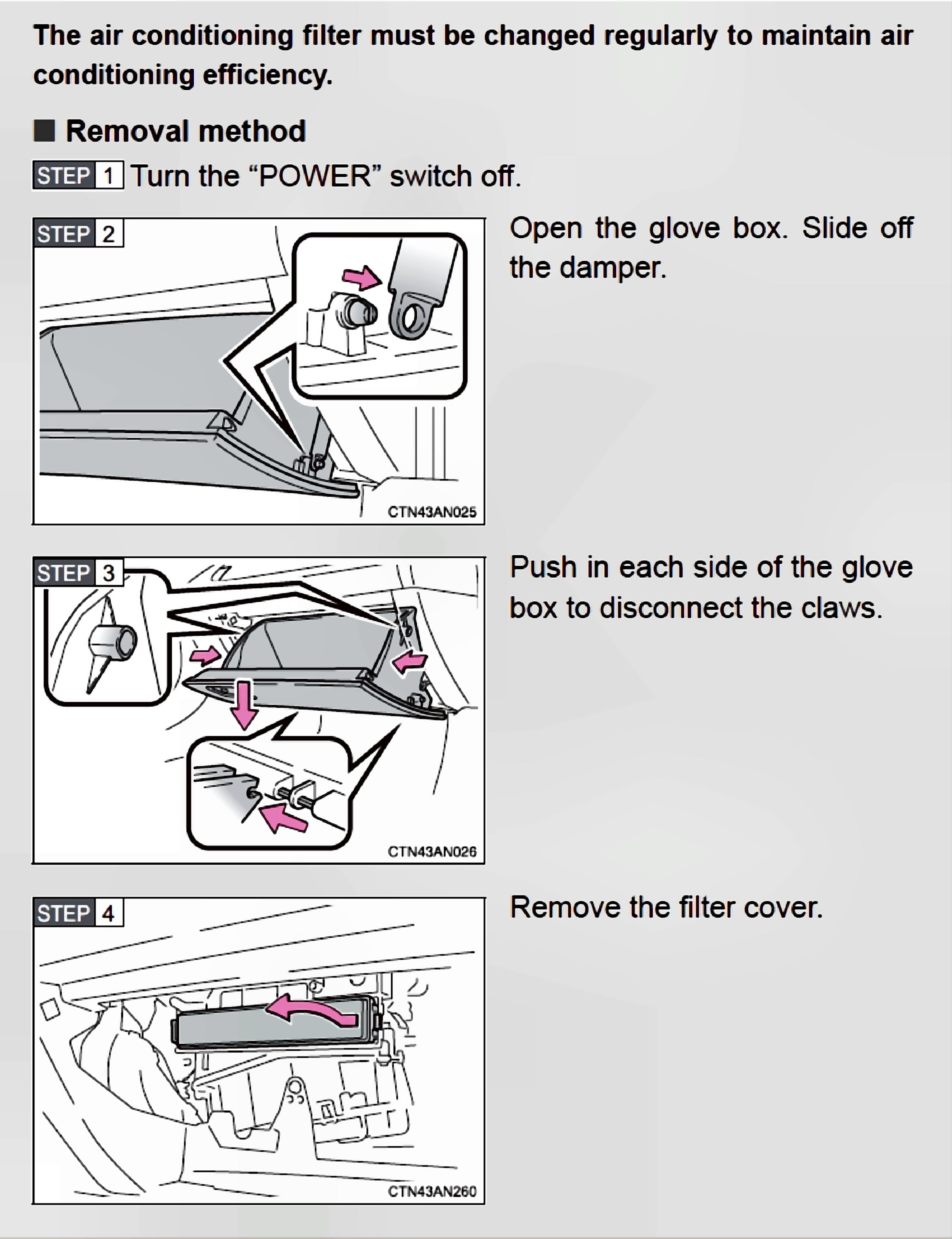

Removal Method:

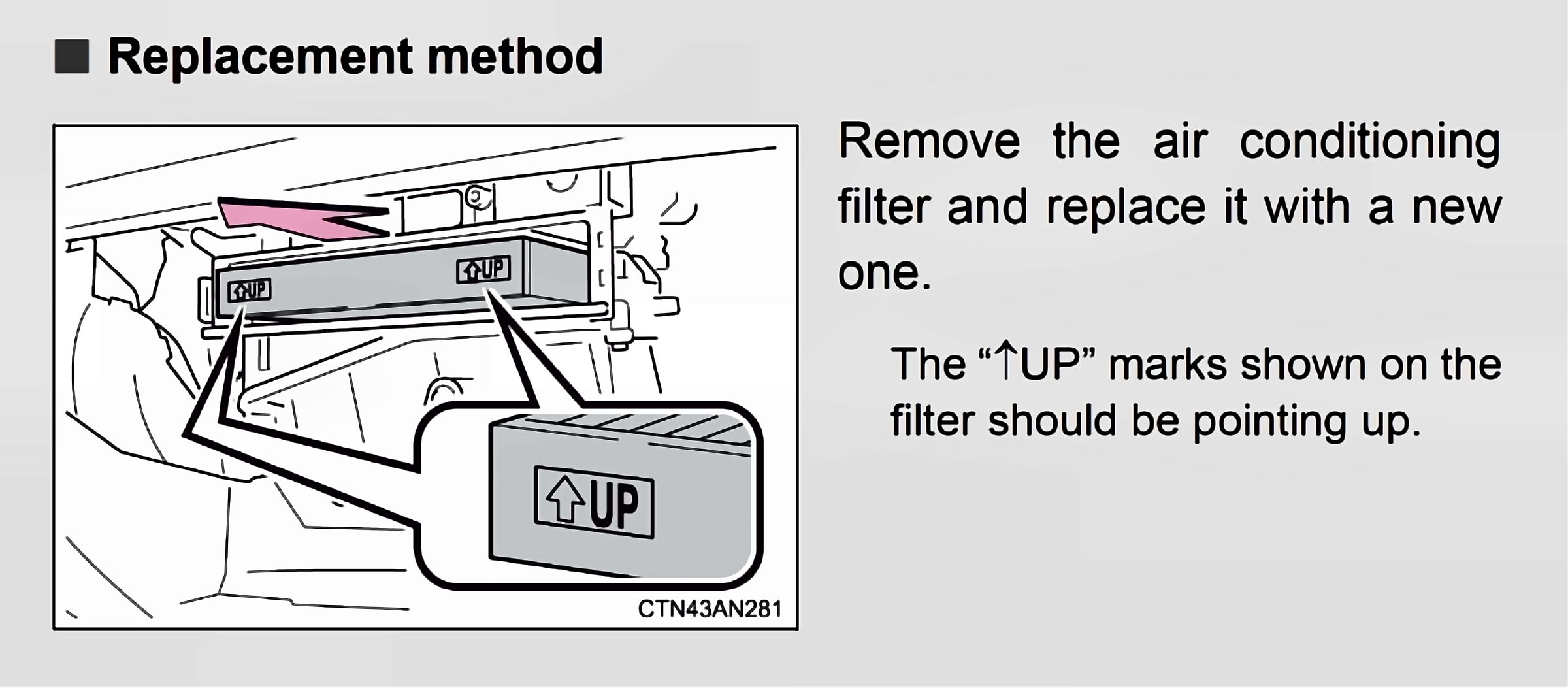

Replacement Method:






Checking Interval
- Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the "Scheduled Maintenance Guide" or "Owner's Manual Supplement".)
- If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
