Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting / illuminated Entry or Light Control.

(e) Select the setting by referring to the table below.

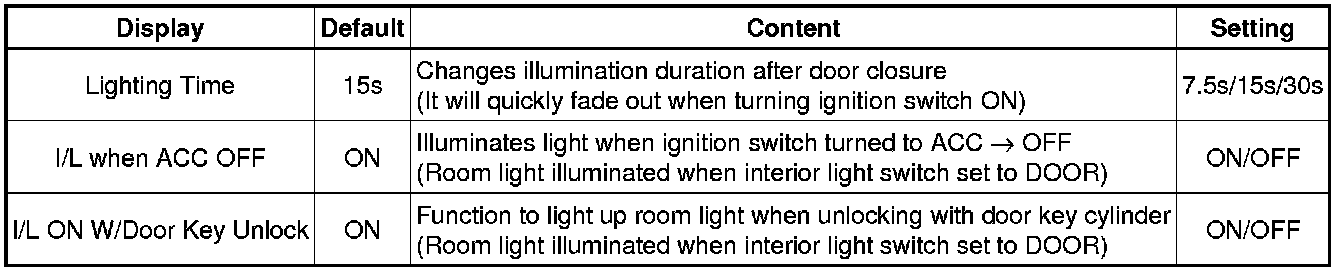

Illuminated Entry

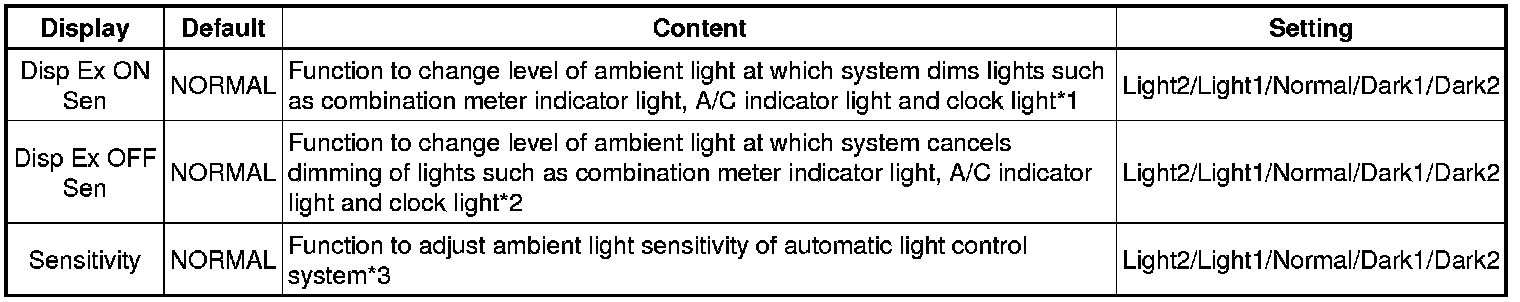

Light Control





HINT
The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

*1





HINT

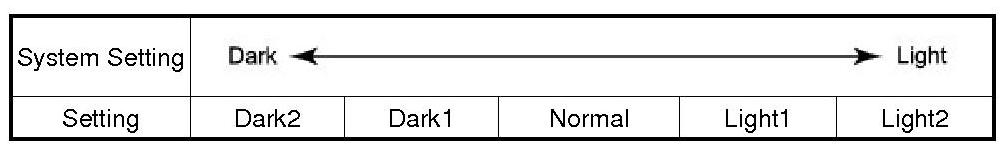

When the setting is closer to the "Light" side, the system dims the indicator lights even when the surrounding area is relatively bright. When the setting is closer to the "Dark" side, the system waits until the surrounding area is darker before dimming the indicator lights.

*2





HINT
When the setting is closer to the "Dark" side, the system cancels the dimming of the indicator lights even when the surrounding area is relatively dark. When the setting is closer to the "Light" side, the system waits until the surrounding area is brighter before canceling the dimming of the indicator lights.

*3





HINT
When the setting is closer to the "Light" side, the system turns the lights on even when the surrounding area is relatively bright. When the setting is closer to the "Dark" side, the system waits until the surrounding area is darker before turning on the lights.
