Service Data
SPECIFICATIONS: A760E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA
Line Pressure and Shift schedule
Extension Housing Rear Oil Seal
Drive Plate

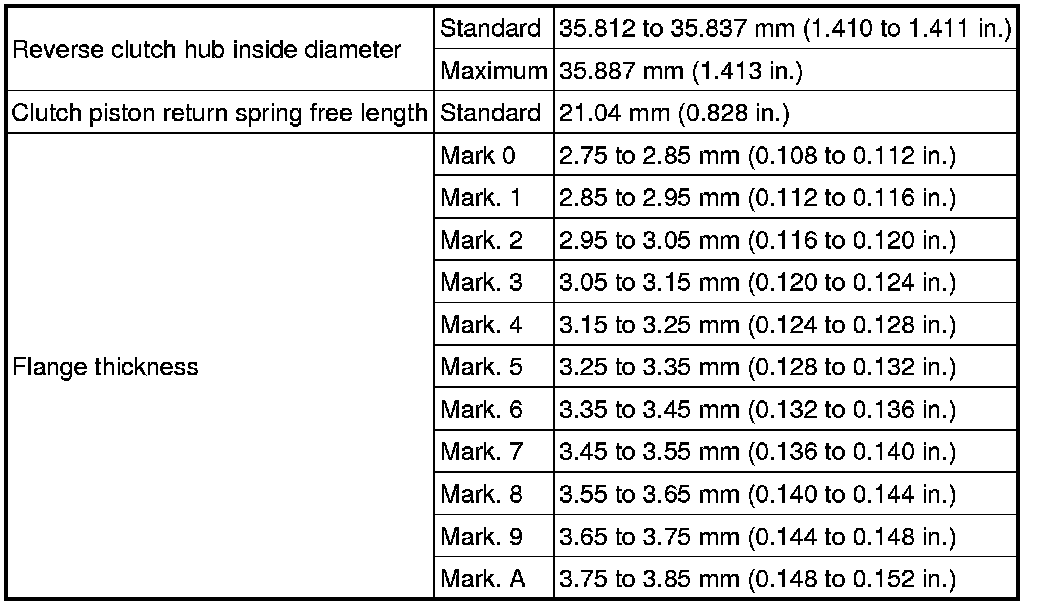

Reverse Clutch

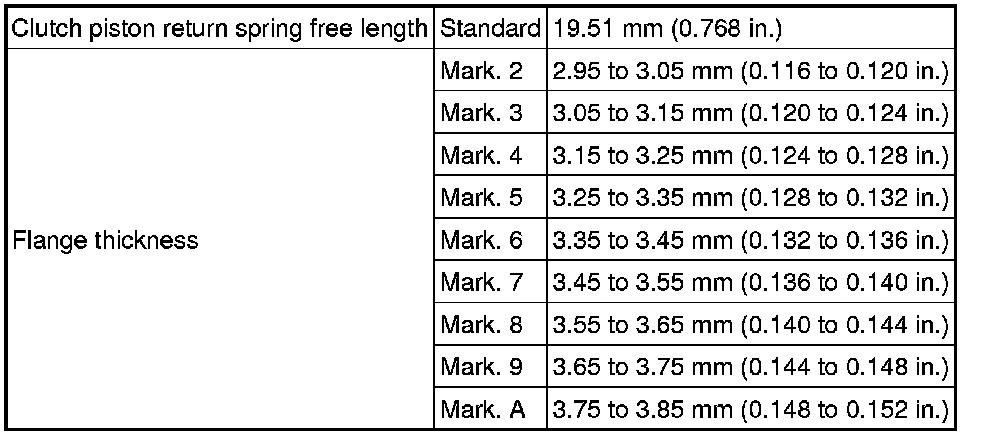

Forward Clutch
Direct Clutch

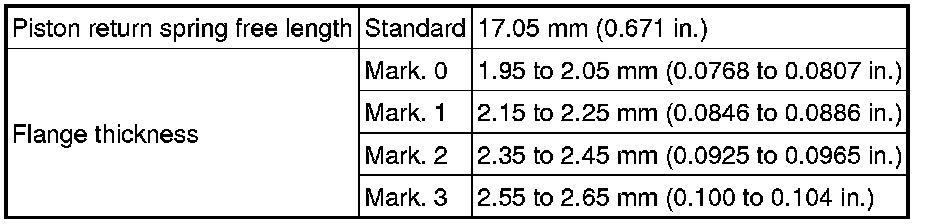

No. 3 Brake

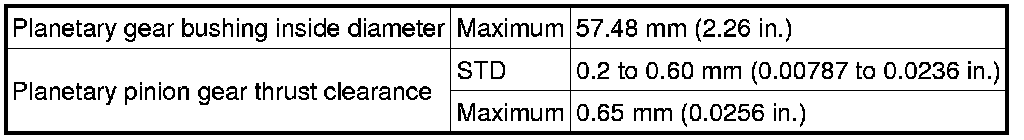

Front Planetary Gear
No. 1 Brake
No. 2 Brake

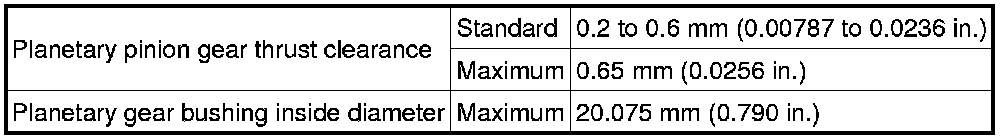

Center Planetary Gear

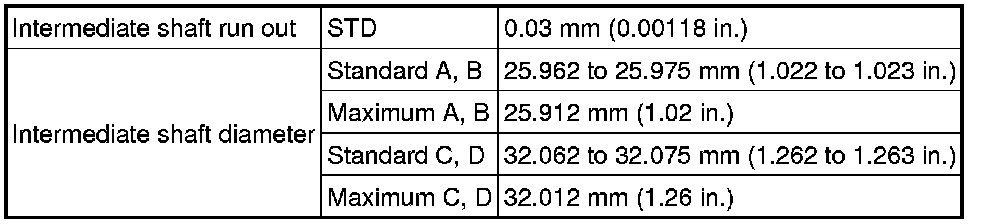

Intermediate Shaft
Rear Planetary Gear
No. 4 Brake
Output Shaft Bearing

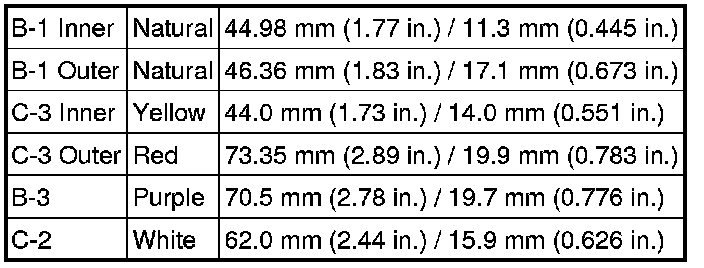

Accumulator Spring

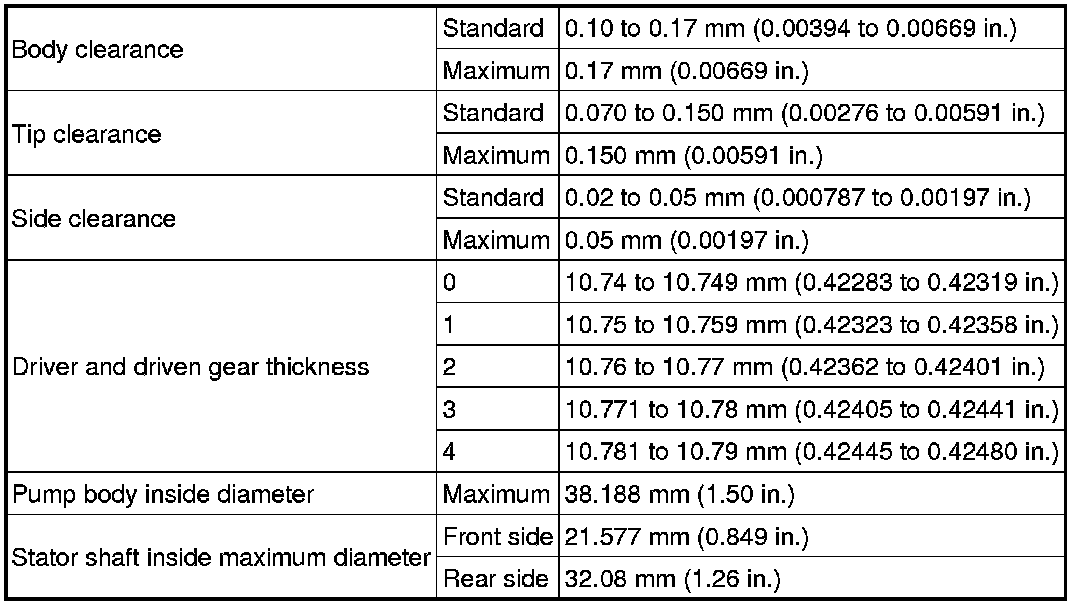

Oil Pump
