System Specifications





SPECIFICATIONS: 1UR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS

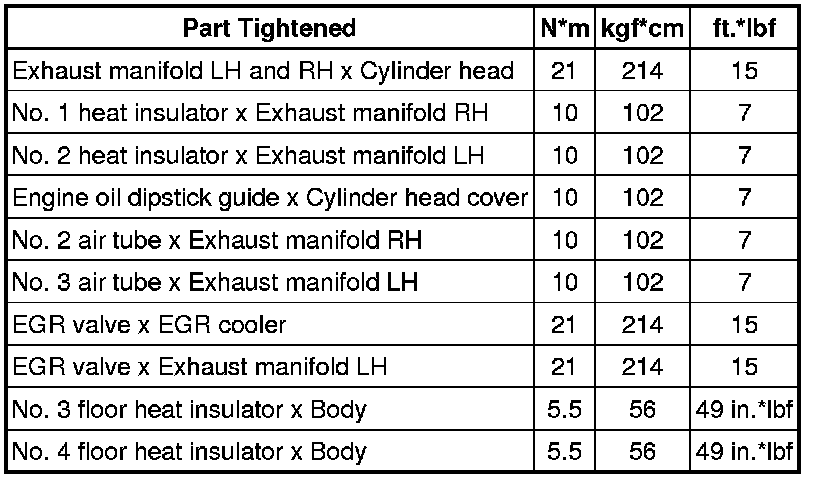

Exhaust manifold

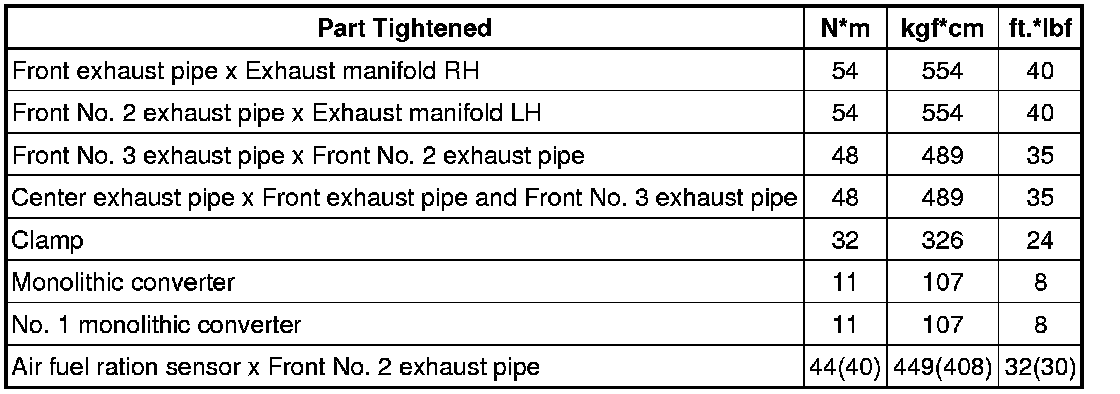

Exhaust pipe






() For use with SST

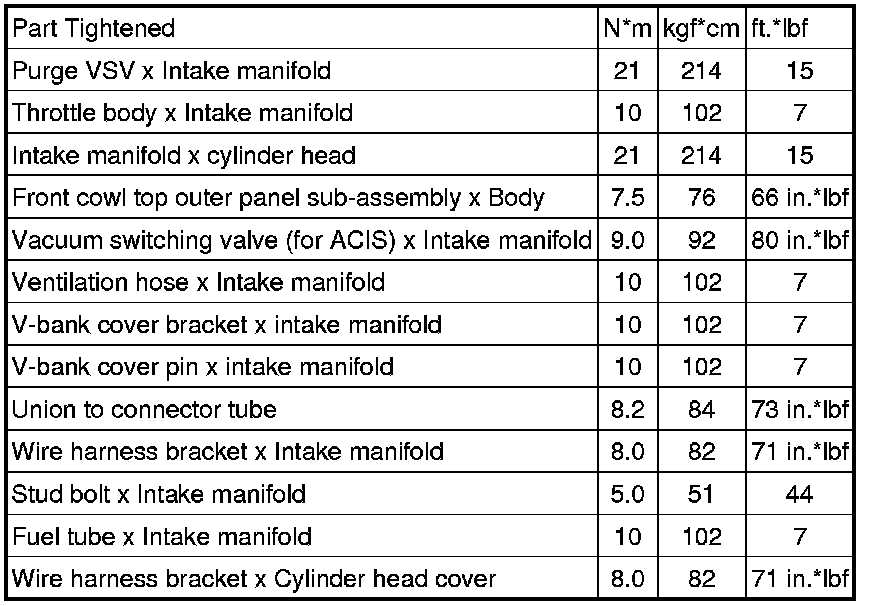

Intake manifold
