Installation
1UR-FE STARTING: IGNITION SWITCH: INSTALLATION 1.
INSTALL
IGNITION SWITCH ASSEMBLY

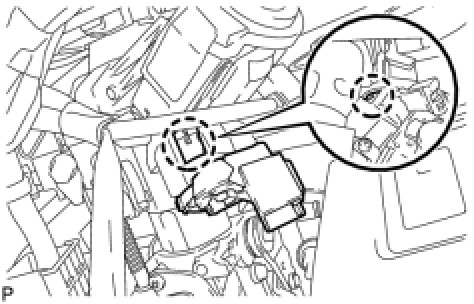

(a)
Attach the 2 claws to install the
ignition switch.

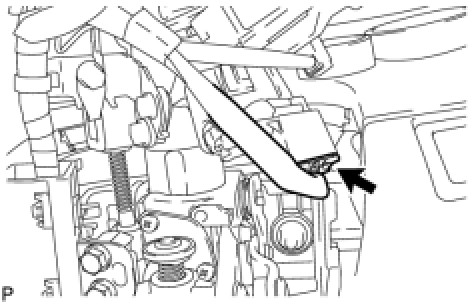

(b)
Connect the
ignition switch connector.
2.
INSTALL LOWER STEERING COLUMN COVER
Installation 3.
CUSTOMIZE INFORMATION (for Power Tilt and Power Telescopic Steering Column)
Installation
