Dynamic Laser Cruise Control System
>>

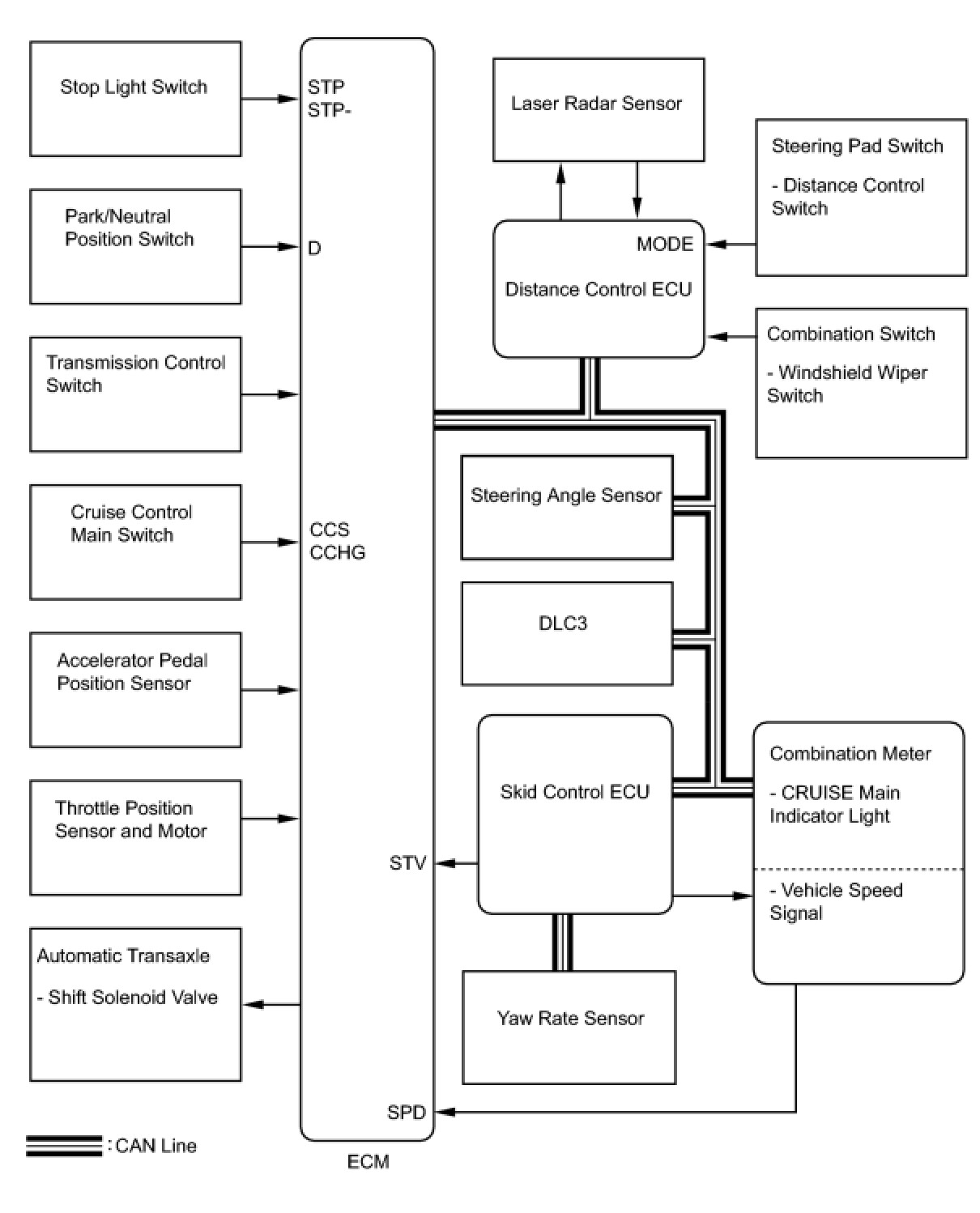

System Diagram
System Diagram
CRUISE CONTROL
: DYNAMIC LASER CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM

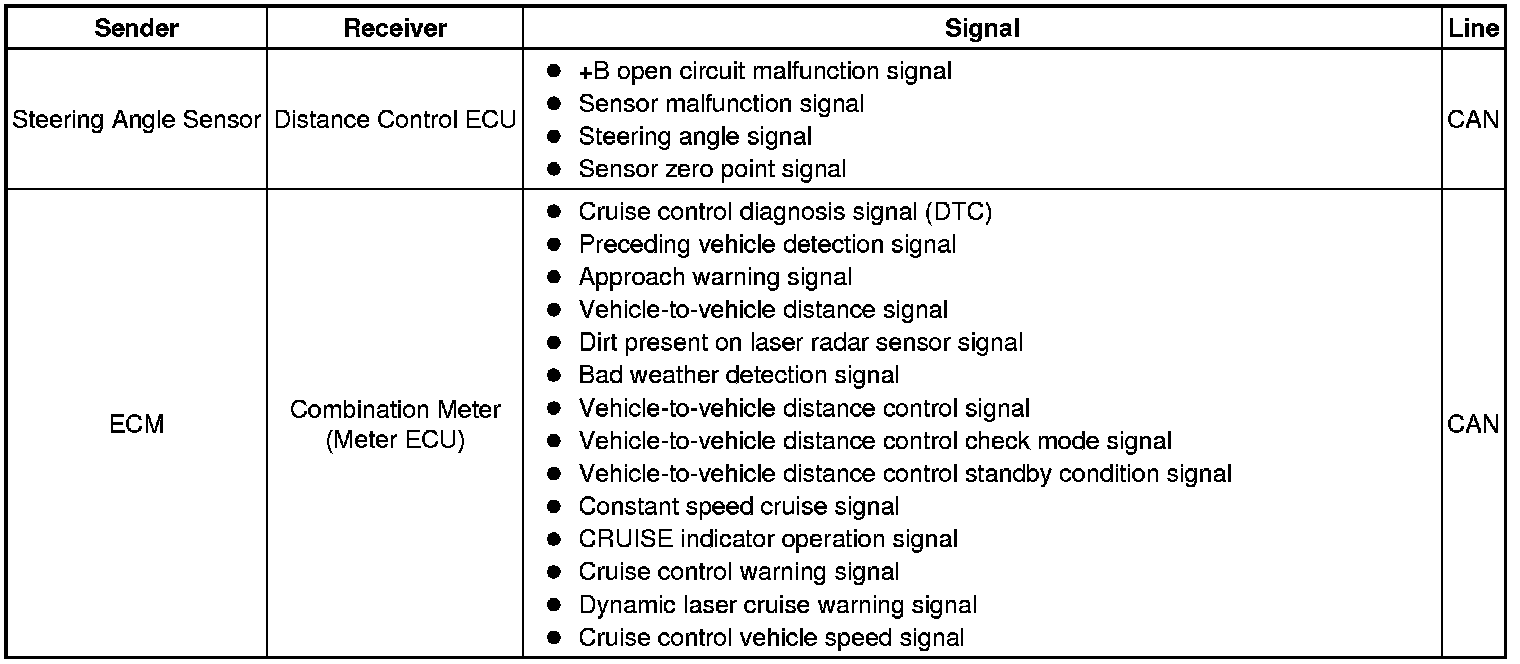

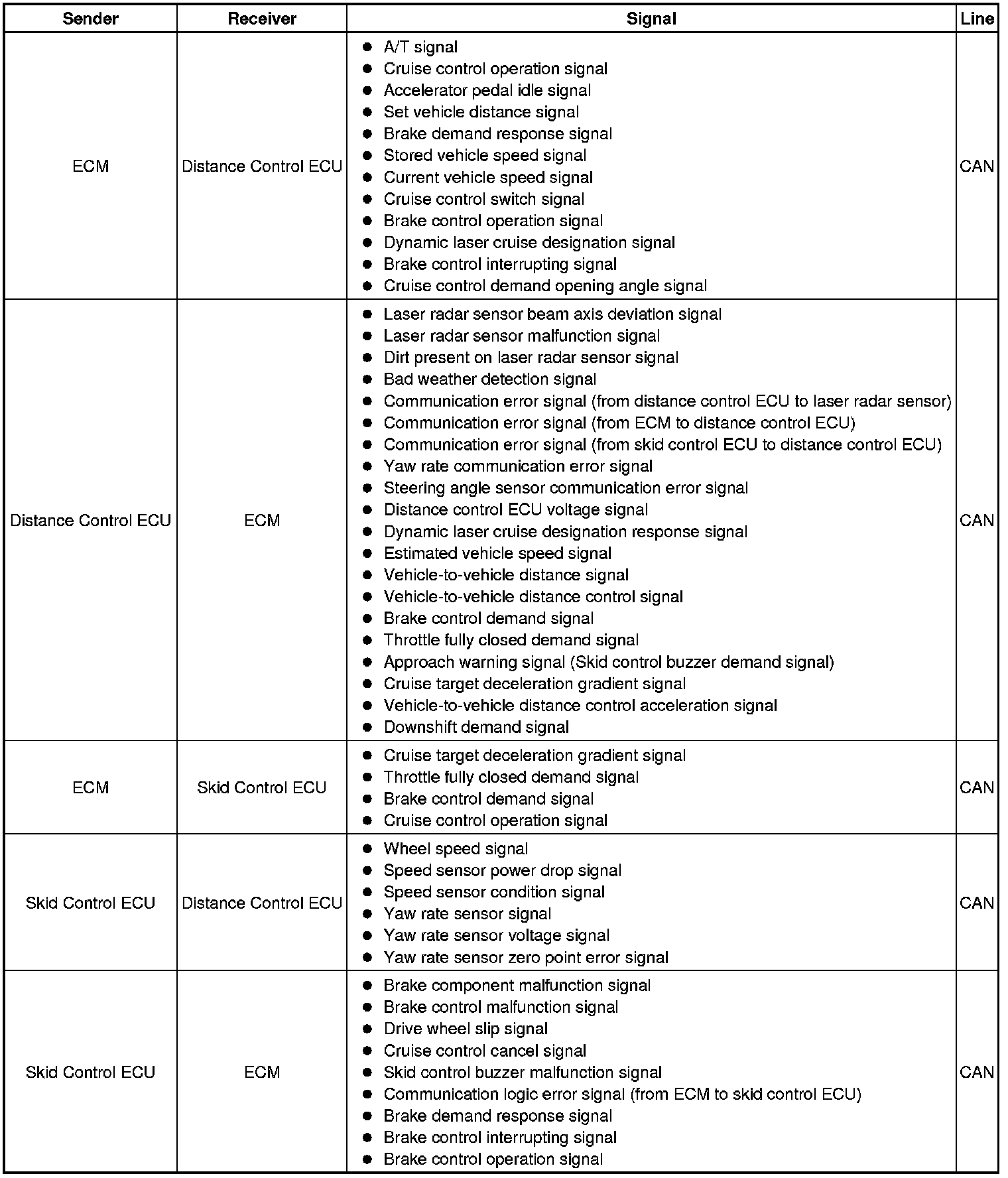

Communication Table
