ECM Communication Stop Mode

NETWORKING: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode
- ECM Communication Stop Mode

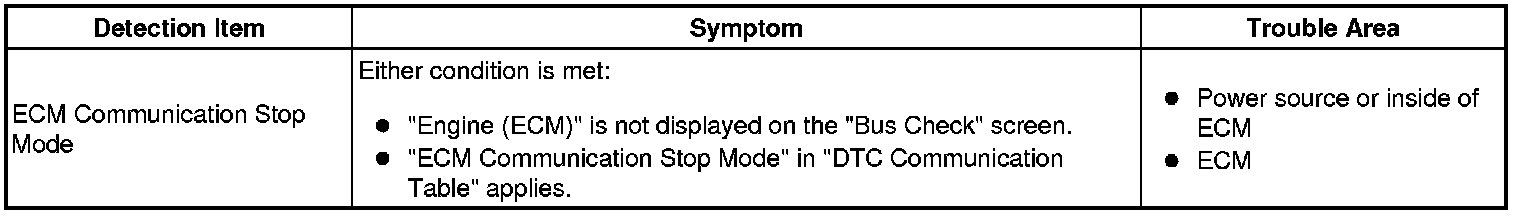

DESCRIPTION

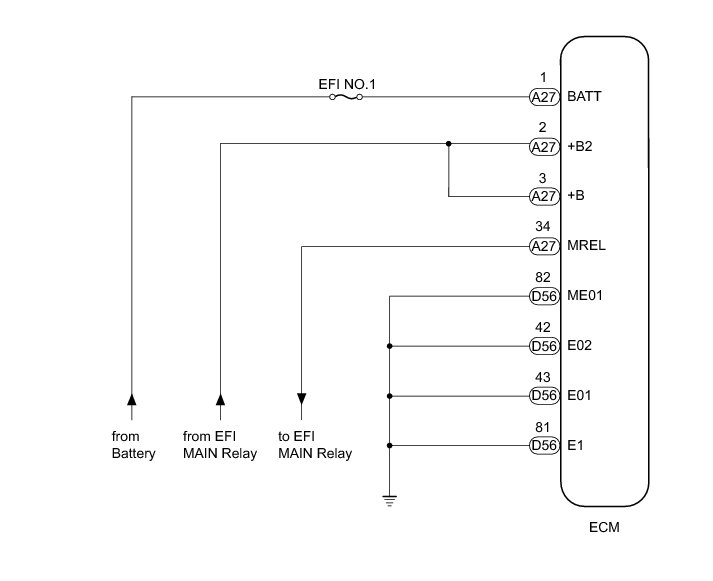

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)

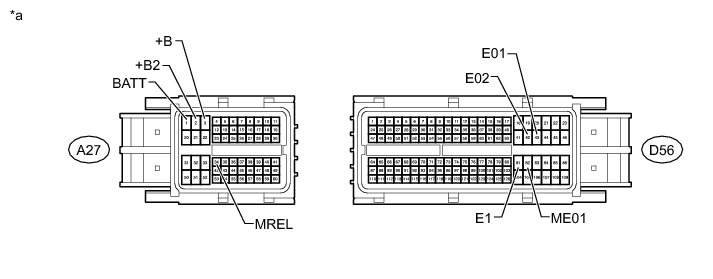

(a) Disconnect the A27 and D56 ECM connectors.





Text in Illustration

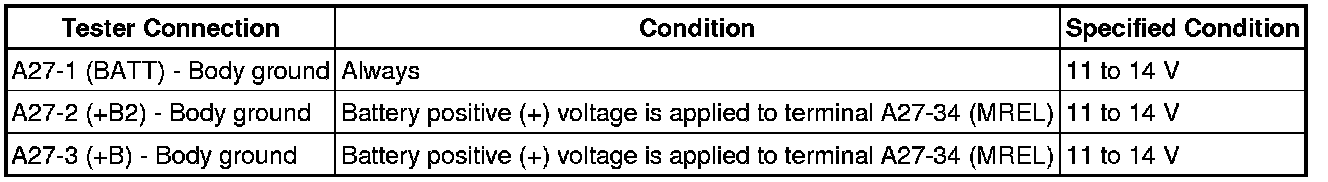

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





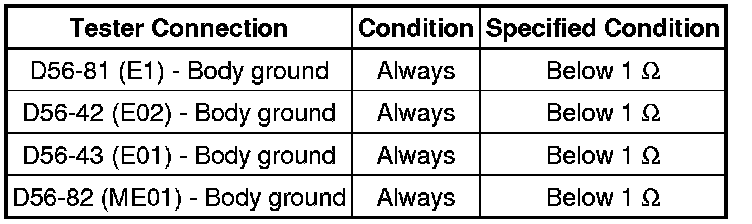

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Result





B -- REPLACE ECM Removal

C -- REPLACE ECM Removal

D -- REPAIR OR REPLACE HARNESS OR CONNECTOR

A -- REPLACE ECM Removal
