Installation

3UR-FE ENGINE CONTROL: POWER STEERING OIL PRESSURE SWITCH: INSTALLATION

1. INSTALL POWER STEERING OIL PRESSURE SWITCH

(a) Install a new O-ring to the oil pressure switch.

(b) Apply a light coat of engine oil to the O-ring of the oil pressure switch.

NOTICE:
* When reusing the oil pressure switch, inspect the O-ring.
* If the O-ring has scratches or cuts, replace the new O-ring.

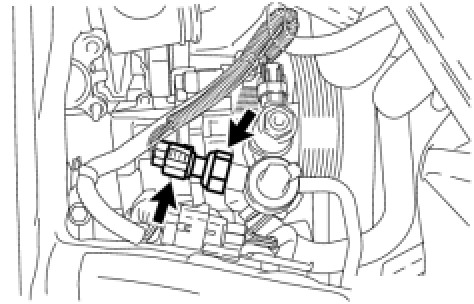

(c) Using a 24 mm deep socket wrench, install the oil pressure switch.

Torque : 21 Nm (214 kgf-cm, 16 ft-lbf)





(d) Connect the oil pressure switch connector.

2. ADD POWER STEERING FLUID

3. BLEED POWER STEERING FLUID On-Vehicle Inspection

4. INSPECT FOR POWER STEERING FLUID LEAK

5. INSTALL FRONT FENDER APRON SEAL RH Installation
