System Diagram
AB60E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

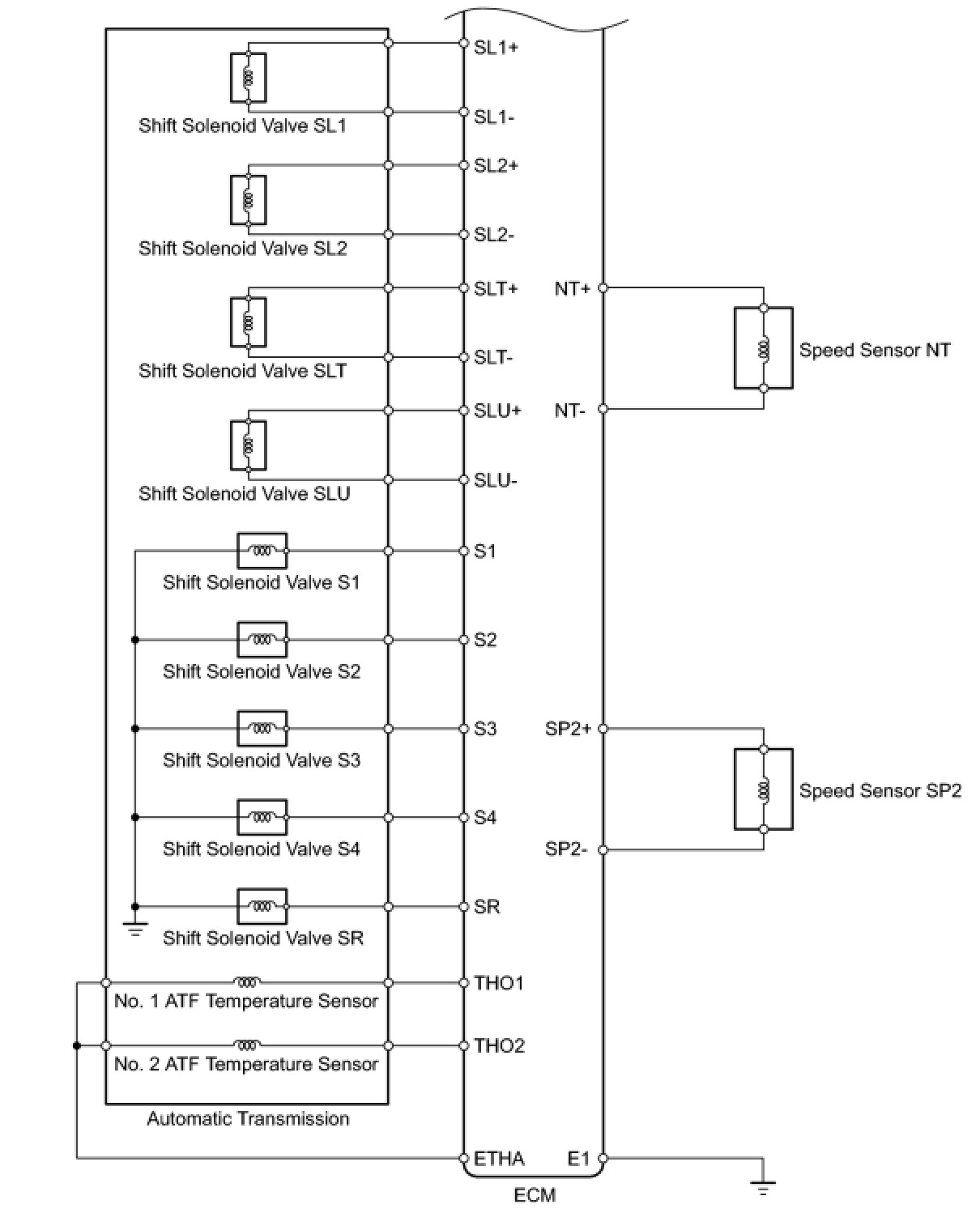

The configuration of the electronic control system in the AB60E automatic transmission is as shown in the following chart.
AB60E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM
The configuration of the electronic control system in the AB60E automatic transmission is as shown in the following chart.
