Service Data
SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA
MEASURE VEHICLE HEIGHT
Text in Illustration
Measuring points:
A : Ground clearance of the front drive shaft center
B : Ground clearance of the front adjusting cam bolt center
C : Ground clearance of the rear drive shaft center
D : Ground clearance of the rear lower arm No. 1 adjusting cam bolt center

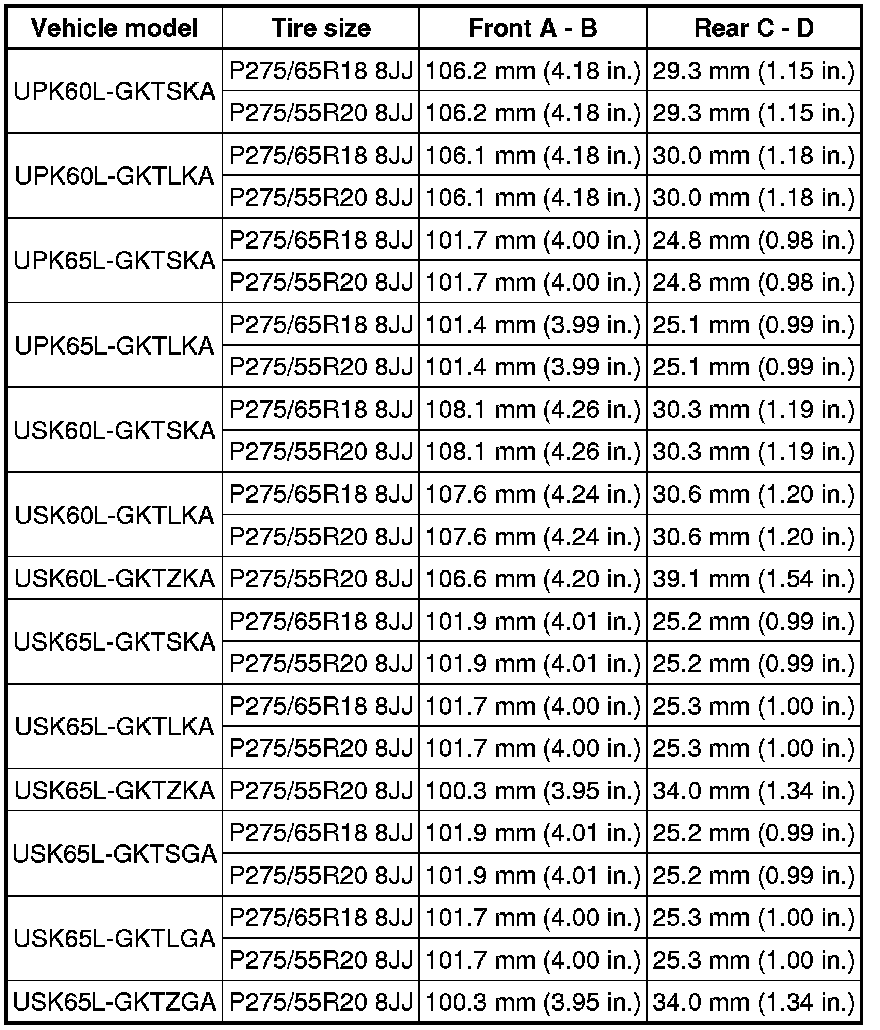

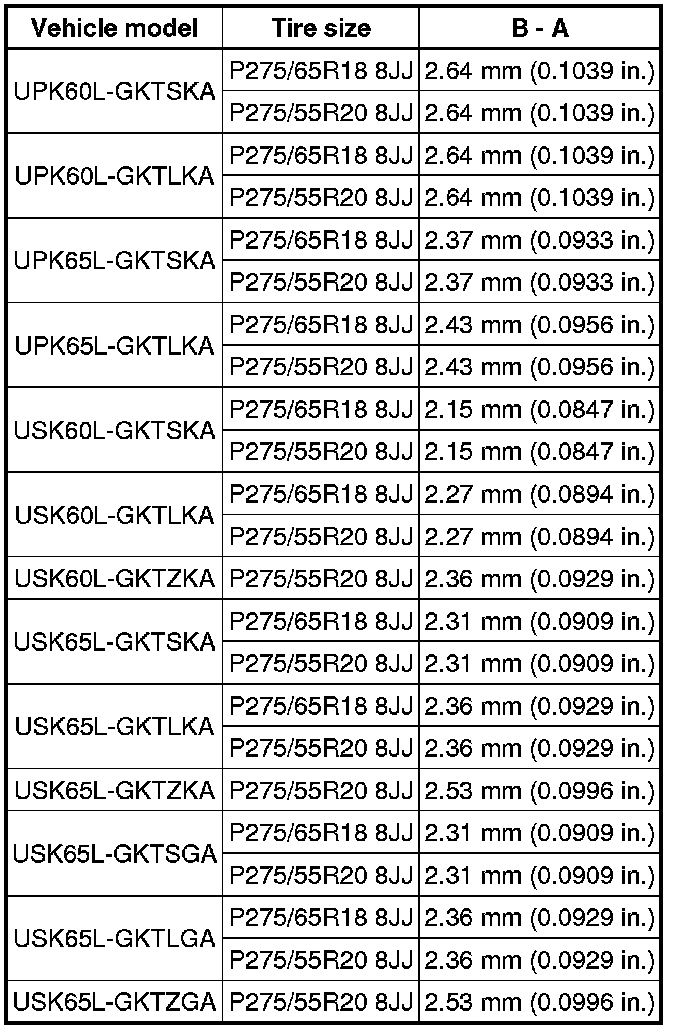

Standard vehicle height (unloaded vehicle):

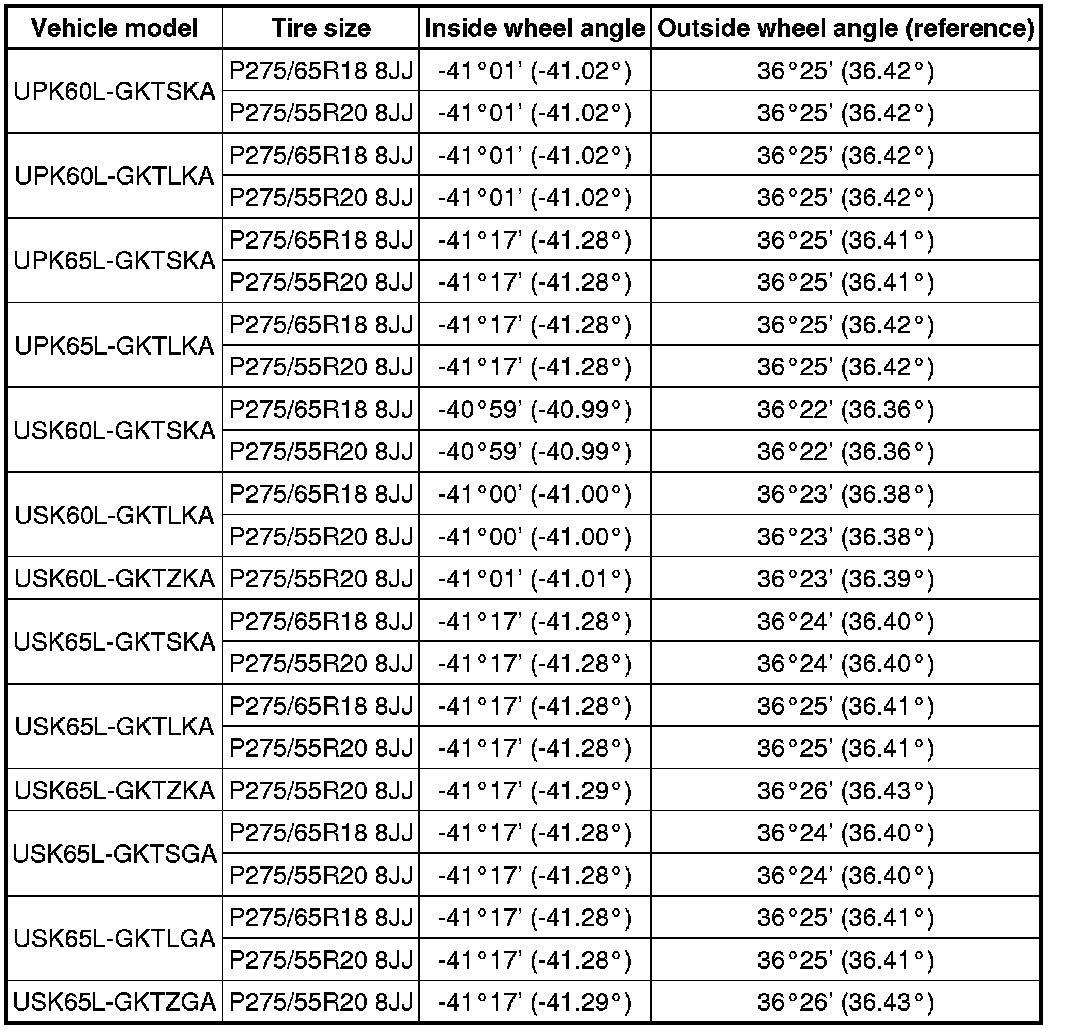

Standard wheel angle (unloaded vehicle):

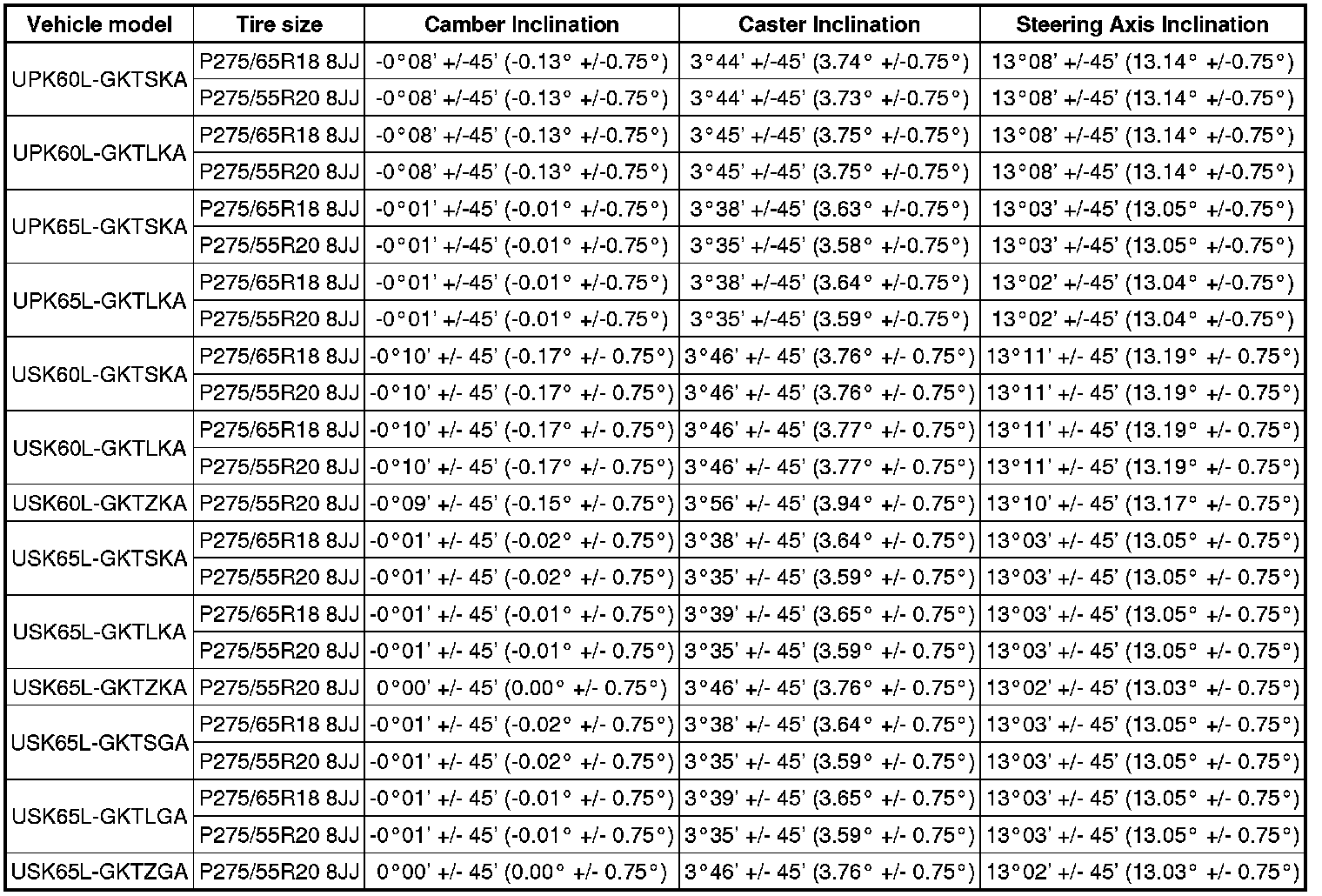

Standard camber, caster, steering axis inclination (unloaded vehicle):
Standard toe-in (unloaded vehicle):
Rear Standard toe-in (unloaded vehicle):

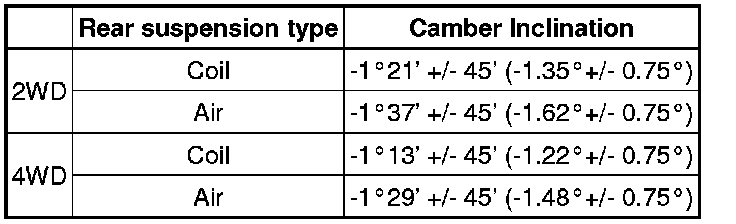

Rear Standard camber inclination (unloaded vehicle):
