Installation

HEATING / AIR CONDITIONING: REAR AIR CONDITIONING PANEL: INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

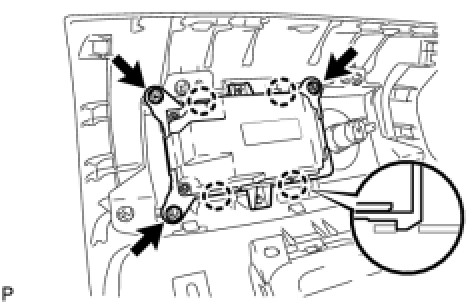

(a) Attach the 4 claws and install the air conditioning control.





(b) Install the 3 screws.

2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

(a) Attach the 2 clamps and install the console rear end panel.





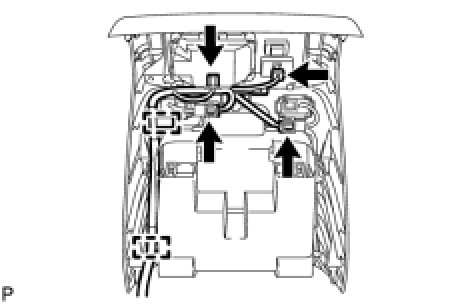

(b) Connect the 4 connectors.

(c) Attach the 6 clips and install the console rear end panel.
