Suspension

SPECIFICATIONS: SUSPENSION CONTROL: SERVICE DATA

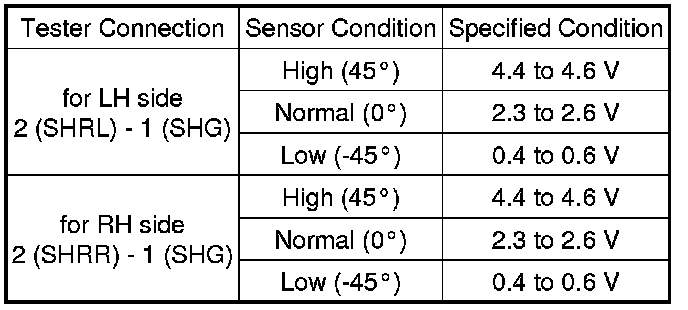

Rear Height Control Sensor

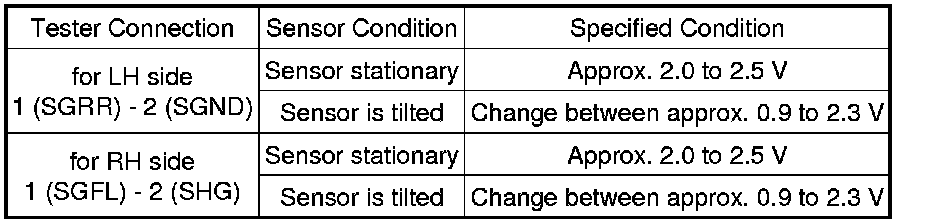

Acceleration Sensor

Absorber Control Actuator

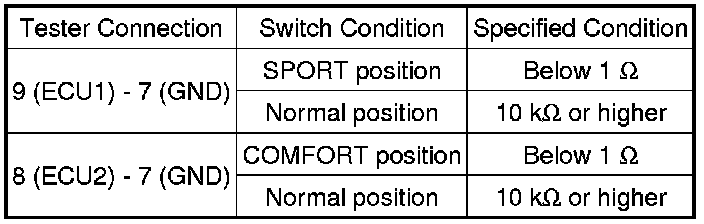

Suspension Control Switch
