Service Data

SPECIFICATIONS: A760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

Line Pressure and Shift schedule

Drive Plate

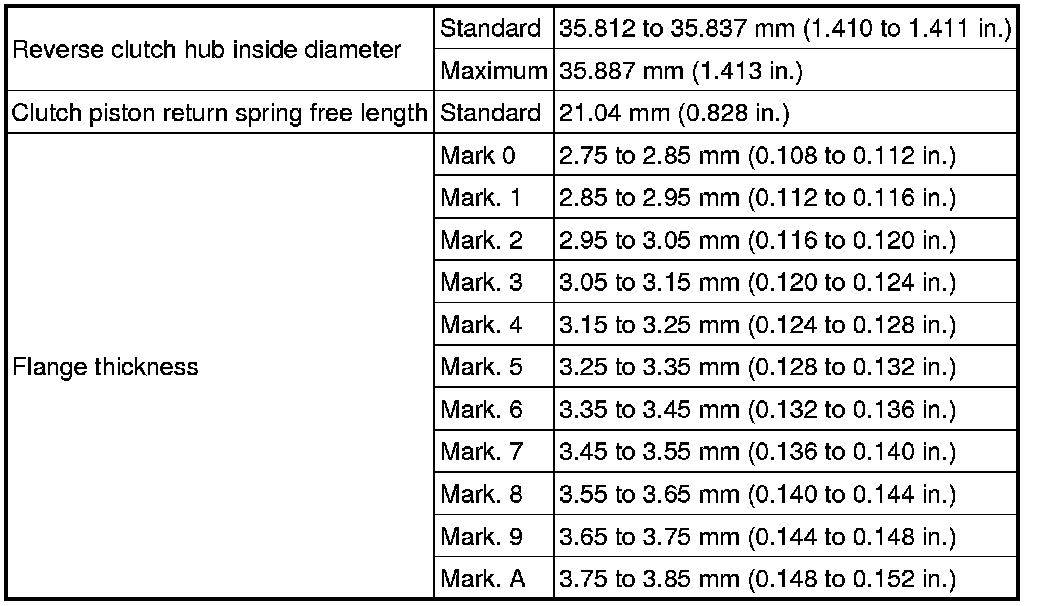

Reverse Clutch

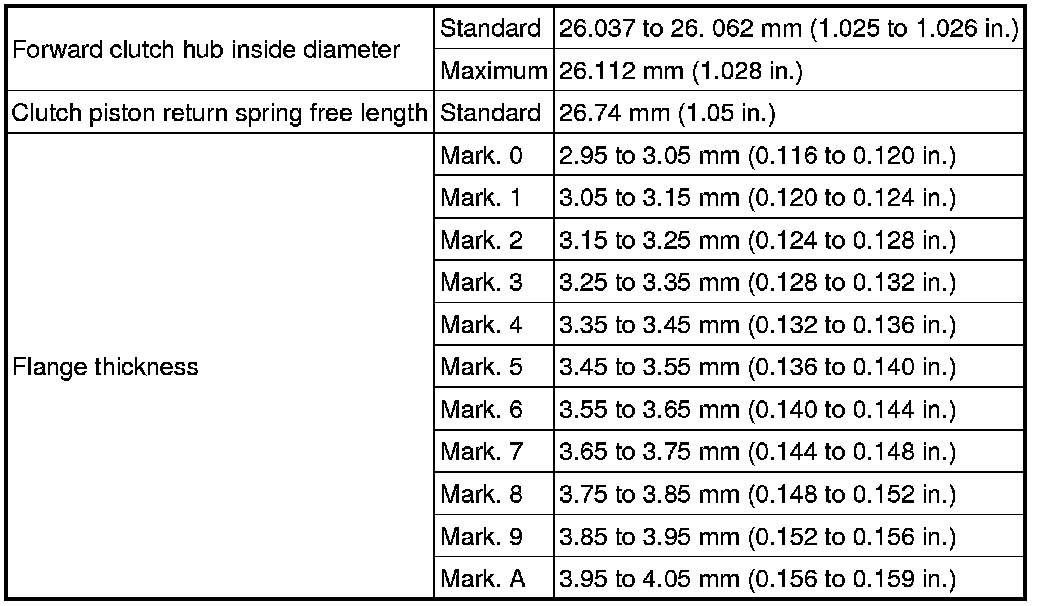

Forward Clutch

Direct Clutch

No. 3 Brake

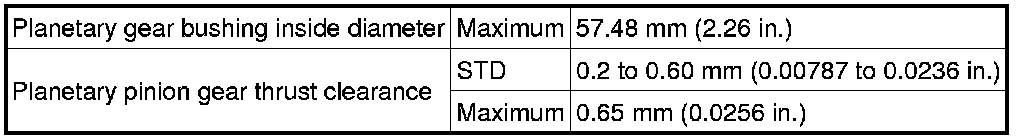

Front Planetary Gear

No. 1 Brake

No. 2 Brake

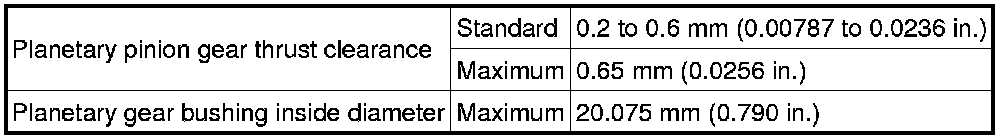

Center Planetary Gear

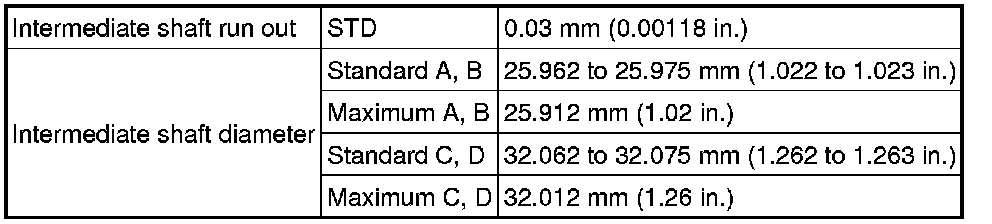

Intermediate Shaft

Rear Planetary Gear

No. 4 Brake

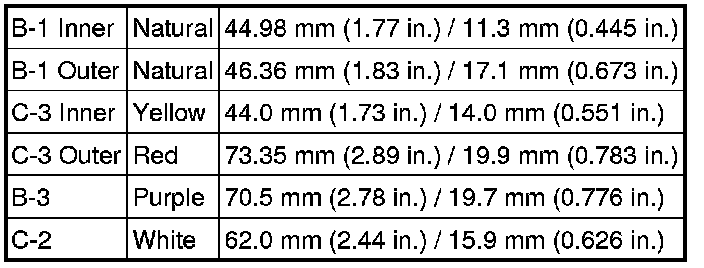

Accumulator Spring

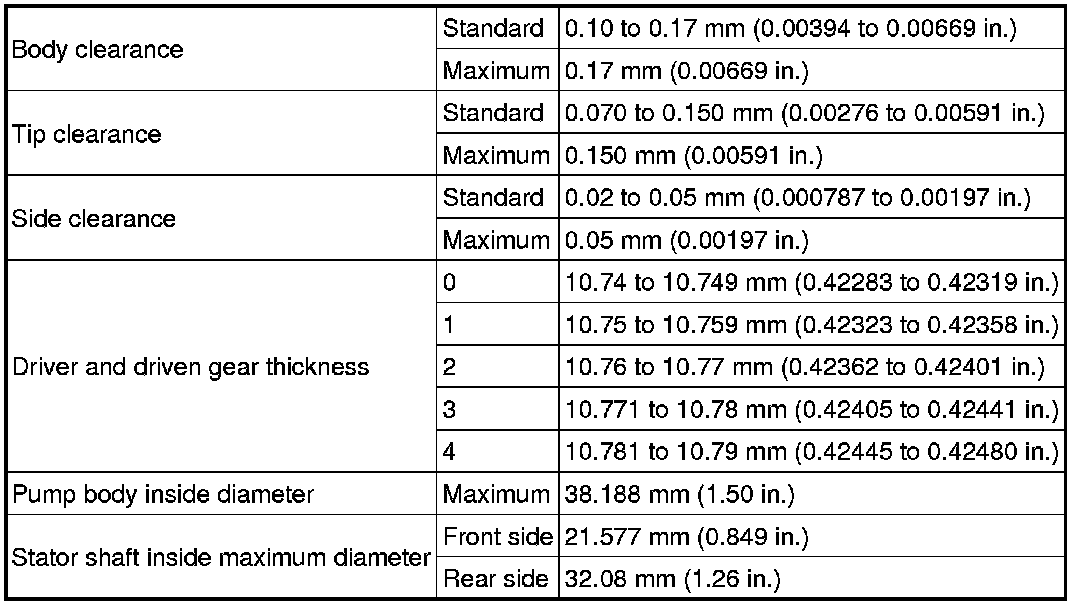

Oil Pump
