SPECIFICATIONS: AXLE AND DIFFERENTIAL: SERVICE DATA
Front Axle Hub
Rear Axle Hub

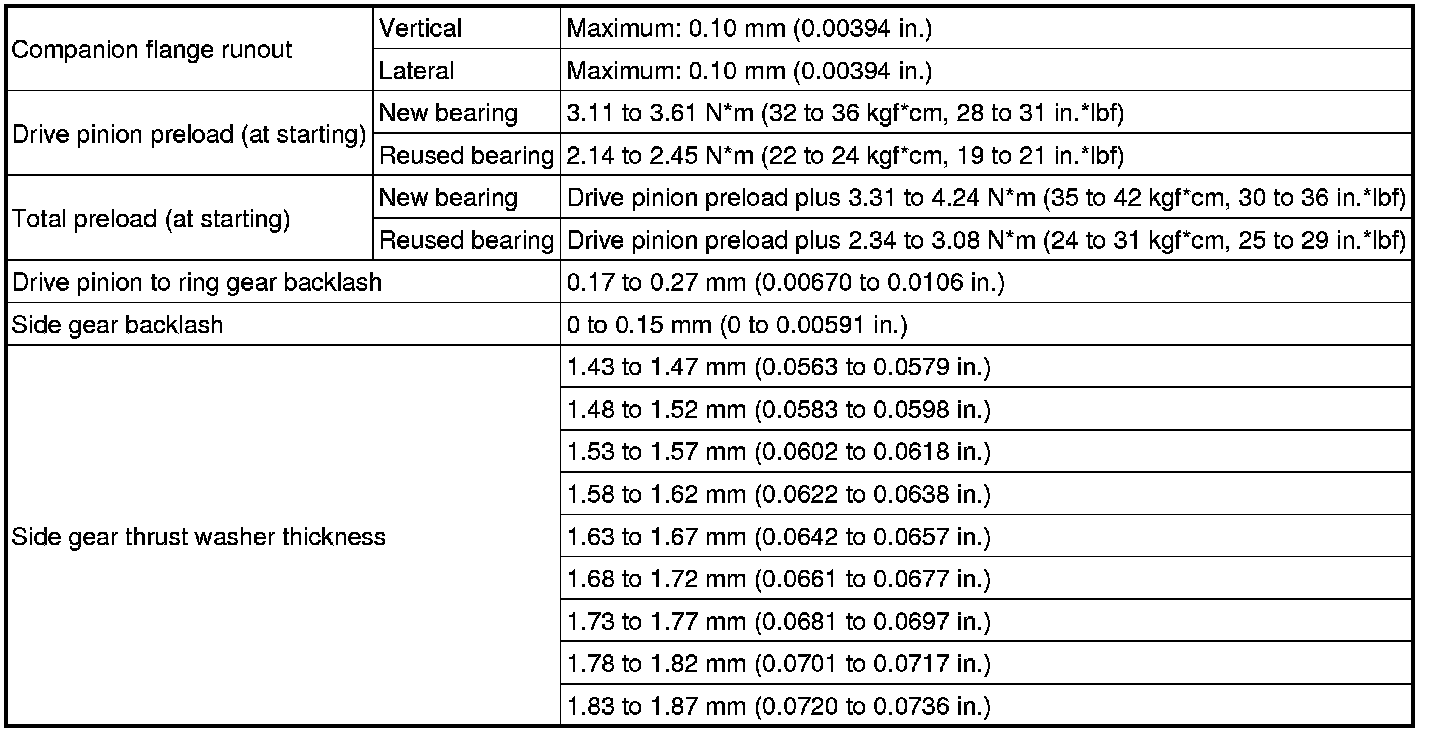

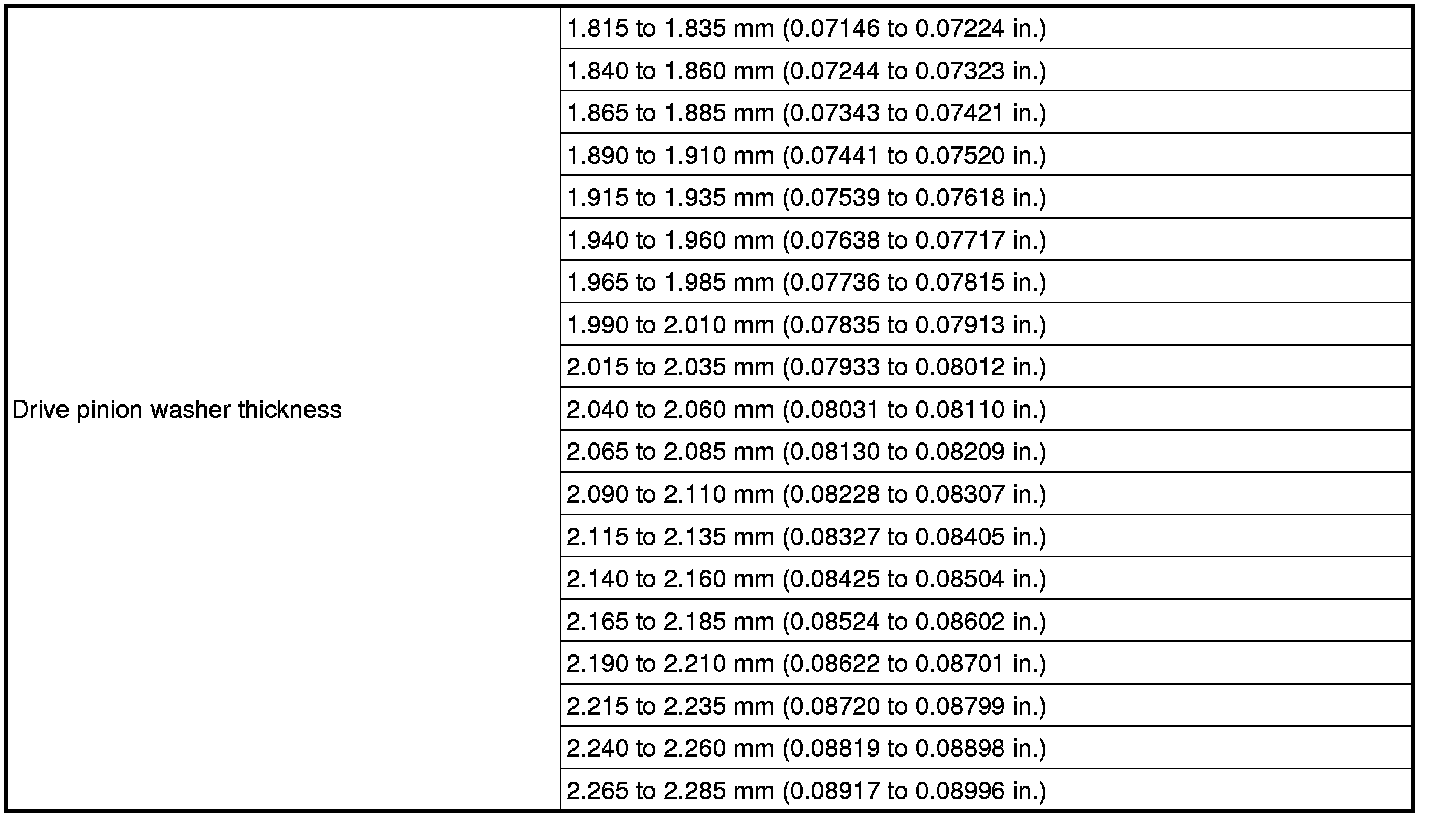

Front Differential

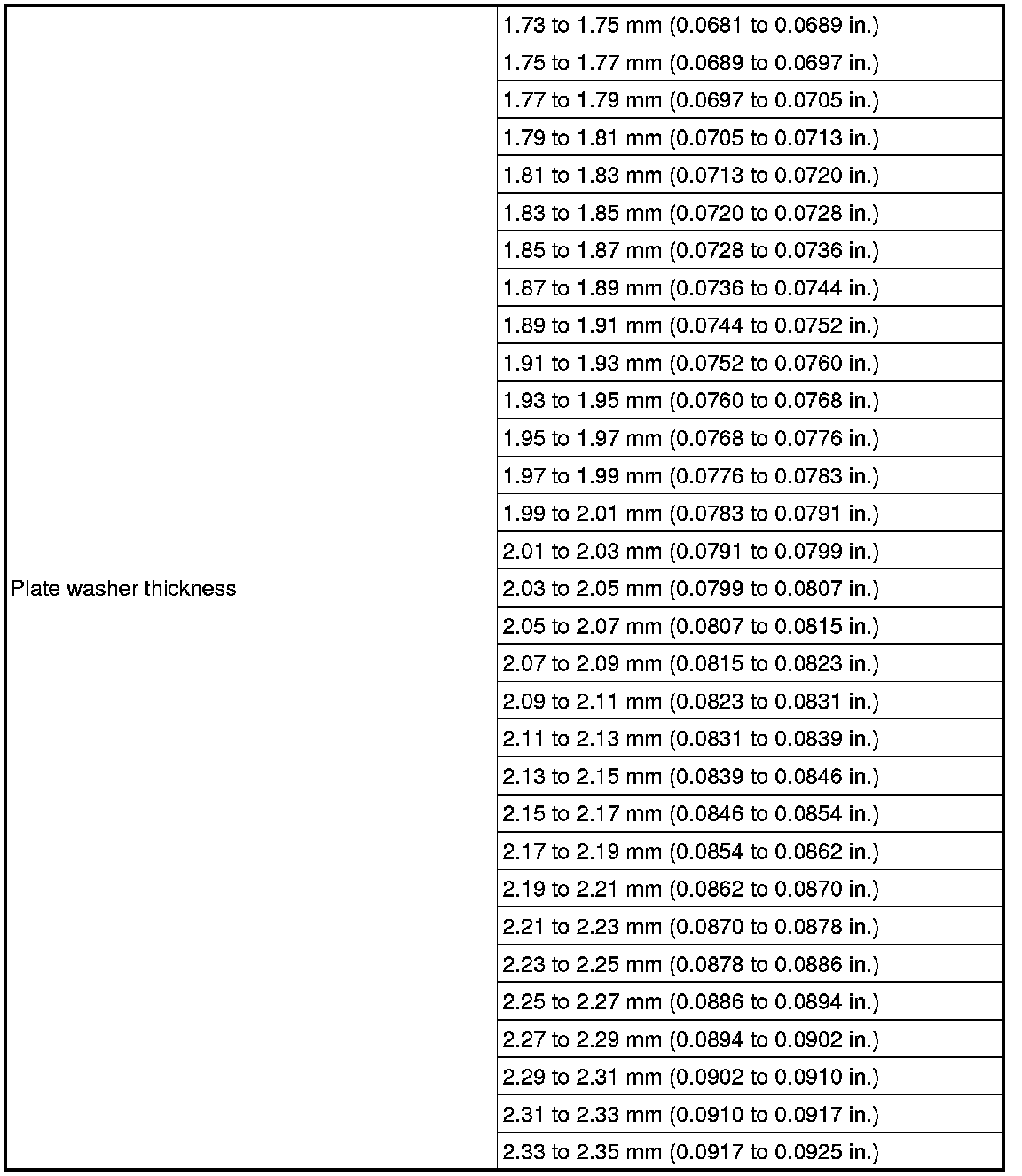

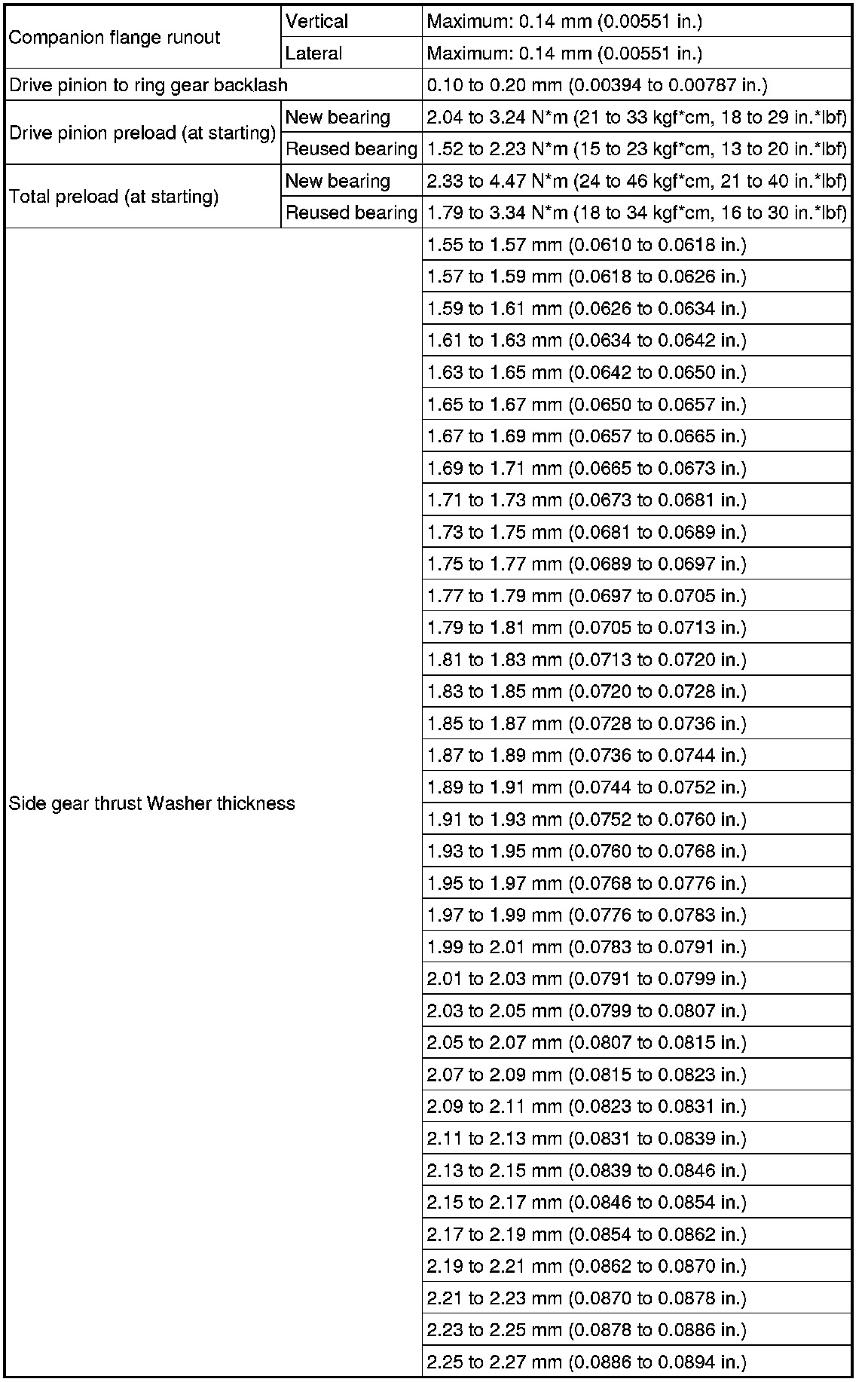

Rear Differential
