Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

Temporarily install the 26 bolts and nut.






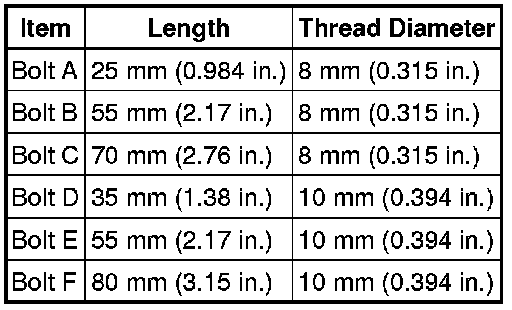

Standard Bolt






Tighten the 3 bolts in several steps in the sequence shown in the illustration.






Torque 47 Nm (479 kgf-cm, 35 ft-lbf)


Temporarily install the belt tensioner with the bolt and 6 mm hexagon bolt.






Tighten the 8 bolts labeled 4 to 11 in several steps in the sequence shown in the illustration.






Torque 47 Nm (479 kgf-cm, 35 ft-lbf)

Tighten the 23 bolts and nut labeled 12 to 34 in several steps in the sequence shown in the illustration.







Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
