Removal

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
When disconnecting the cable some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE LOWER NO. 2 STEERING WHEEL COVER Removal

4. REMOVE LOWER NO. 3 STEERING WHEEL COVER Removal

5. REMOVE STEERING PAD Removal

6. REMOVE CRUISE CONTROL MAIN SWITCH

(a) Disconnect the connector.





(b) Remove the 2 screws.

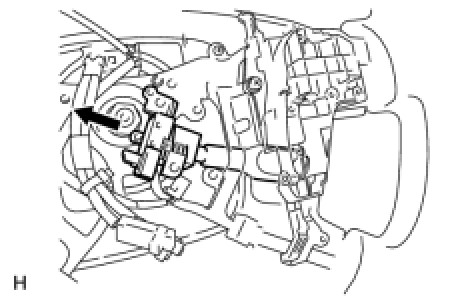

(c) Remove the switch, as shown in the illustration.
