4WD Control ECU Communication Stop Mode
NETWORKING: CAN COMMUNICATION SYSTEM: 4WD Control ECU Communication Stop Mode
- 4WD Control ECU Communication Stop Mode

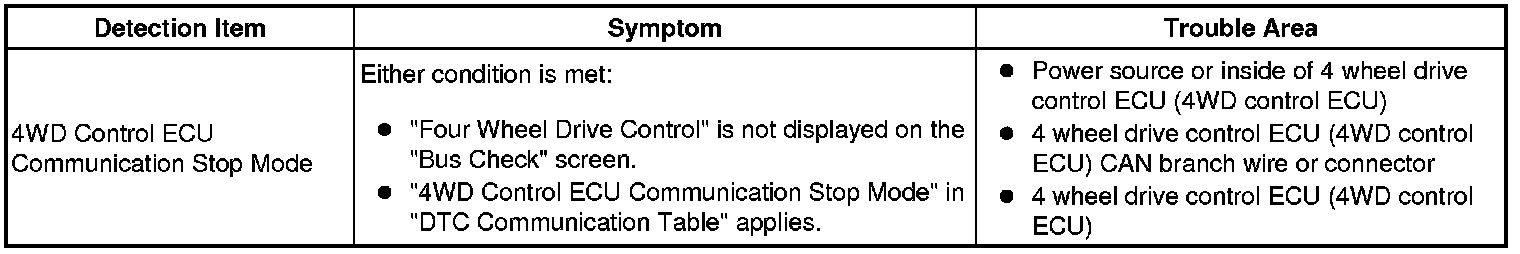

DESCRIPTION
* Fro vehicles with an 4WD.

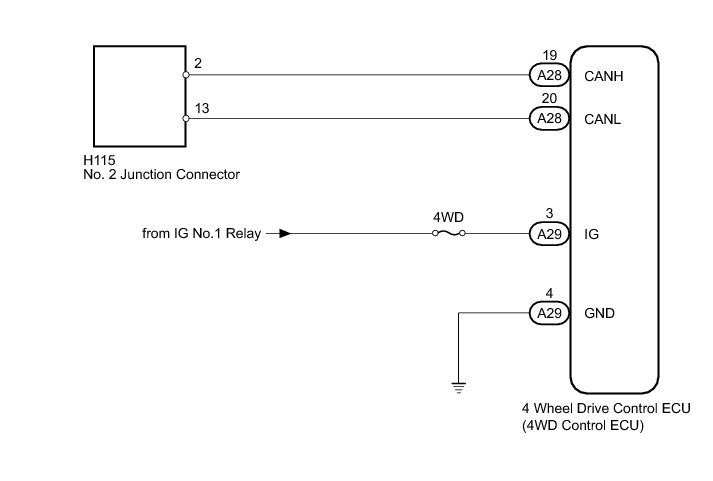

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
HINT
Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.
NEXT -- Continue to next step.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(a) Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
NEXT -- Continue to next step.
3. CHECK FOR OPEN IN CAN BUS WIRE (4WD CONTROL ECU CAN BRANCH WIRE)
(a) Disconnect the A28 4 wheel drive control ECU (4WD control ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- REPAIR OR REPLACE 4WD CONTROL ECU CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (4WD CONTROL ECU - BATTERY AND BODY GROUND)
(a) Connect the cable to the negative (-) battery terminal.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
(b) Disconnect the A29 4 wheel drive control ECU (4WD control ECU) connector.
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Text in Illustration
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE 4 WHEEL DRIVE CONTROL ECU (4WD CONTROL ECU) Removal
