Electrical Specifications

SPECIFICATIONS: 3UR-FE ENGINE CONTROL: SERVICE DATA

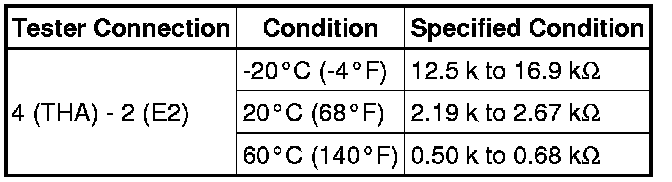

MAF meter:

Camshaft timing oil control valve:

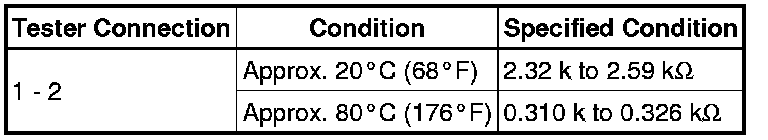

Engine coolant temperature sensor:

Throttle W/motor body:

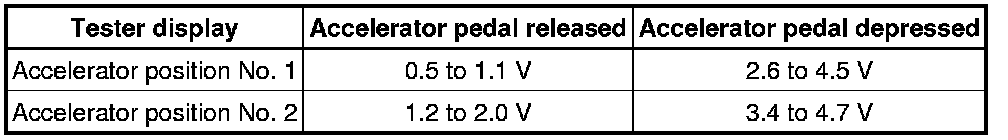

Accelerator pedal:

Knock sensor:

Ignition relay No. 2:

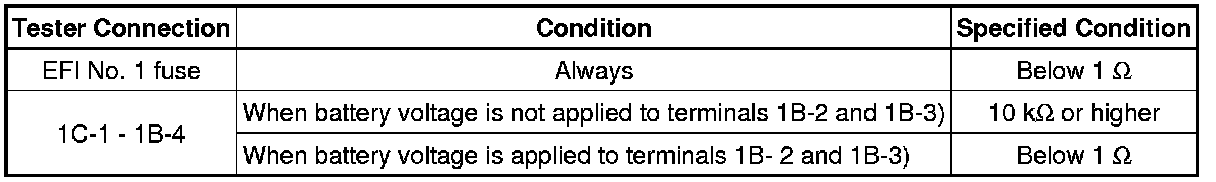

EFI relay:

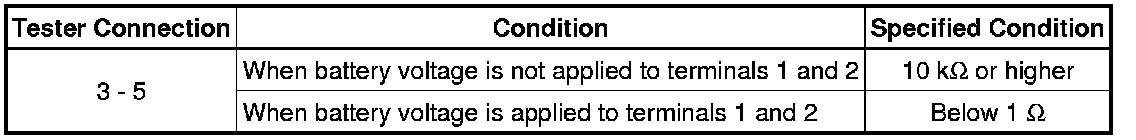

Circuit opening relay:

Fuel pump relay:

Air fuel ration sensor (for Bank 1 sensor 1):

Air fuel ration sensor (for Bank 2 sensor 1):

Heated oxygen sensor (for Bank 1 sensor 2):

Heated oxygen sensor (for Bank 2 sensor 2):

A/F sensor heater relay:

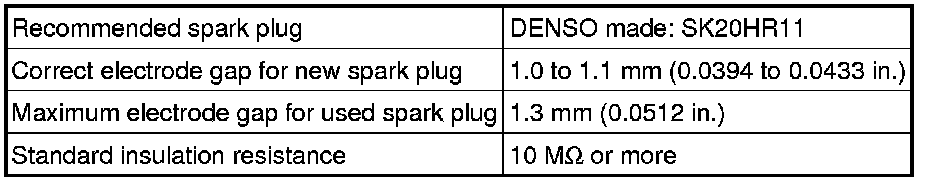

Spark Plug
