Drive/Propeller Shaft





PREPARATION: DRIVE SHAFT / PROPELLER SHAFT: LUBRICANT

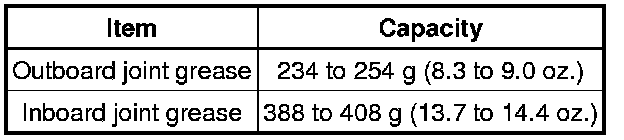

FRONT DRIVE SHAFT ASSEMBLY

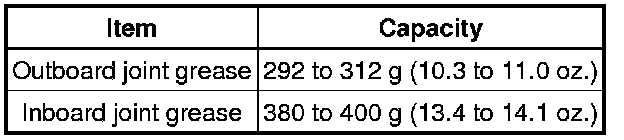

REAR DRIVE SHAFT ASSEMBLY
