Suspension

Wheel Alignment Specifications (Unloaded vehicle)

Front

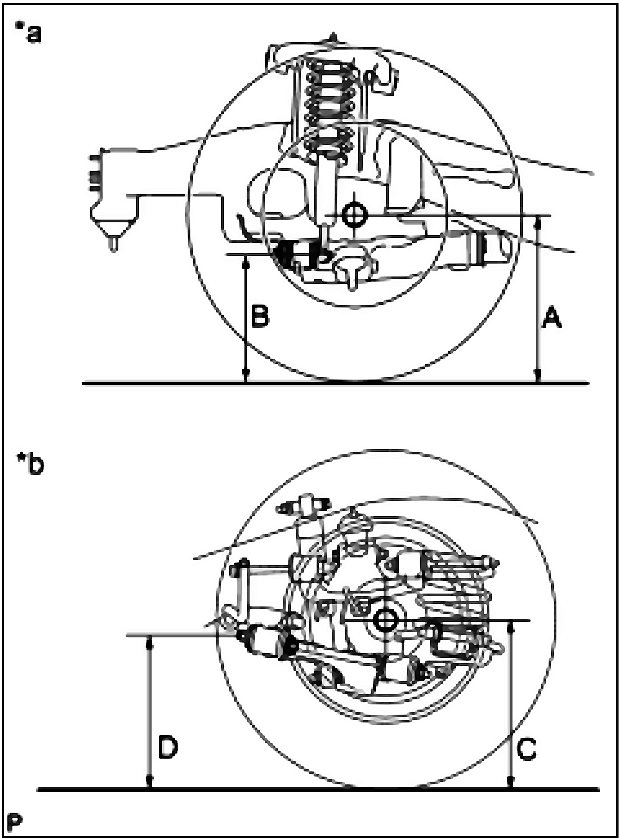

Measuring Points:
A: Ground clearance of the front drive shaft center

B: Ground clearance of the front adjusting cam bolt center

C: Ground clearance of the rear drive shaft center

D: Ground clearance of the rear lower arm No. 1 adjusting cam bolt center

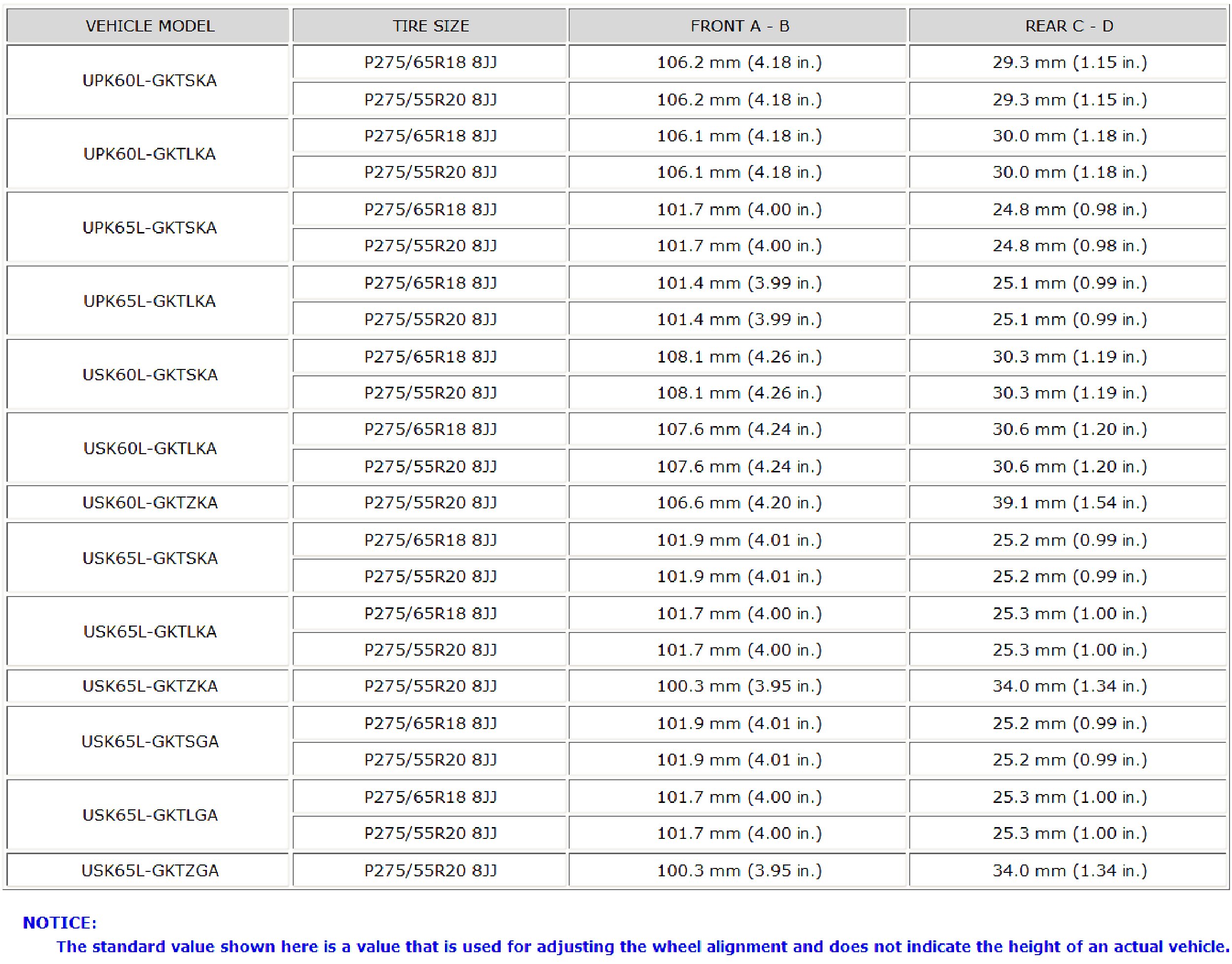

Standard Vehicle Height:

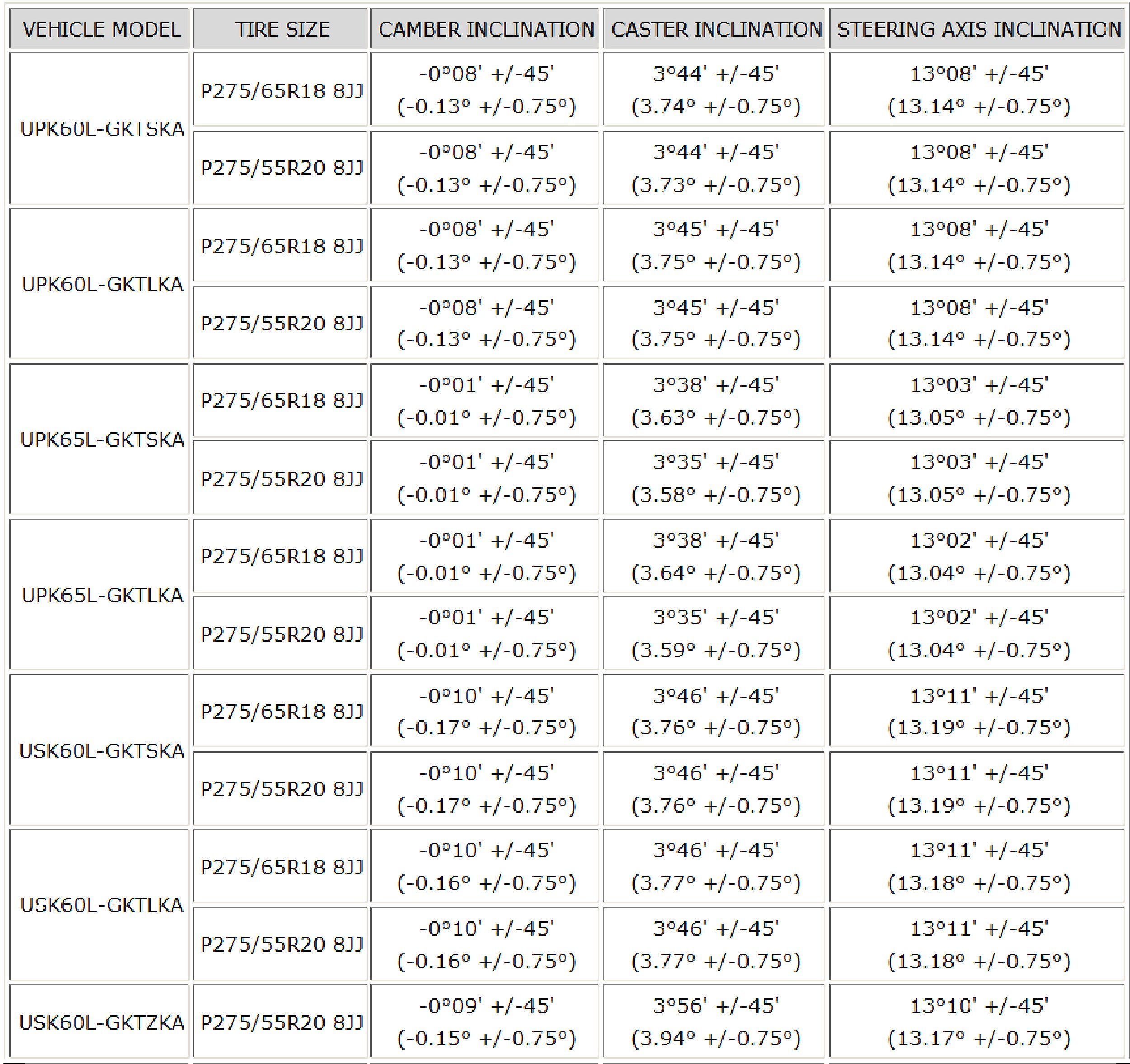

Standard Camber, Caster And Steering Axis Inclination:

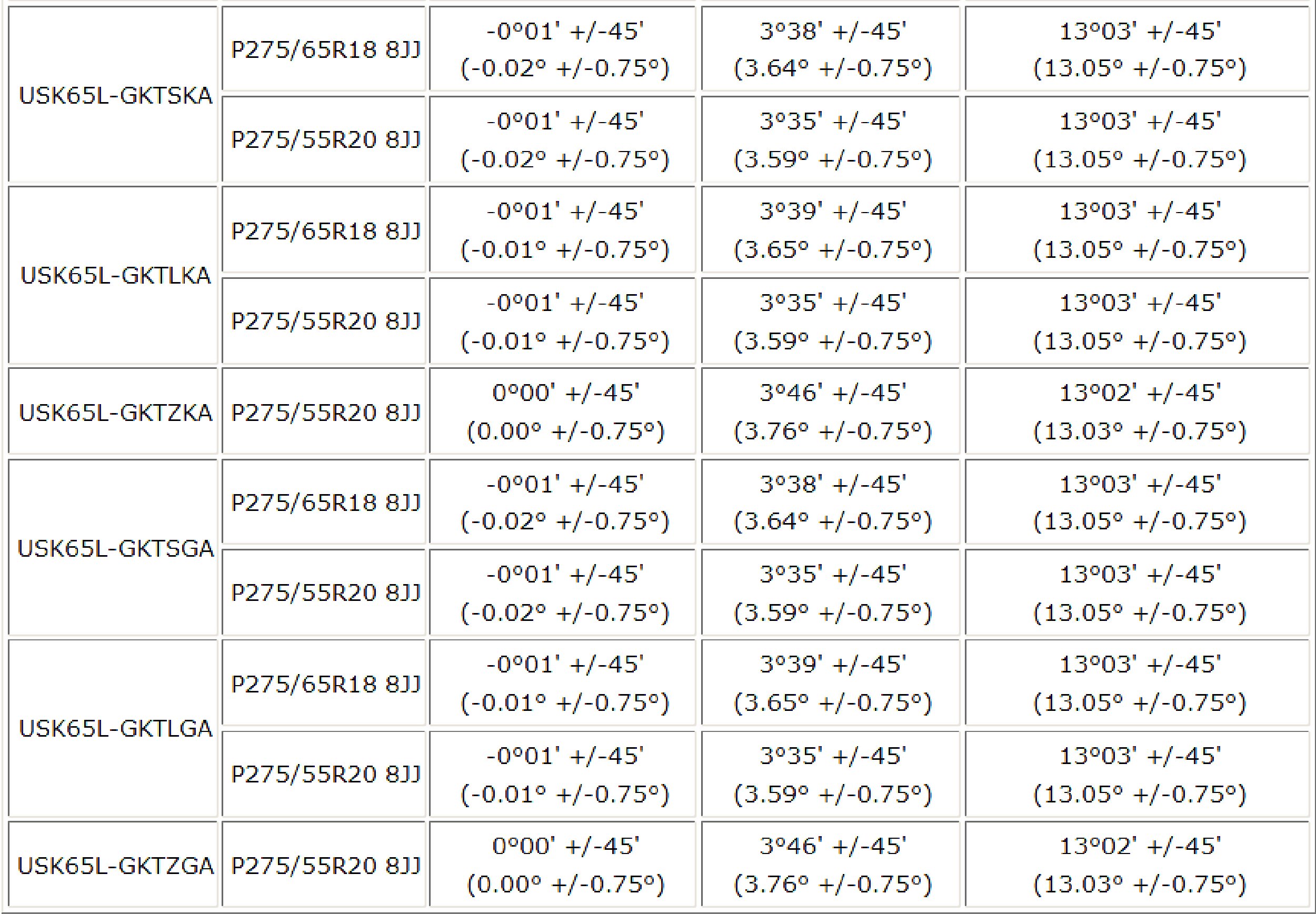

Standard Camber, Caster And Steering Axis Inclination Cont.:

Standard Camber, Caster And Steering Axis Inclination Cont.:

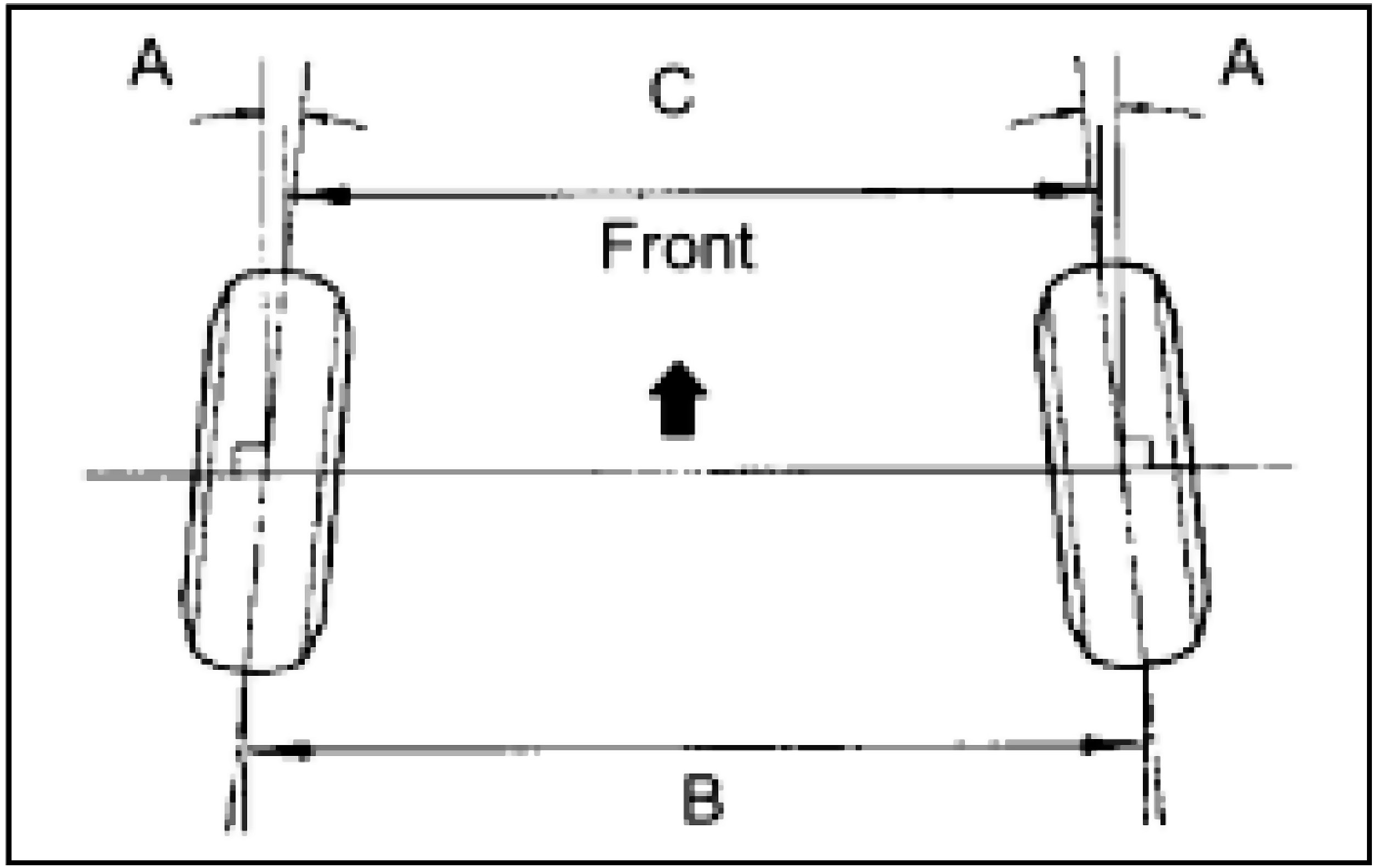

Measuring Points - Standard Toe-in:

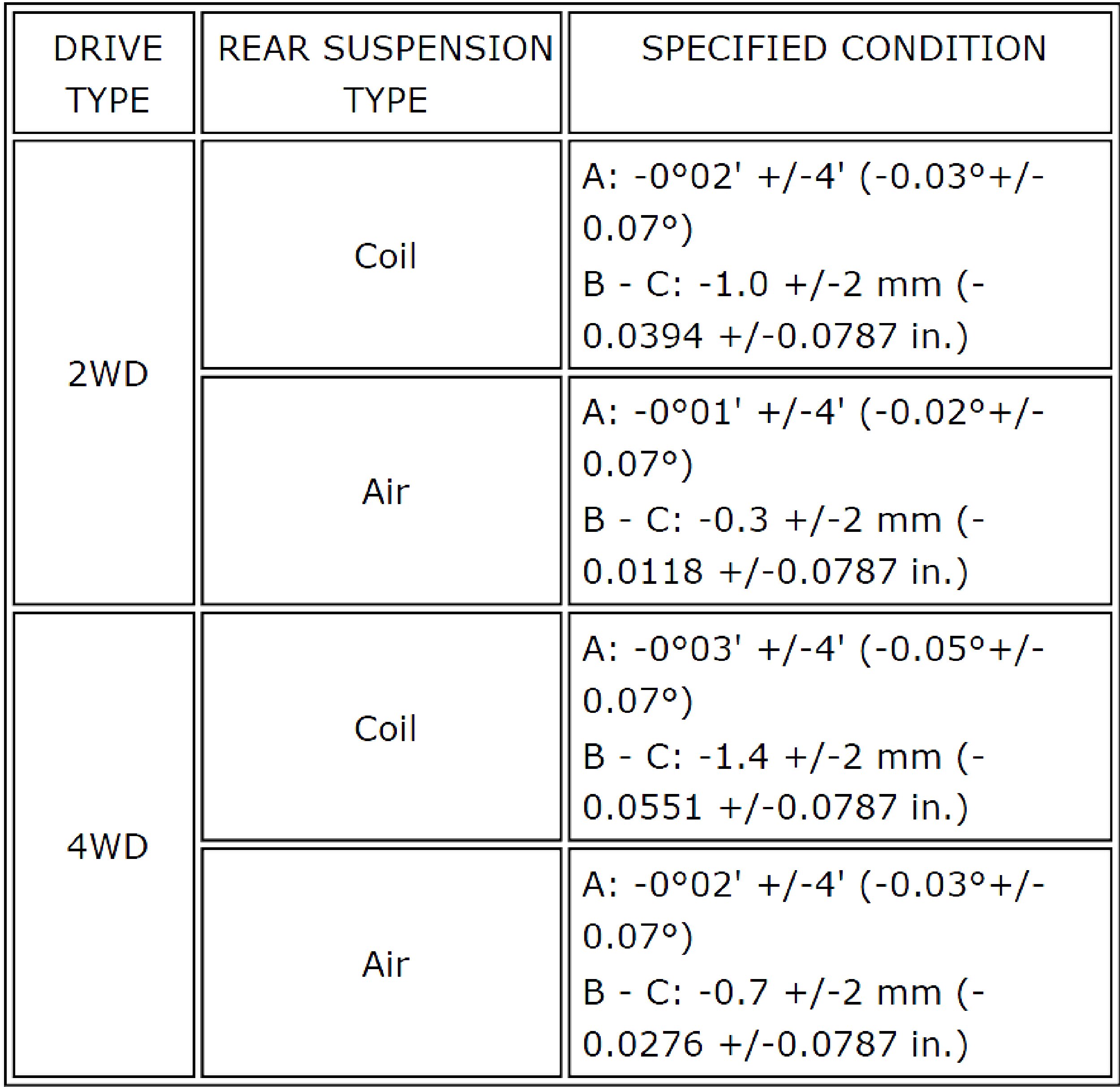

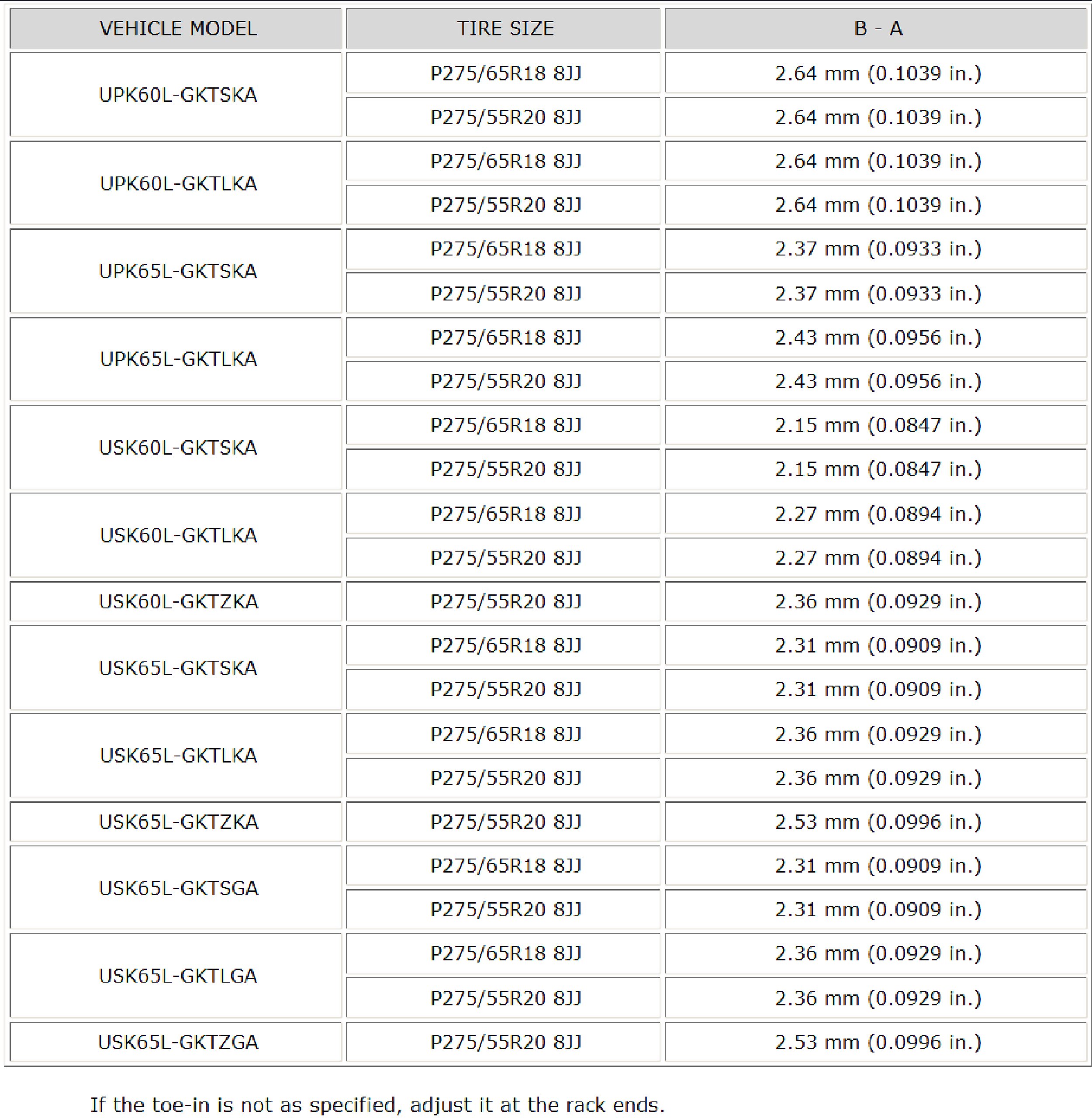

Standard Toe-in:

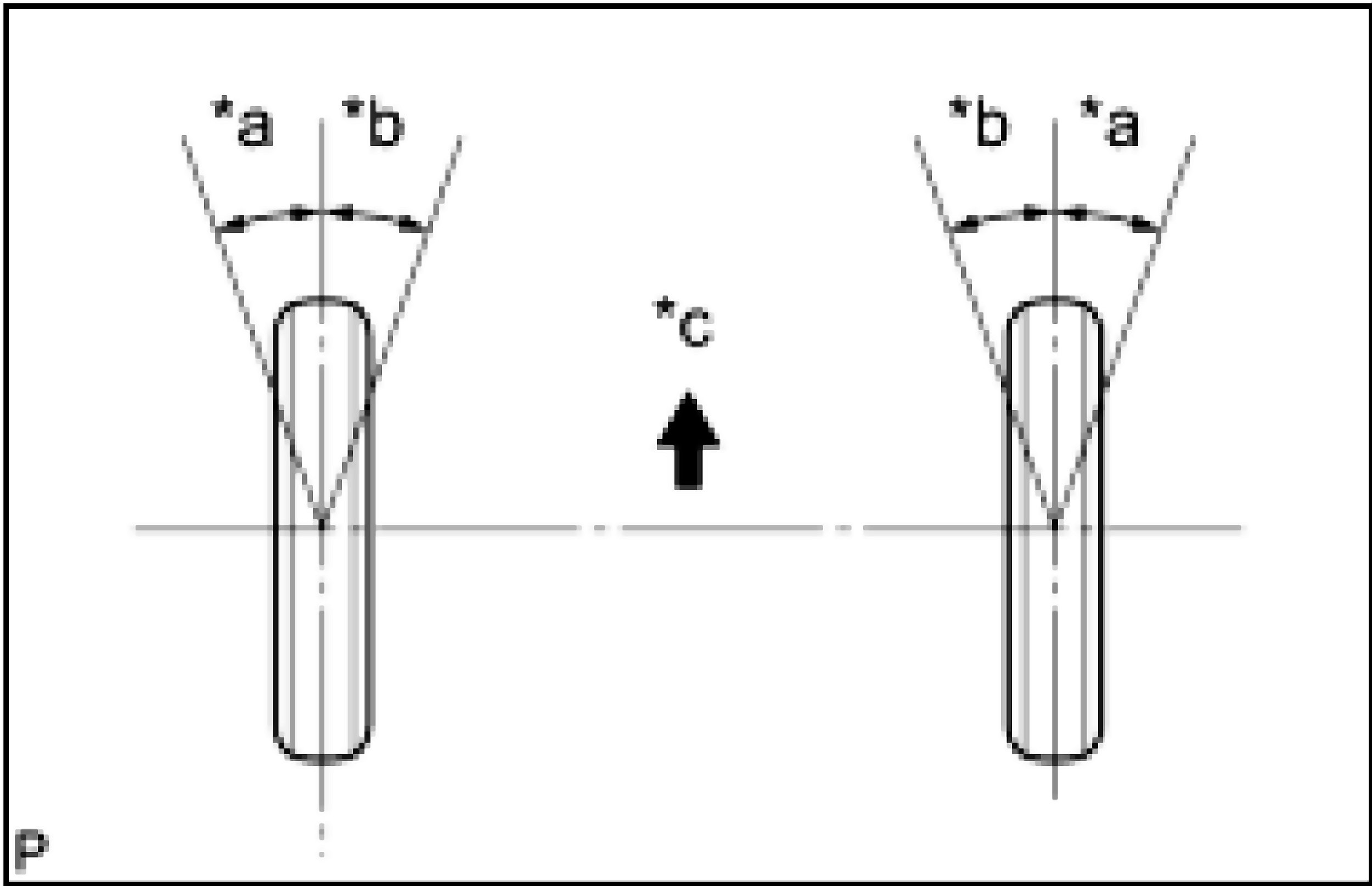

Measuring Points - Standard Wheel Angle:

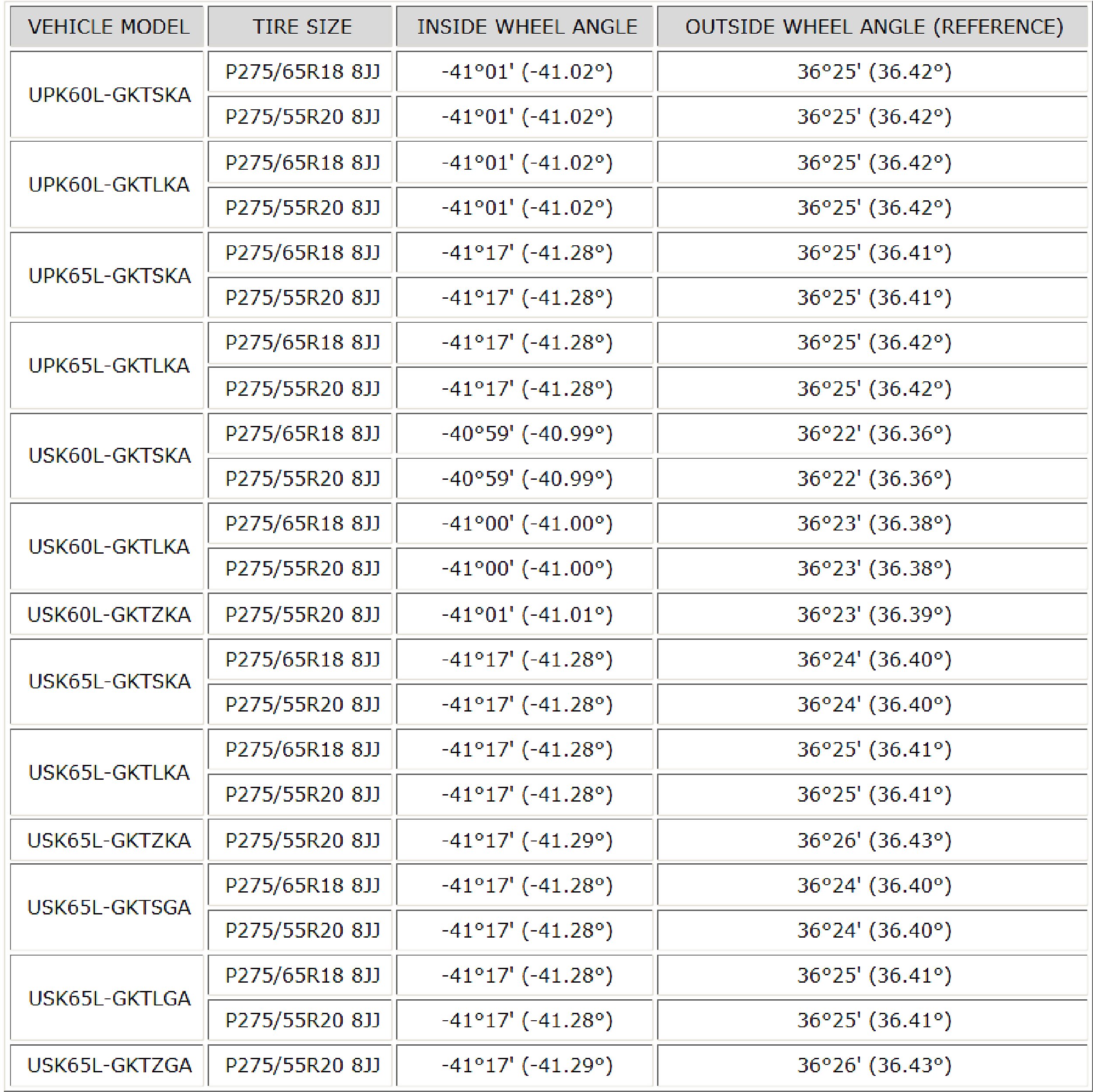

Standard Wheel Angle:

Rear

Standard Camber Inclination:

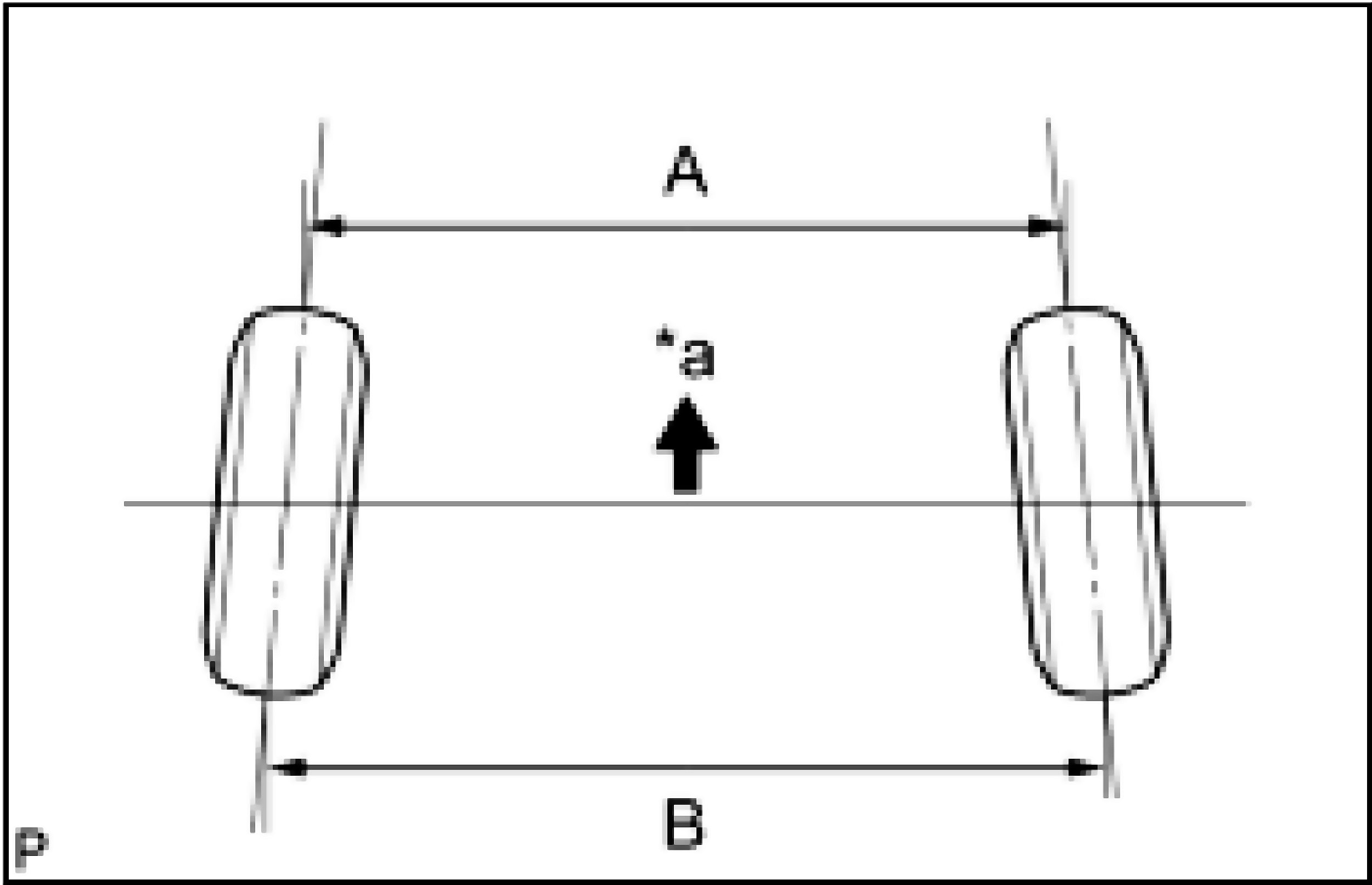

Measuring Points - Standard Toe-in:

Standard Toe-in:
