Service Data

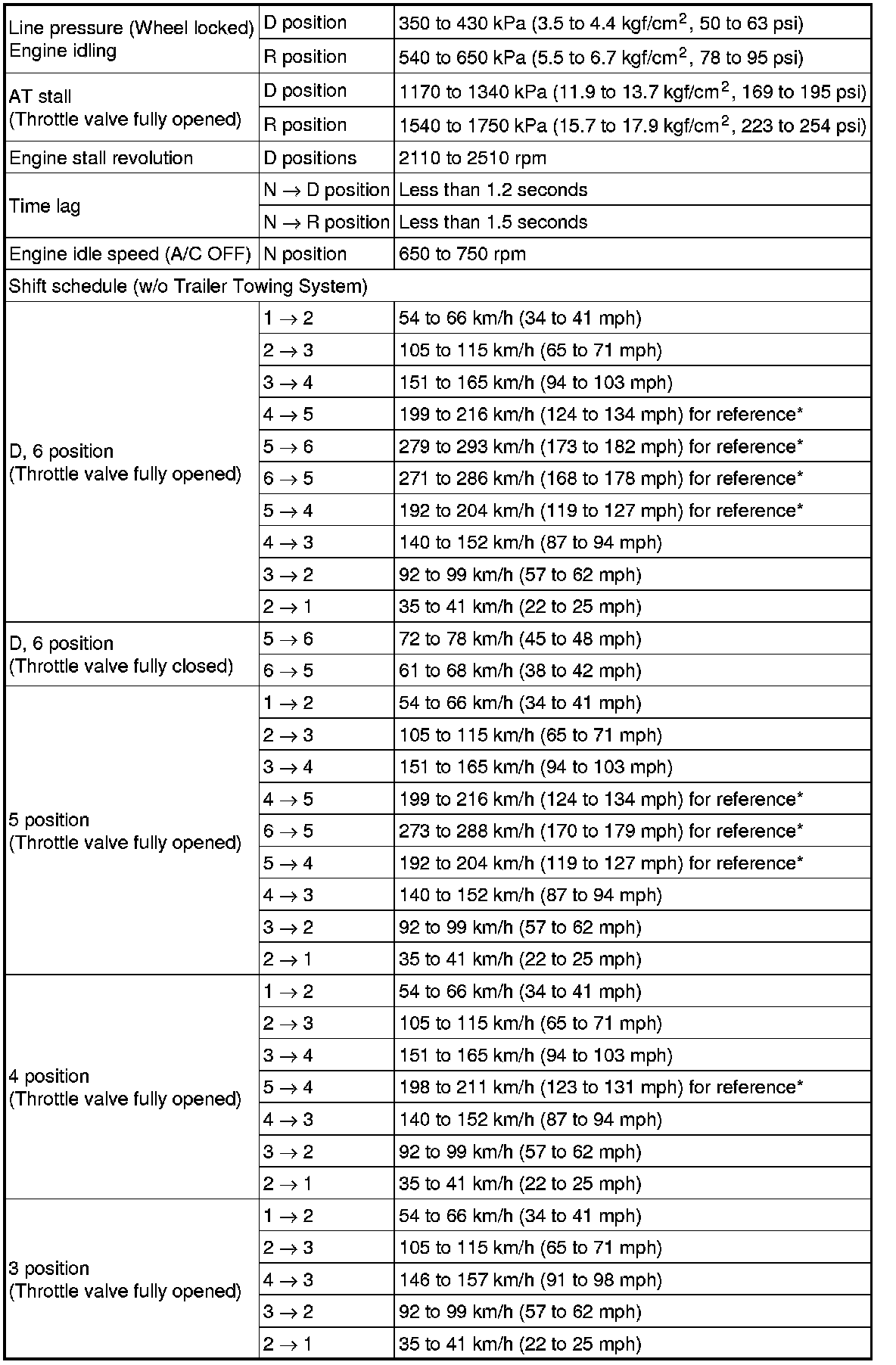

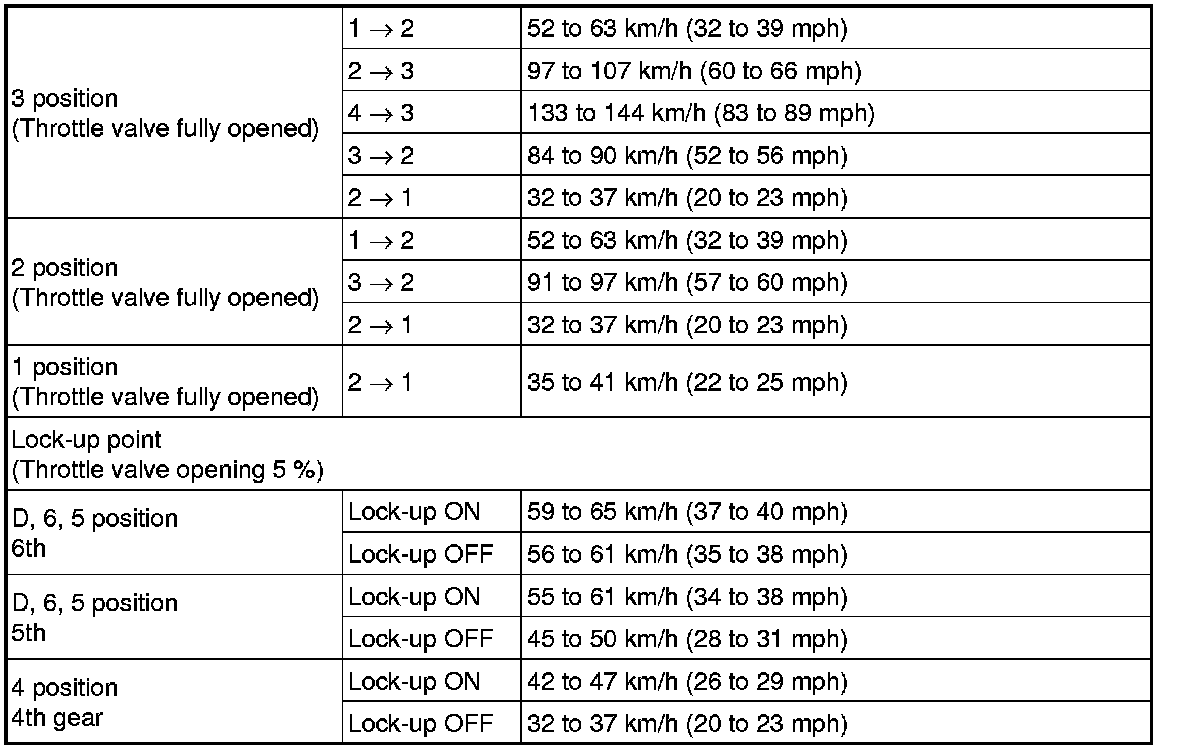

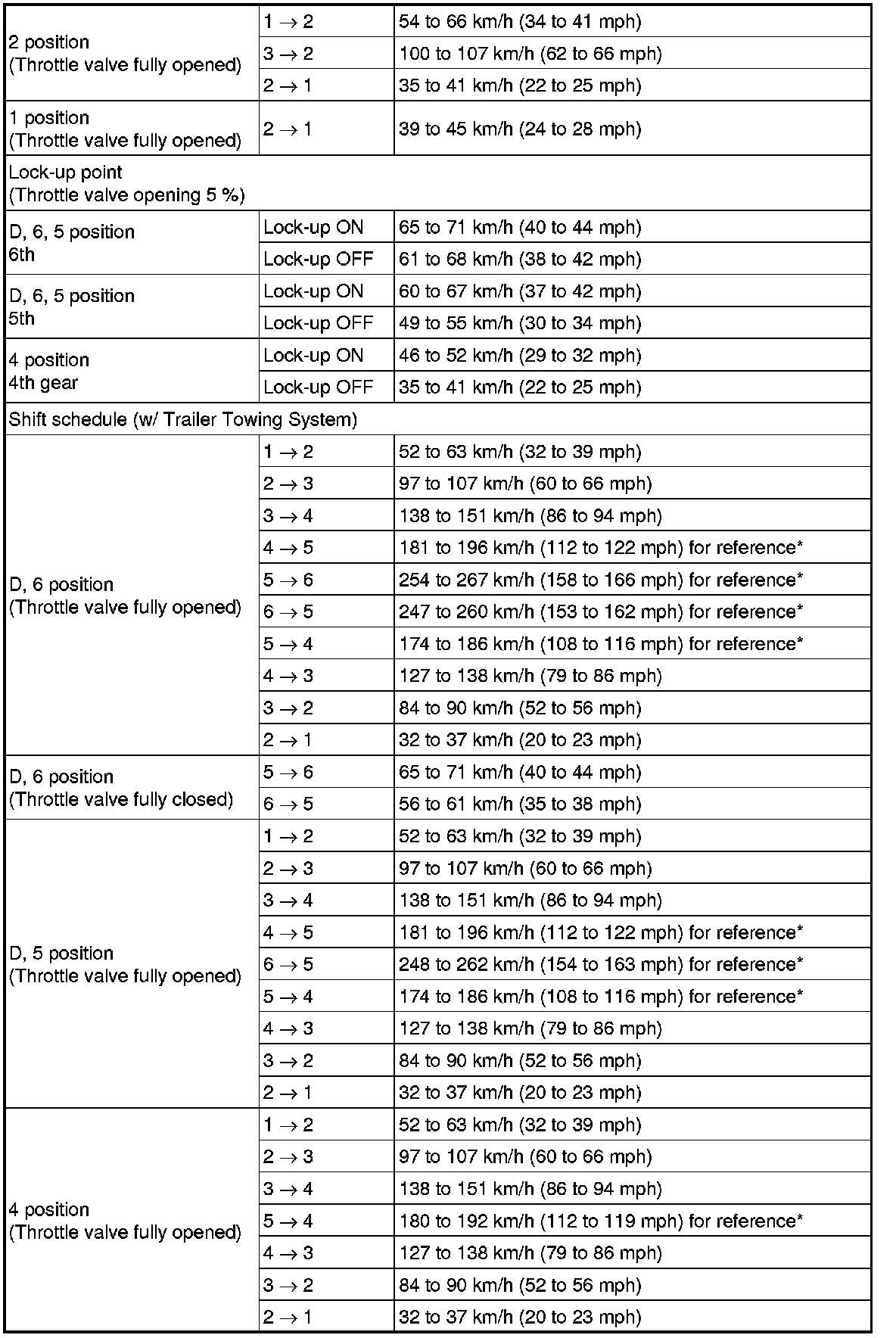

SPECIFICATIONS: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA














*: Maximum speed is 180 km/h (112 mph), so this value is for reference.

CAUTION:
Strictly observe speed limits when performing the confirmation.

TORQUE CONVERTER CLUTCH AND DRIVE PLATE

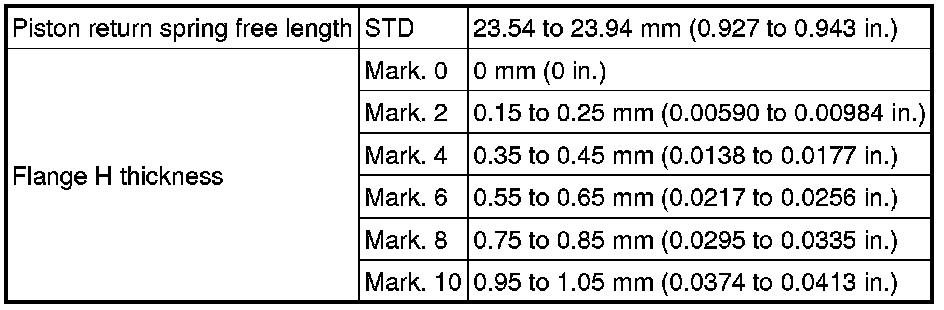

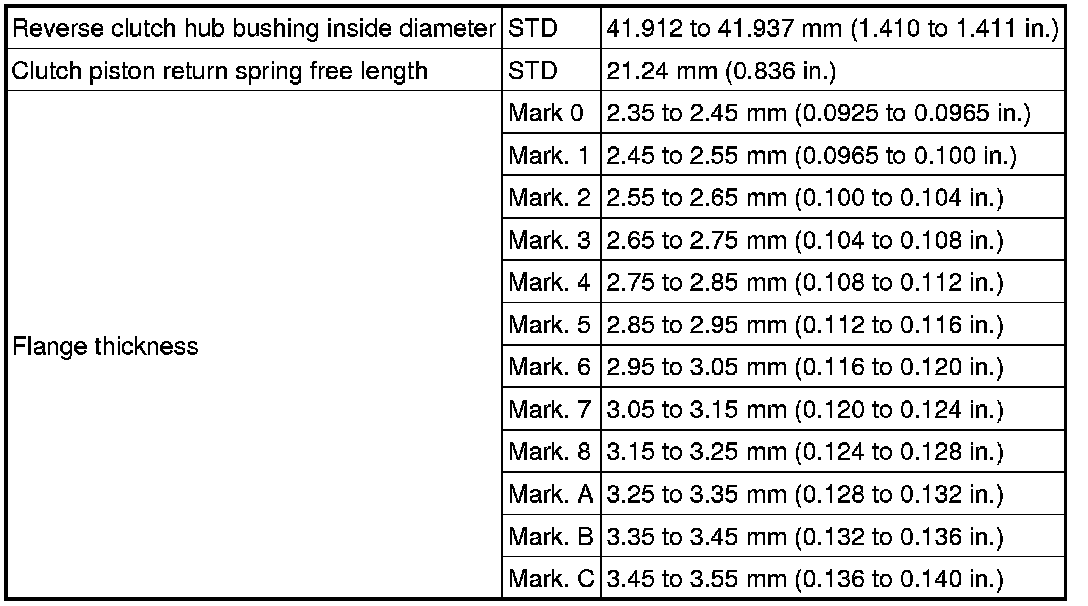

REVERSE CLUTCH

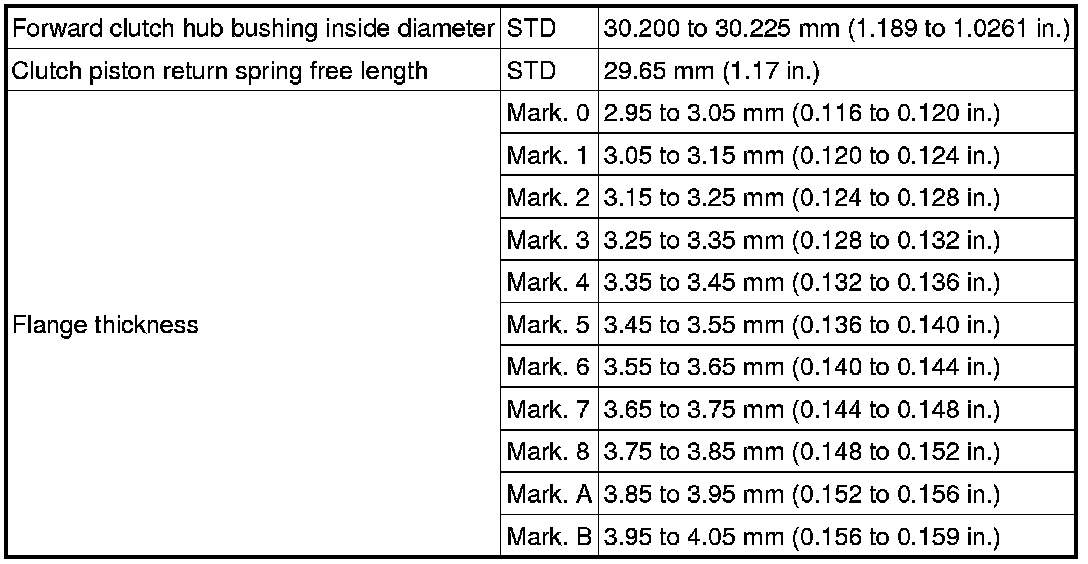

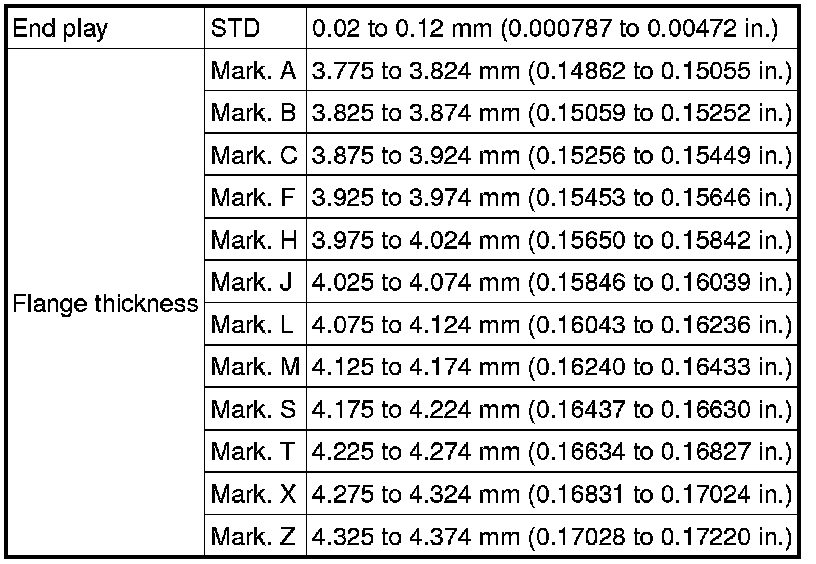

FORWARD CLUTCH






DIRECT CLUTCH






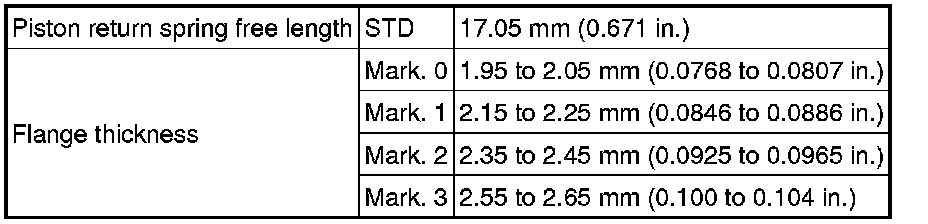

NO. 3 BRAKE






FRONT PLANETARY GEAR






NO. 1 BRAKE






NO. 2 BRAKE






CENTER PLANETARY GEAR






INTERMEDIATE SHAFT






REAR PLANETARY GEAR






NO. 4 BRAKE






OUTPUT SHAFT BEARING






ACCUMULATOR

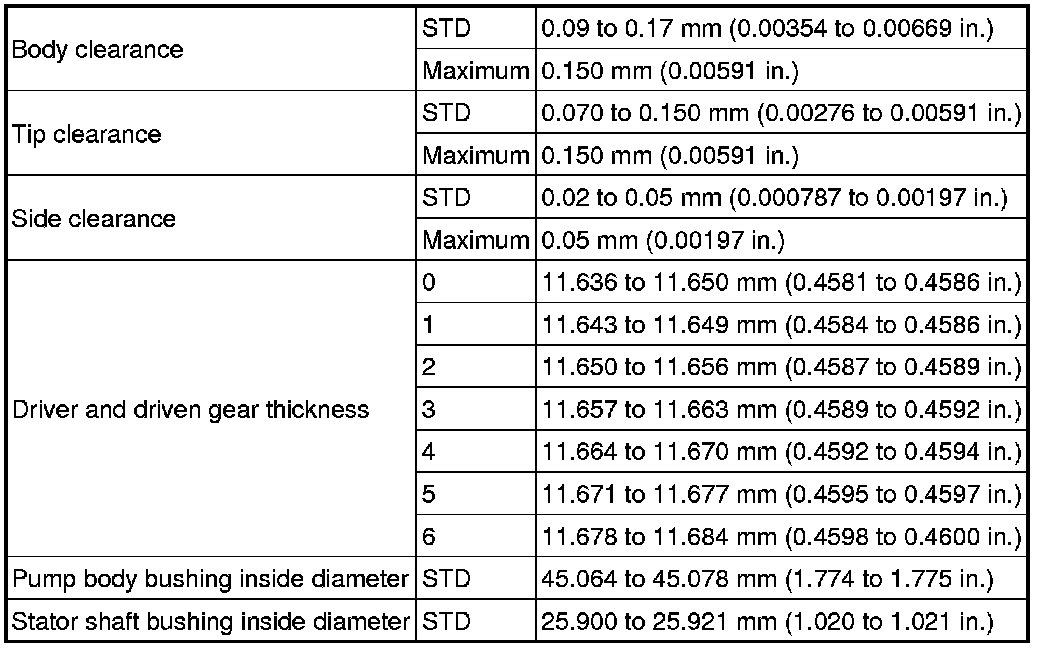

OIL PUMP
