Service Data





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

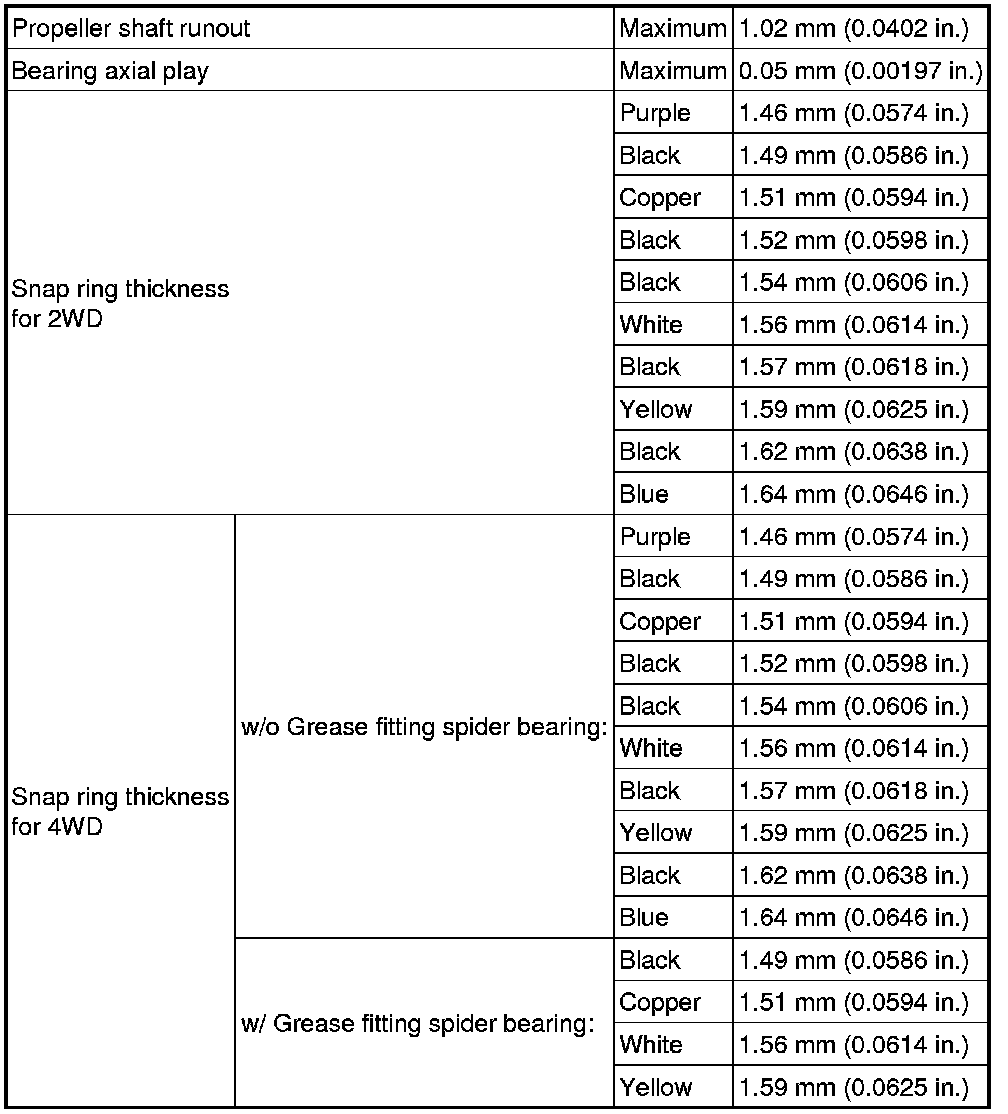

Front Drive Shaft






Rear Drive Shaft

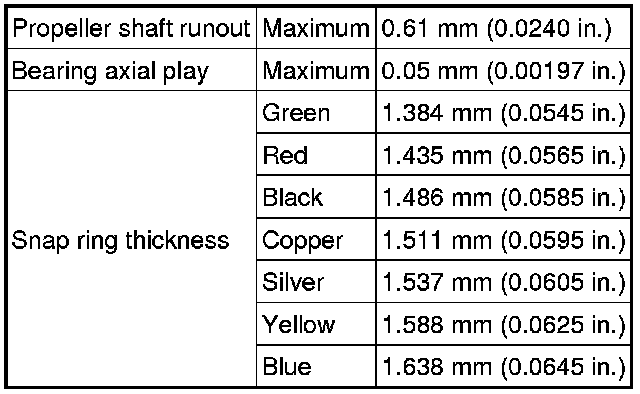

Front Propeller Shaft






Rear Propeller Shaft
