Procedures
2GR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT 1.

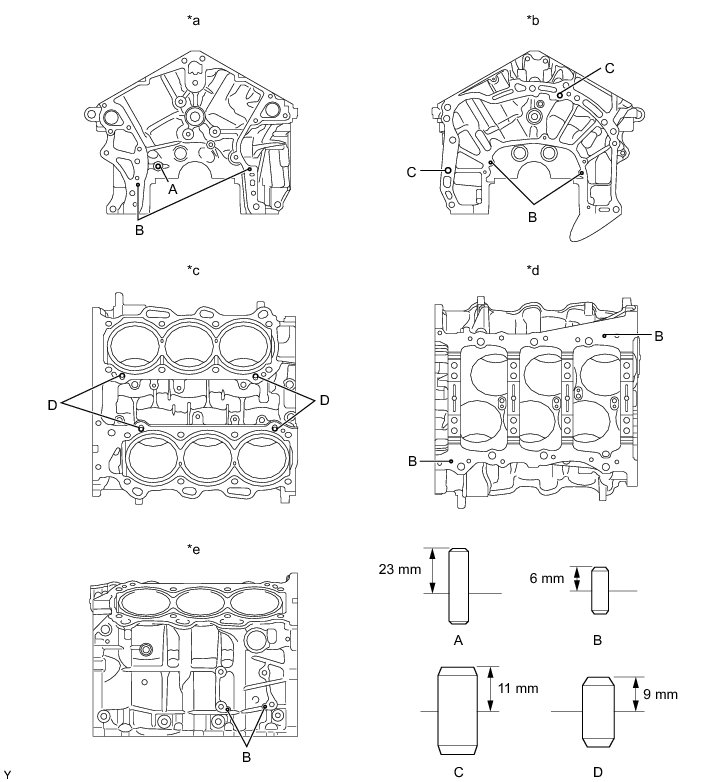

REPLACE STRAIGHT PIN
(a)
Using a plastic hammer, tap in new straight pins to the cylinder block.

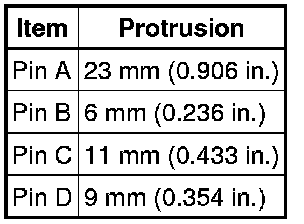

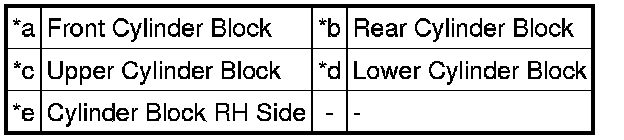

Text in Illustration Standard Protrusion: 2.

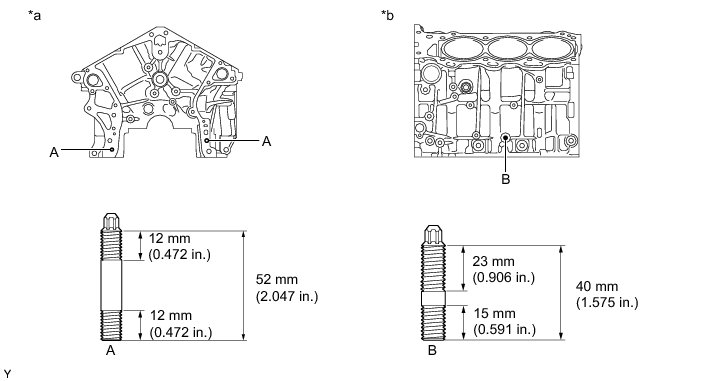

REPLACE STUD BOLT
(a)
Using an E8 and E10 "TORX" sockets, install the stud bolts.
Text in Illustration Bolt A - Torque : 10 Nm (102 kgf-cm, 7 ft-lbf) Bolt B - Torque : 17 Nm (173 kgf-cm, 13 ft-lbf)
