Control Module: Locations

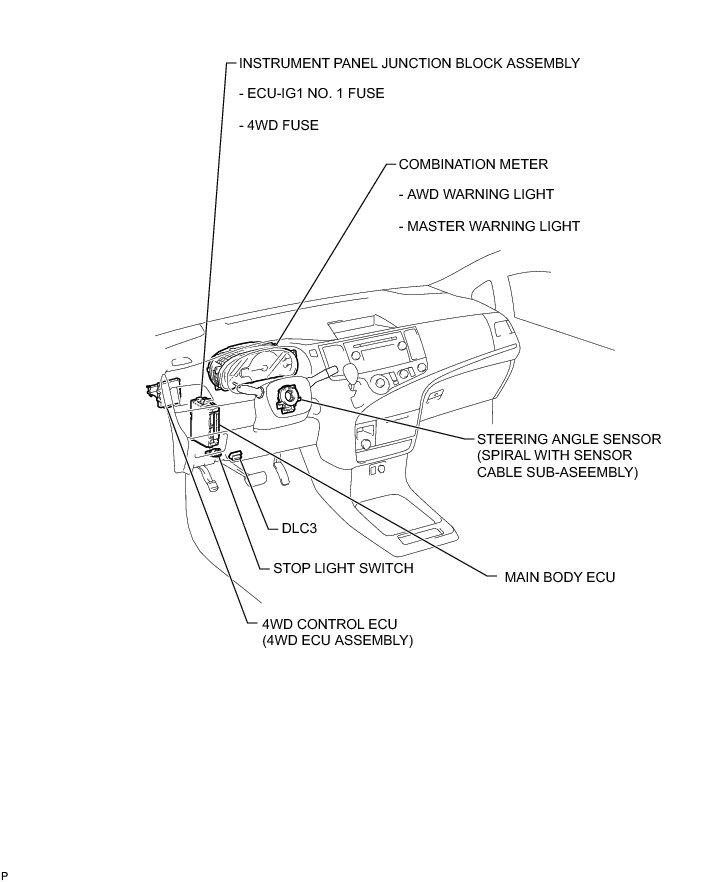

MF1A TRANSFER / 4WD / AWD: ACTIVE TORQUE CONTROL 4WD SYSTEM: PARTS LOCATION
24 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH:
