Installation

U660F AUTOMATIC TRANSMISSION / TRANSAXLE: ATF TEMPERATURE SENSOR: INSTALLATION

1. INSTALL ATF TEMPERATURE SENSOR (TRANSMISSION WIRE)

(a) Coat a new O-ring with ATF and install it onto the ATF temperature sensor.

(b) Coat the 4 bolts with ATF.

(c) Install the ATF temperature sensor onto the transmission valve body with the 4 bolts and wire harness clamp.





Text in Illustration

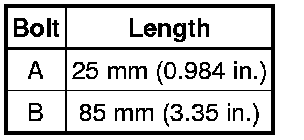

Bolt length:





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

(d) Engage the clamp and connect the transmission wire.

(e) Connect the connector.

2. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

3. INSTALL TRANSMISSION OIL CLEANER MAGNET Installation

4. INSTALL AUTOMATIC TRANSAXLE OIL PAN GASKET Installation

5. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY Installation

6. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY Installation

7. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY

Installation
