Mechanical Specifications

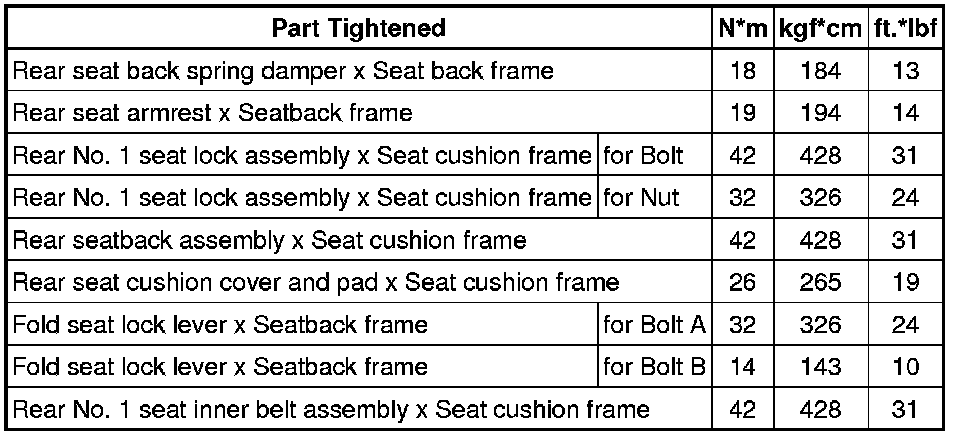

SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

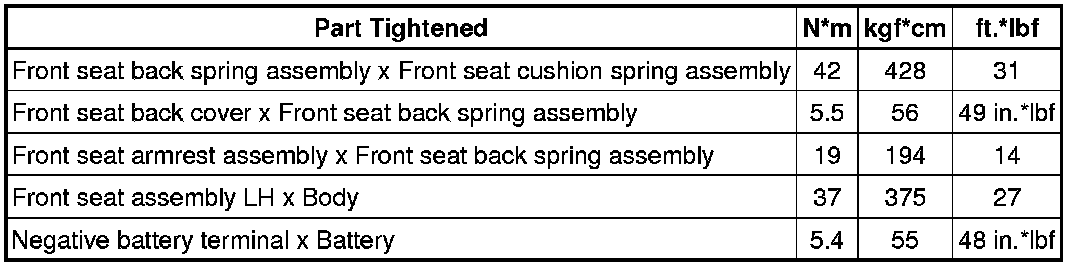

Front Seat Assembly (for Manual Seat)





Front Seat Assembly (for Power Seat)





Rear No. 1 Seat Assembly (for Auto Access Seat Type)

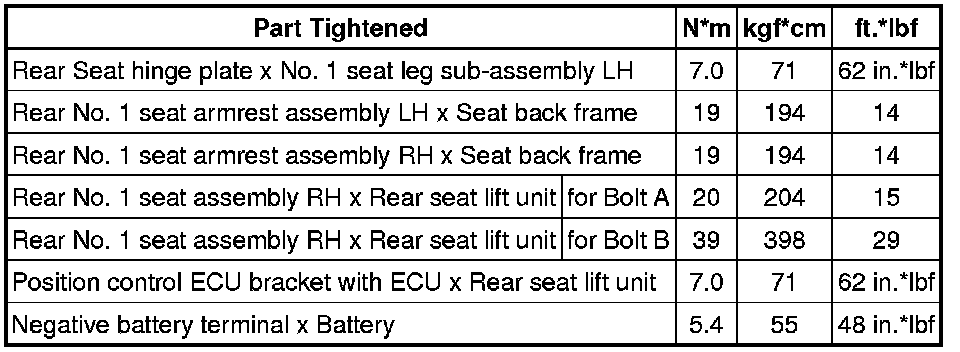

Rear No. 1 Seat Assembly (for Ottoma)

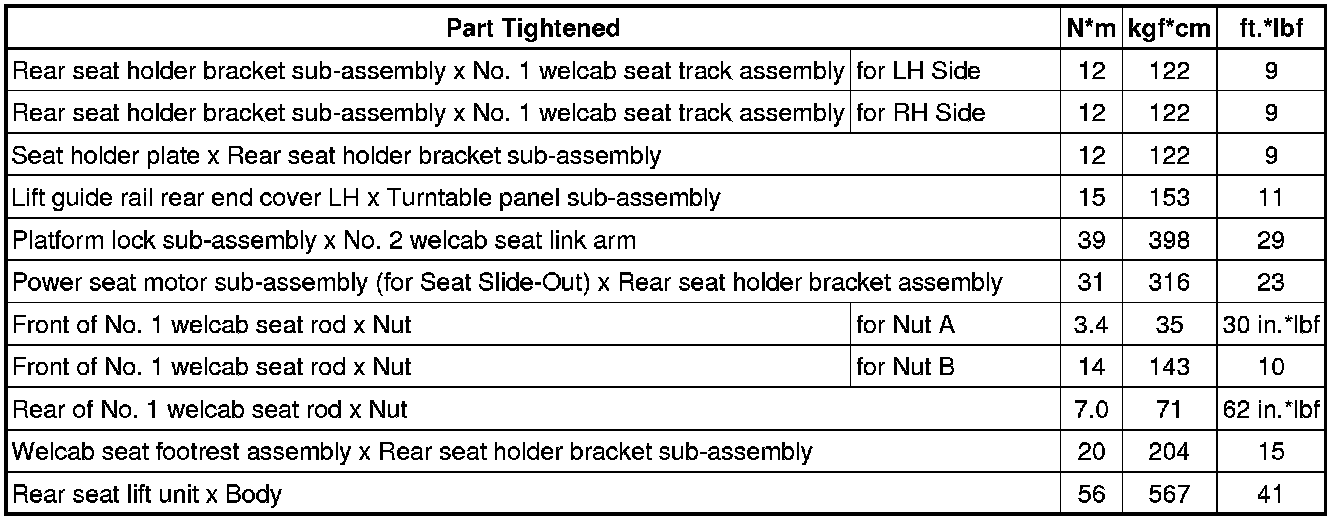

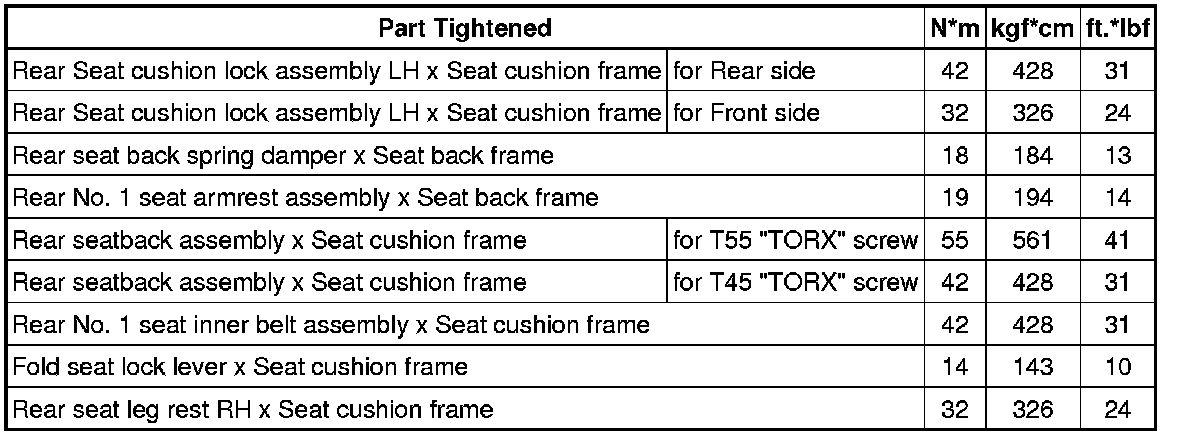

Rear No. 1 Seat Assembly (for Captain Seat Type)

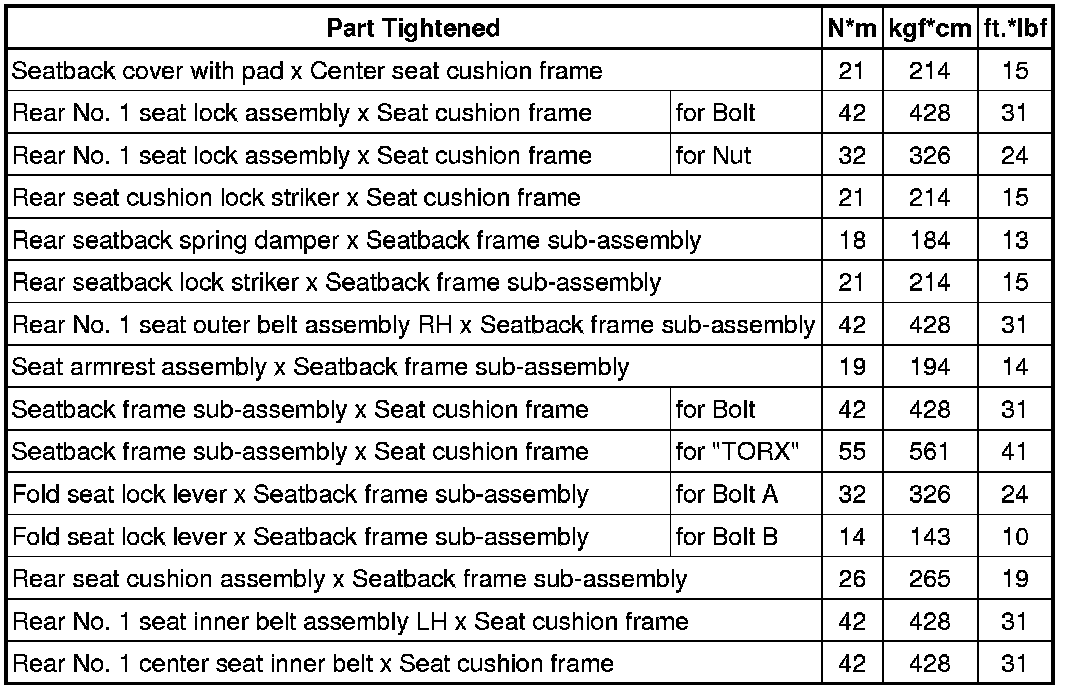

Rear No. 1 Seat Assembly (w/ Center Seat)

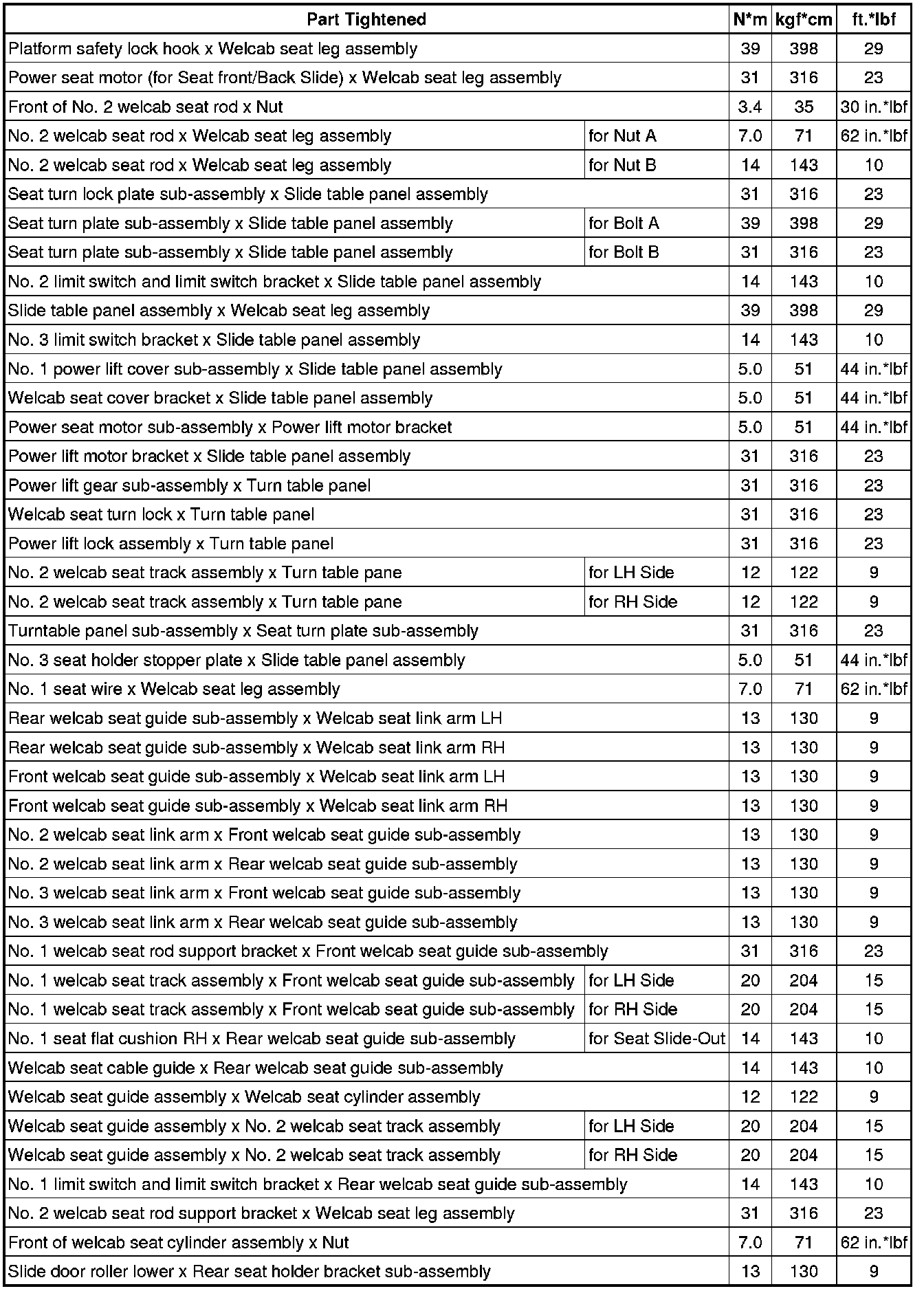

Auto Access Seat Unit

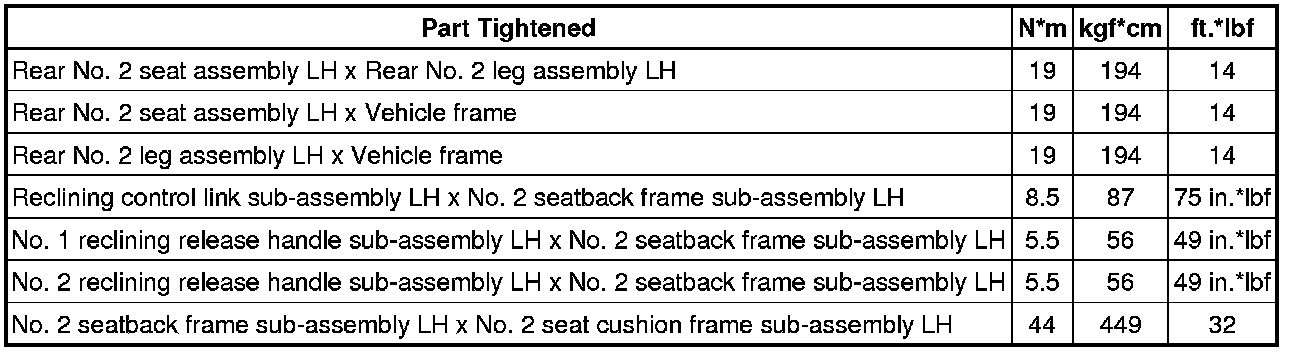

Rear No. 2 Seat Assembly (for Manual Seat Type LH Side)

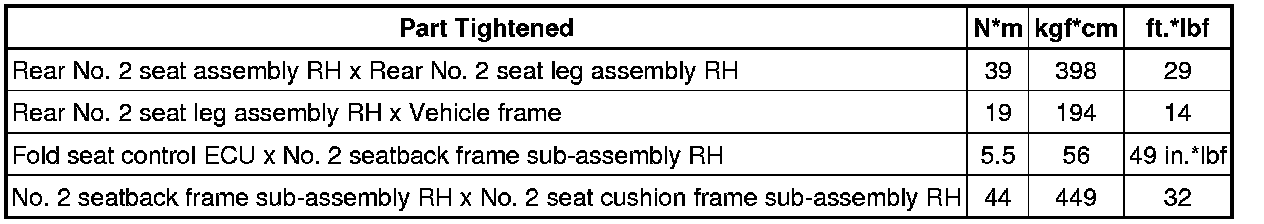

Rear No. 2 Seat Assembly (for Manual Seat Type RH Side)





Rear No. 2 Seat Assembly (for Power Seat Type LH Side)





Rear No. 2 Seat Assembly (for Power Seat Type RH Side)





Power Seat Control ECU (for Rear No. 2 Seat)





SEAT CONTROL RECEIVER





SEAT RAIL
