Procedures
1AR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT
1. REPLACE RING PIN
NOTICE:
It is not necessary to remove the ring pin unless it is being replaced.
(a) Remove the 12 ring pins.
(b) Using a plastic-faced hammer, install 12 new ring pins.
Text in Illustration

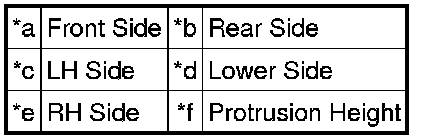

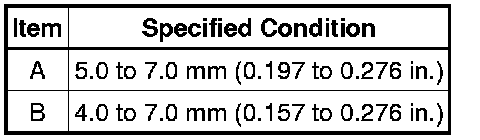

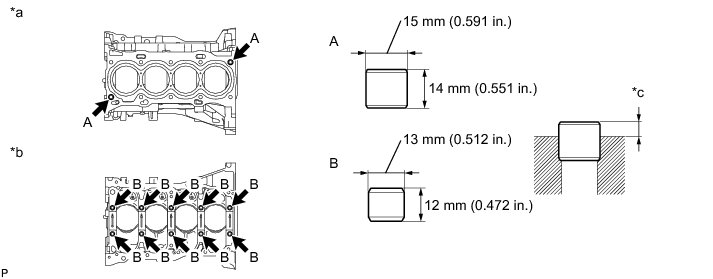

Standard Protrusion Height:
2. REPLACE STRAIGHT PIN
NOTICE:
It is not necessary to remove the straight pin unless it is being replaced.
(a) Remove the 14 straight pins.
(b) Using a plastic-faced hammer, install 14 new straight pins.

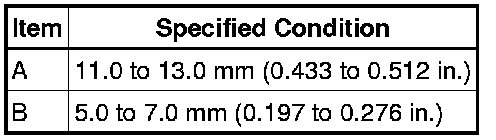

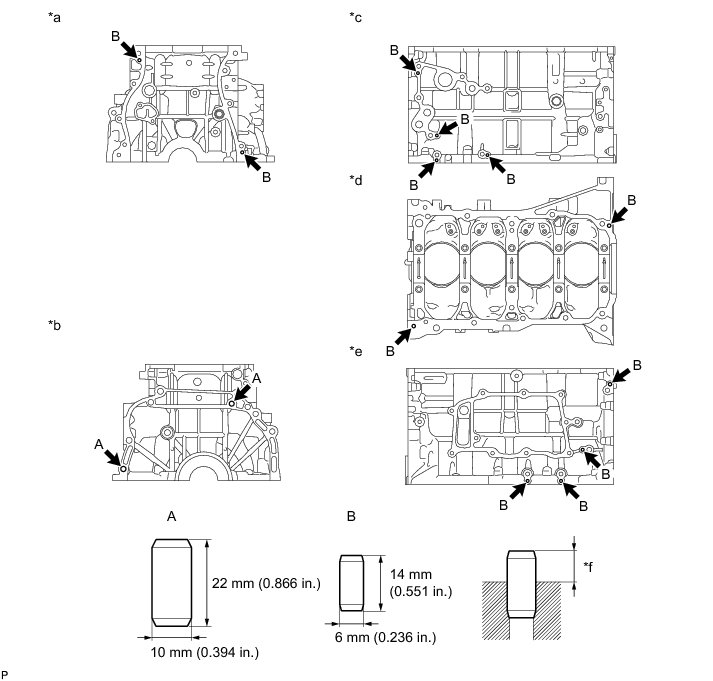

Text in Illustration
Standard Protrusion Height:
