Connector Locations

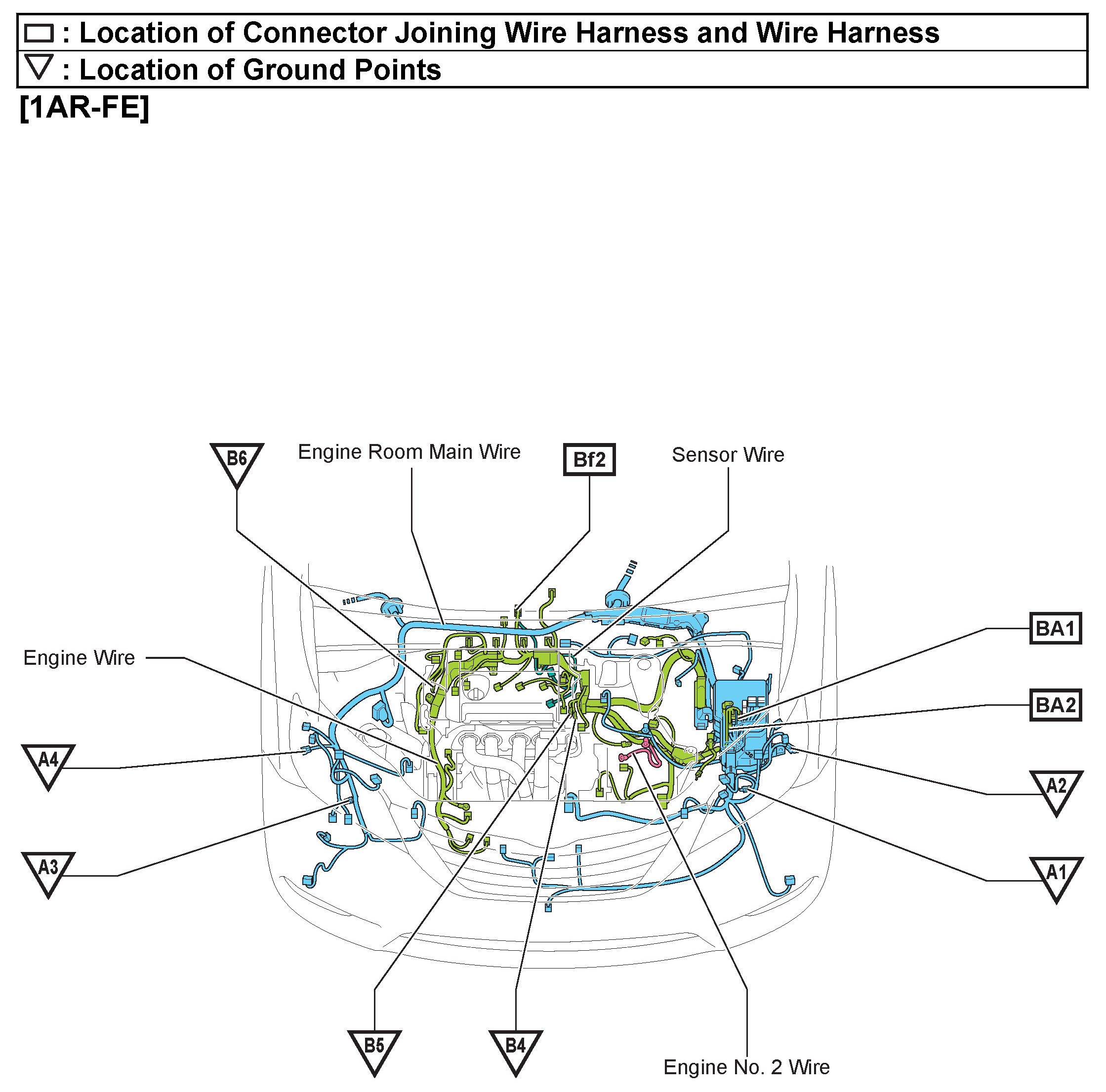

67 - A1-B6, BA1-Bf2:

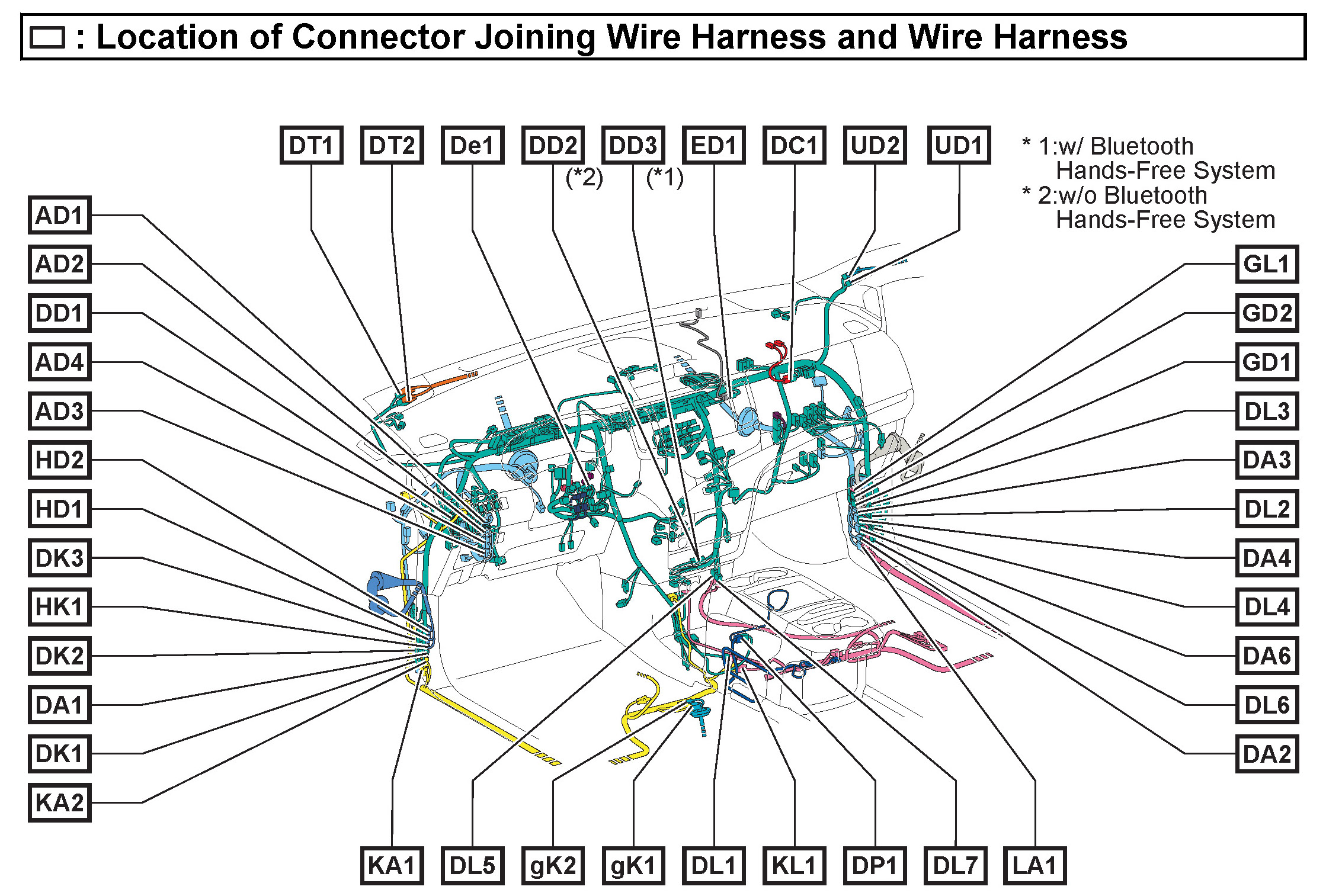

68 - AD1-UD2:

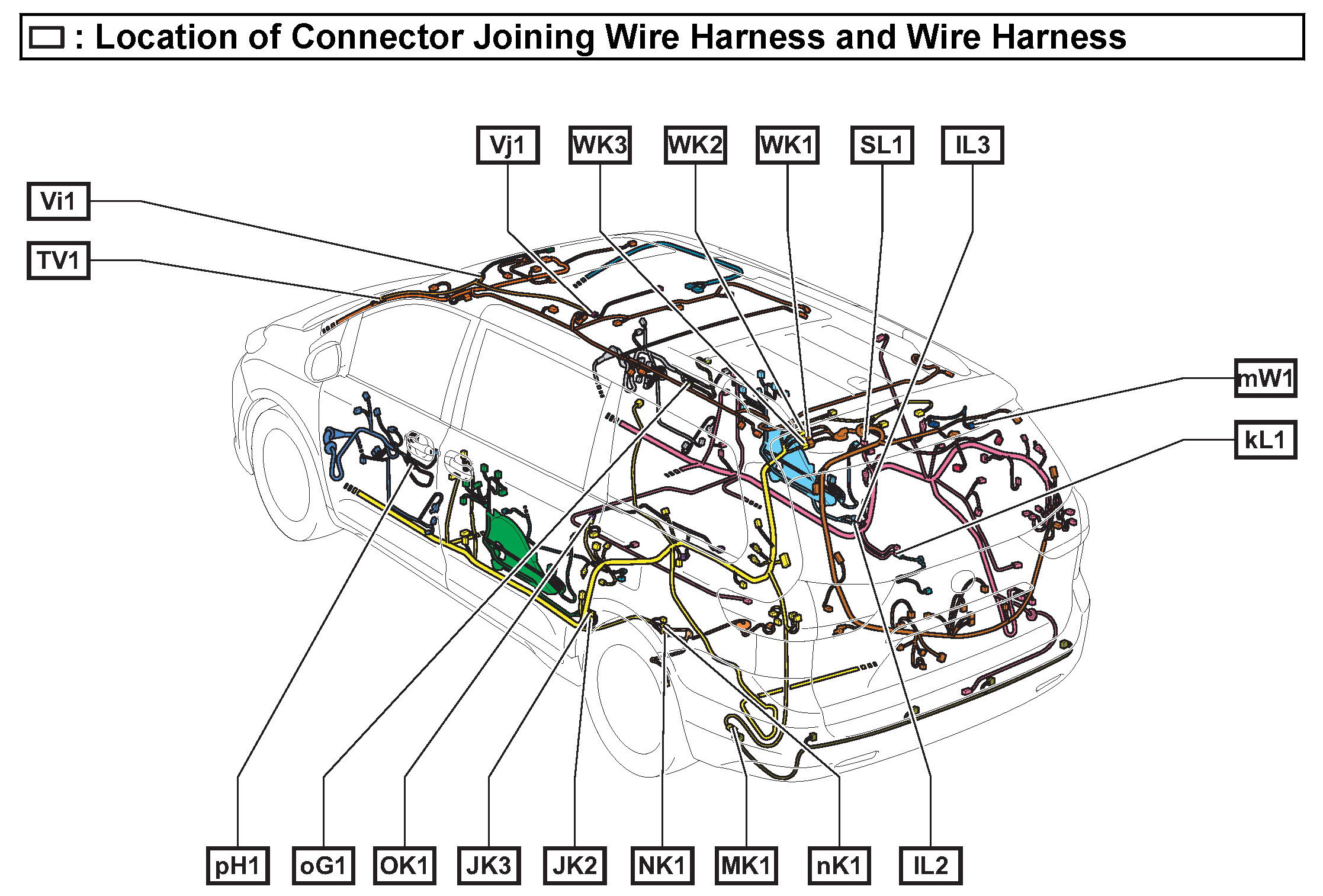

69 - IL2-WK3:

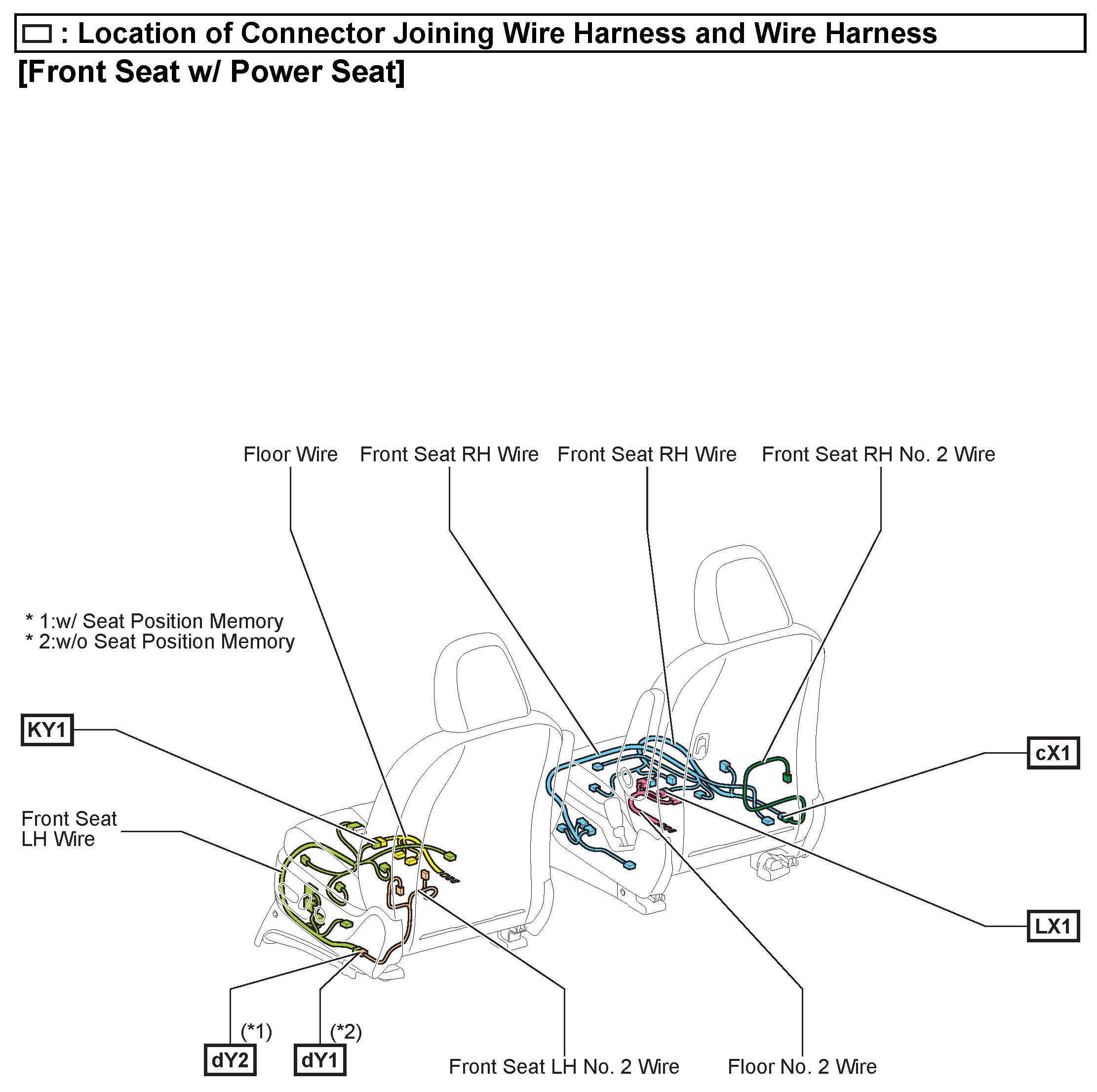

Front Seat w/ Power Seat

70 - cX1-LX1:

Front Seat w/o Power Seat

71 - LX1:

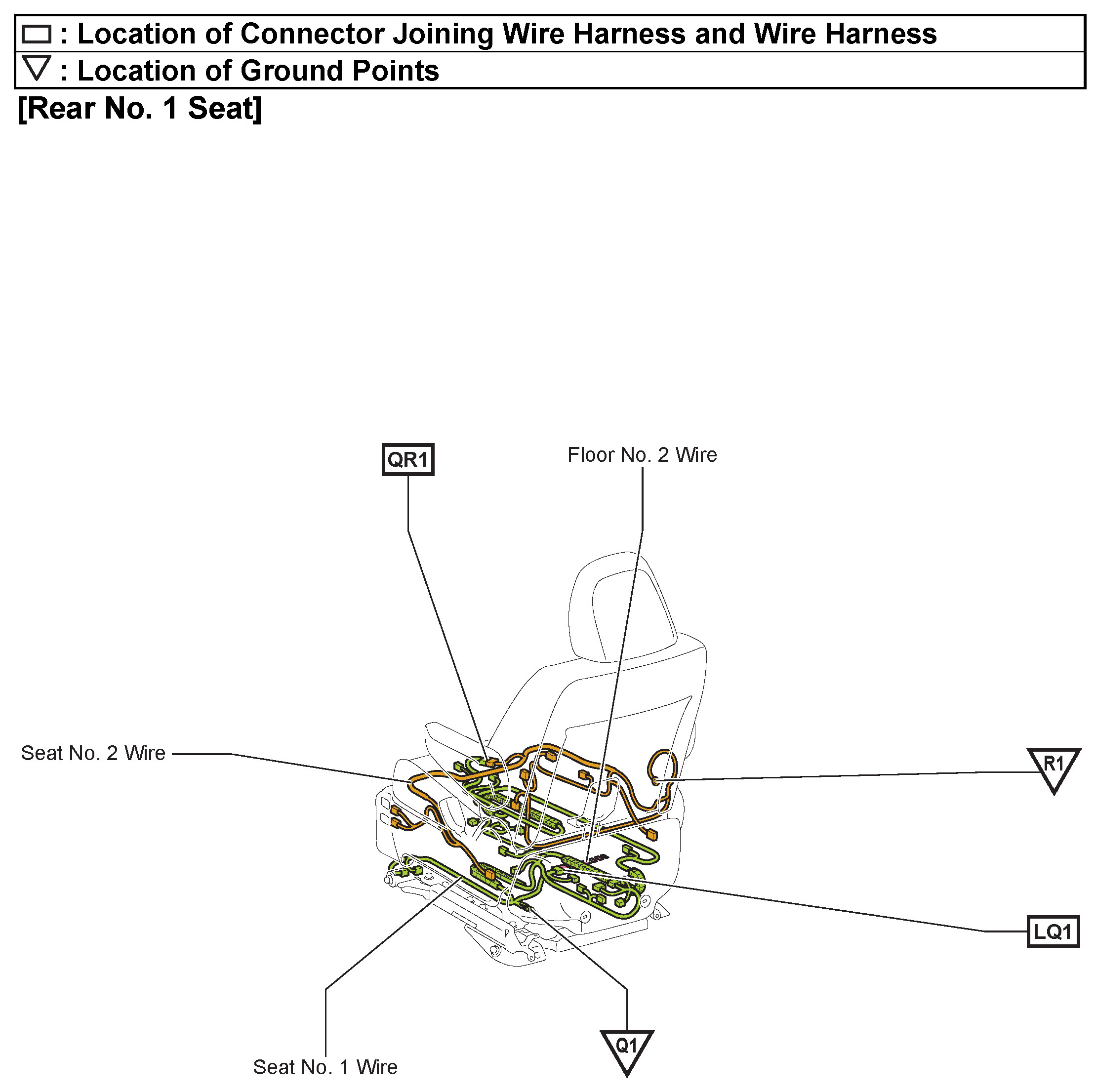

Rear No. 1 Seat

72 - Q1-R1, LQ1-QR1:

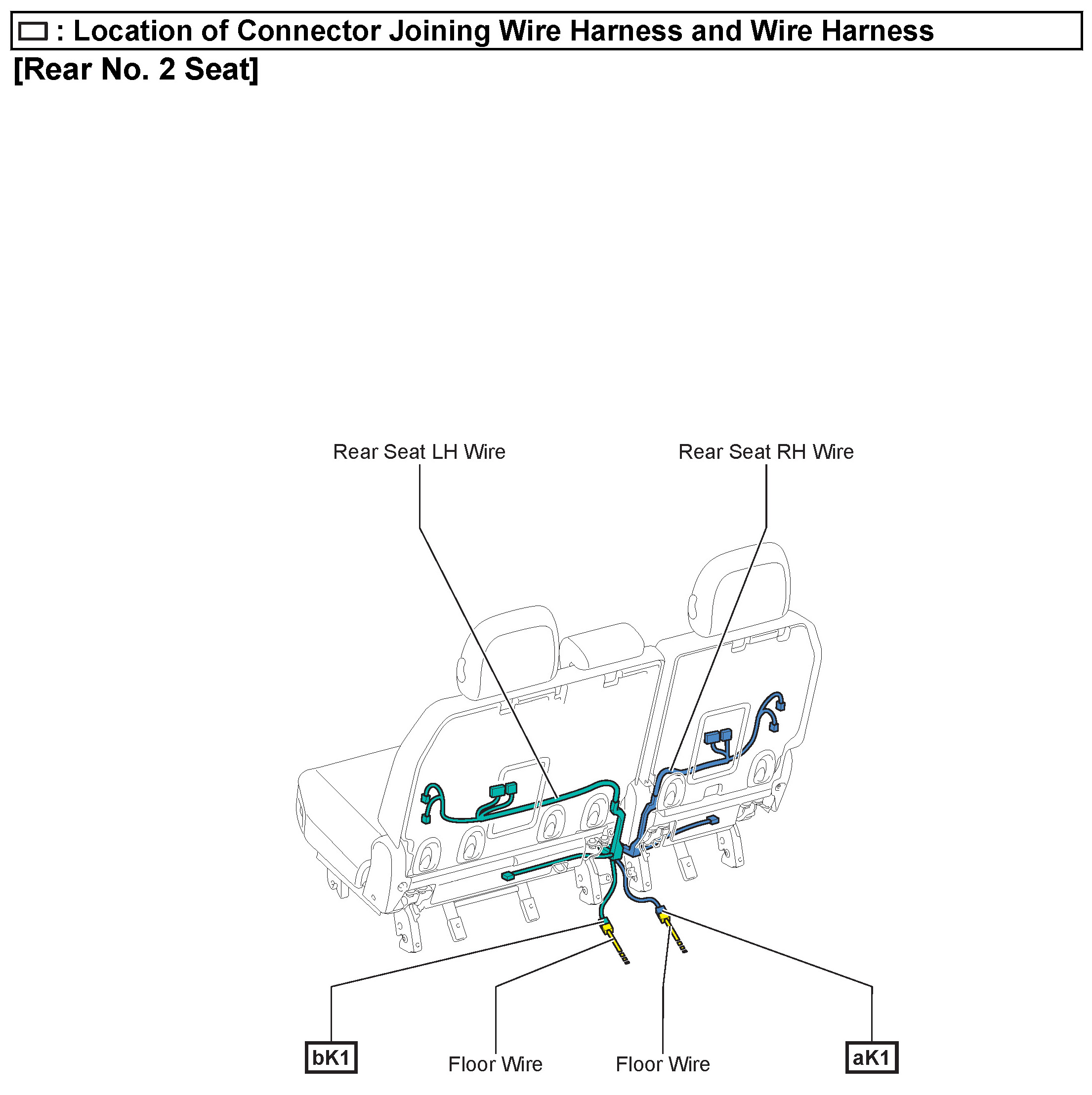

Rear No. 2 Seat

73 - aK1-bK1:
