Engine - General Maintenance

MAINTENANCE: ENGINE: GENERAL MAINTENANCE

HINT
Perform these procedures after the engine has cooled down.

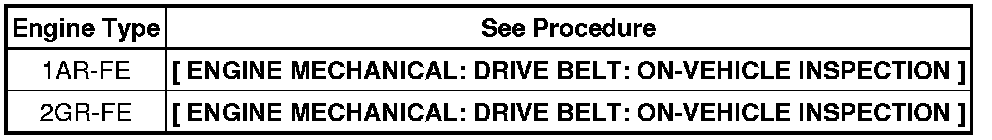

1. INSPECT DRIVE BELT

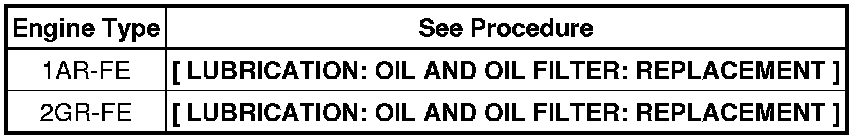

2. REPLACE ENGINE OIL AND OIL FILTER

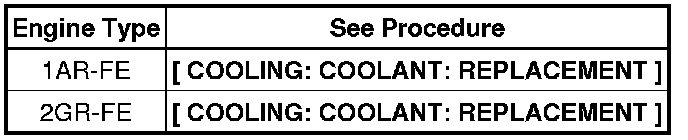

3. REPLACE ENGINE COOLANT

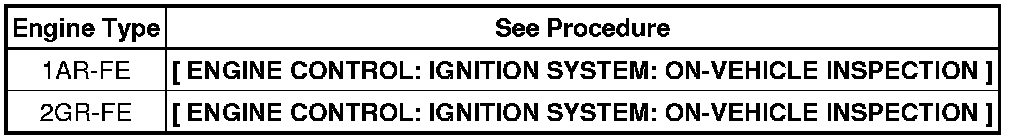

4. INSPECT SPARK PLUGS

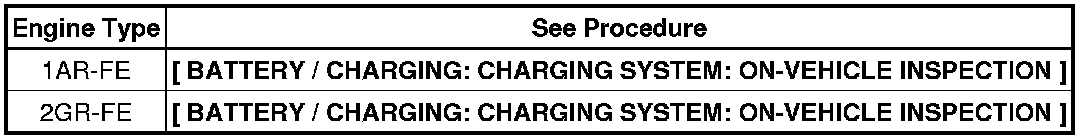

5. INSPECT BATTERY





6. INSPECT AIR FILTER

(a) Remove the air filter.





(b) Visually check that the air filter is not excessively damaged or oily.

HINT
Oiliness may indicate that the PCV valve is stuck.

If necessary, replace the air filter.

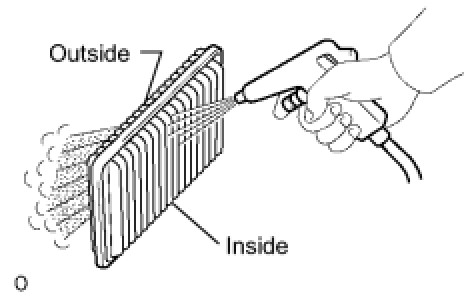

(c) Clean the filter with compressed air.

First blow from the inside thoroughly and then blow from the outside of the filter.

(d) Reinstall the air filter.

7. INSPECT EXHAUST PIPES AND MOUNTINGS

(a) Visually check the pipes, hangers and connections for severe corrosion, leaks or damage.

8. INSPECT FUEL TANK CAP GASKET





9. INSPECT FUEL LINES, CONNECTIONS, FUEL TANK VAPOR VENT SYSTEM HOSES AND FUEL TANK BANDS

(a) Visually check the fuel lines and hoses for cracks, leaks, loose connections or deformation.

(b) Check for tank band looseness or deformation.

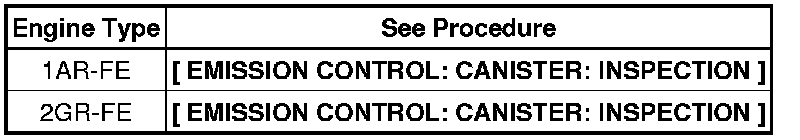

10. INSPECT CHARCOAL CANISTER
