Removal





1AR-FE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

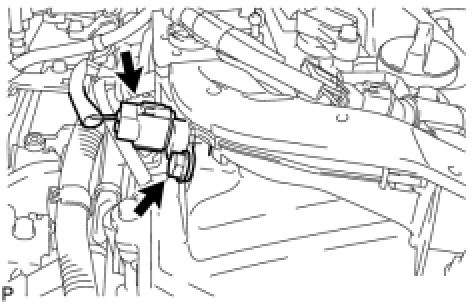

2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)

(a) Disconnect the oil control valve connector.





(b) Remove the bolt and the oil control valve.

(c) Remove the O-ring from the oil control valve.





Text in Illustration





3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)

(a) Disconnect the oil control valve connector.





(b) Remove the bolt and the oil control valve.

(c) Remove the O-ring from the oil control valve.





Text in Illustration
