Fail-Safe Chart
U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: FAIL-SAFE CHART 1.
Fail-safe
This function minimizes the loss of operation when any abnormality occurs in a sensor or solenoid.

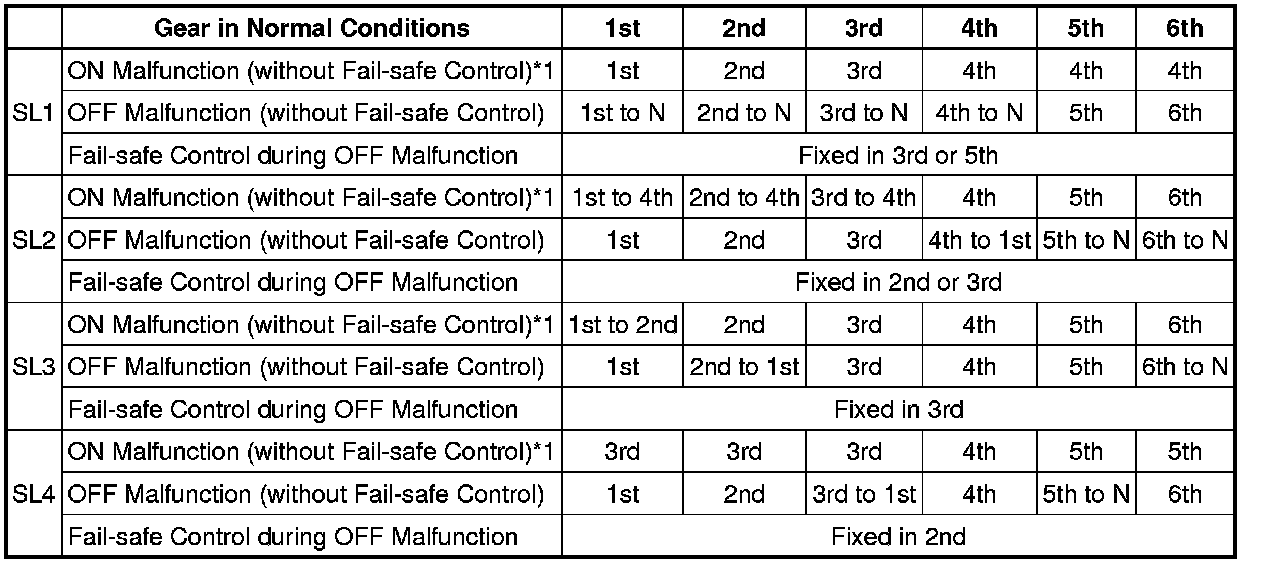

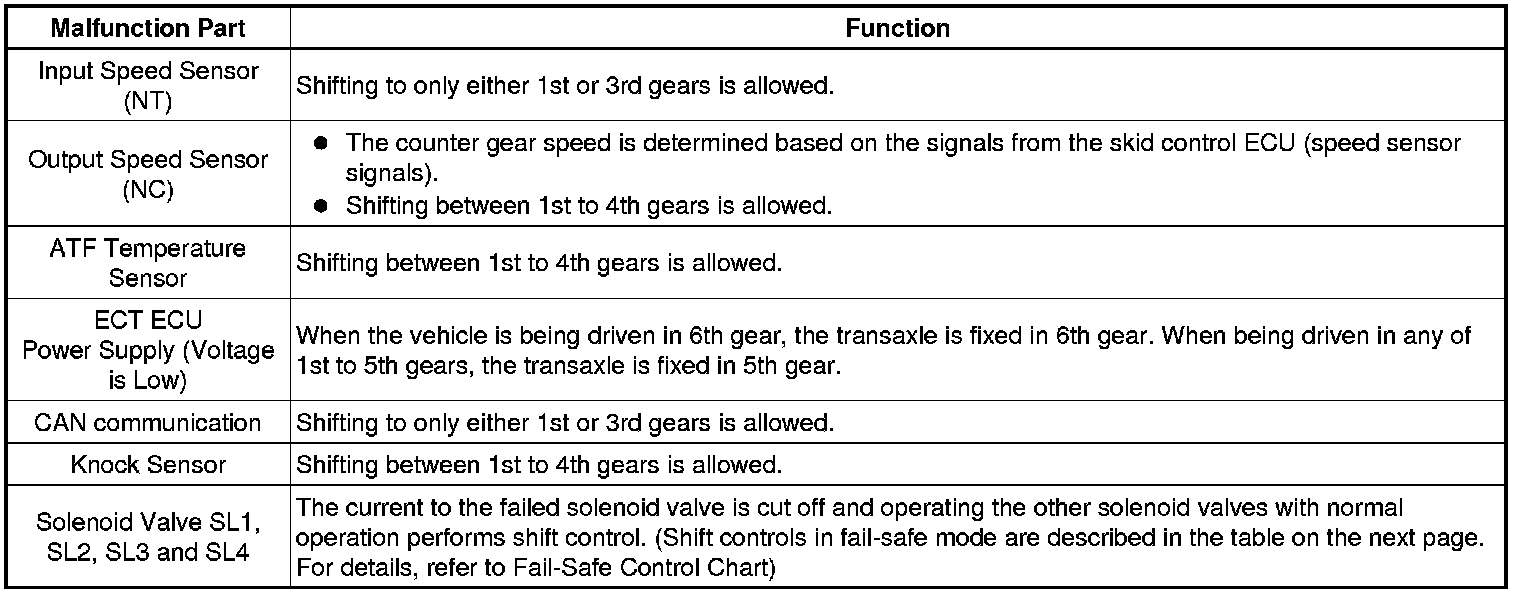

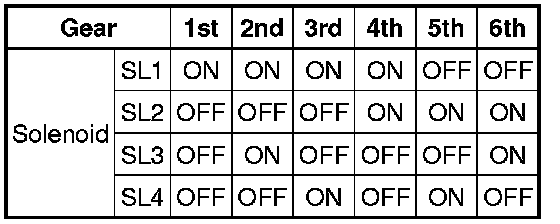

Fail-safe Control ListSolenoid Valve Operation when NormalFail-safe Control Chart *1: Fail-safe control is not activated when an ON malfunction occurs.
