Fluid Pan, A/T

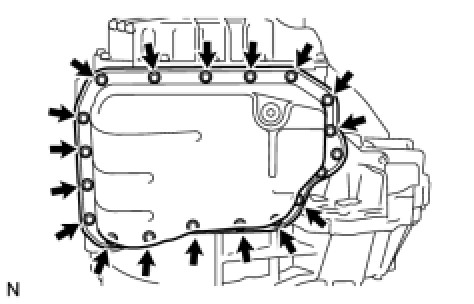

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLYInstall the 2 transmission oil cleaner magnets onto the automatic transaxle oil pan as shown in the illustration.
Text in Illustration
Install the automatic transaxle oil pan with the automatic transaxle oil pan gasket onto the automatic transaxle with the 17 bolts.
Torque
7.5 Nm (76 kgf-cm, 66 in-lbf)
Install the 2 bolts.
Torque
7.0 Nm (71 kgf-cm, 62 in-lbf)
