Ignition Switch: Testing and Inspection
1AR-FE STARTING: IGNITION SWITCH: INSPECTION 1.
INSPECT
IGNITION SWITCH (a)
Check the
ignition switch resistance.
(1)

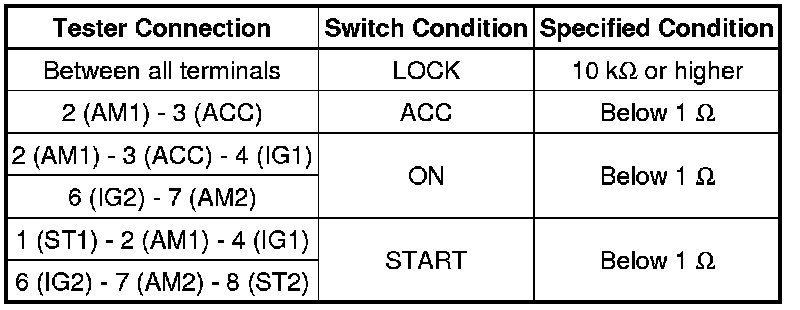

Measure the resistance according to the value(s) in the table below.
Text in Illustration Standard Resistance: If the result is not as specified, replace the switch assembly.
