B15C5

CELLULAR COMMUNICATION: SAFETY CONNECT SYSTEM: B15C5: Manual Button Malfunction
B15C5 - Manual Button Malfunction

DESCRIPTION

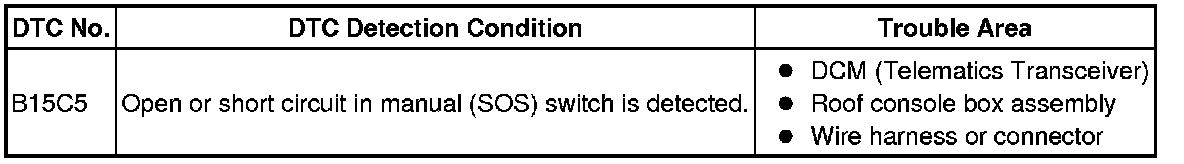

This DTC is set when the DCM (Telematics Transceiver) detects an open or short circuit in the manual (SOS) switch.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON and wait for 10 seconds.

(d) Turn the Techstream on.

(e) Perform "HEALTH CHECK" and check current DTC Health Check.

Result





B -- READ VALUE USING TECHSTREAM (MANUAL (SOS) SWITCH OPERATION)
A -- Continue to next step.

2. INSPECT ROOF CONSOLE BOX ASSEMBLY (MANUAL (SOS) SWITCH)

(a) Disconnect the T5 roof console box assembly connector.

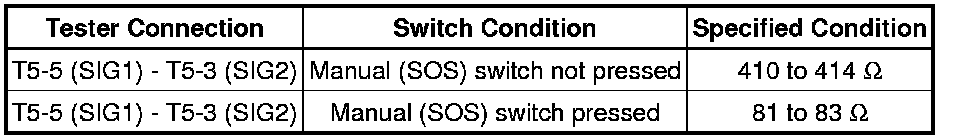

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE ROOF CONSOLE BOX ASSEMBLY Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (DCM - ROOF CONSOLE BOX)

(a) Disconnect the D73 DCM (Telematics Transceiver) connector.





(b) Disconnect the T5 roof console box assembly connector.

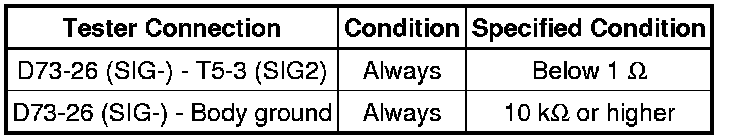

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (Telematics Transceiver) Removal.

NOTICE:
* The ignition switch must be off.
* Do not swap the DCM (Telematics Transceiver) with one from another vehicle.

NEXT -- PERFORM DCM ACTIVATION DCM Activation

5. READ VALUE USING TECHSTREAM (MANUAL (SOS) SWITCH OPERATION)

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON and wait for 10 seconds.

(d) Turn the Techstream on.

(e) Enter the following menus: Body Electrical / Telematics / Data List.

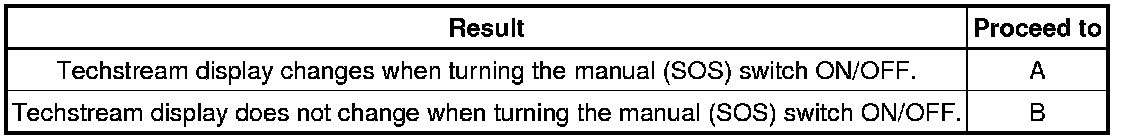

(f) Check that the manual (SOS) switch condition observed on the Techstream changes according to manual (SOS) switch operation.

Telematics





Result





B -- INSPECT DCM (TELEMATICS TRANSCEIVER) (SIG1 VOLTAGE)
A -- Continue to next step.

6. REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (Telematics Transceiver) Removal.

NOTICE:
* The ignition switch must be off.
* Do not swap the DCM (Telematics Transceiver) with one from another vehicle.

NEXT -- PERFORM DCM ACTIVATION DCM Activation

7. INSPECT DCM (TELEMATICS TRANSCEIVER) (SIG1 VOLTAGE)

(a) Remove the DCM (Telematics Transceiver) but do not disconnect the connectors Removal.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- INSPECT ROOF CONSOLE BOX ASSEMBLY (MANUAL (SOS) SWITCH)
OK -- Continue to next step.

8. REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (Telematics Transceiver) Removal.

NOTICE:
* The ignition switch must be off.
* Do not swap the DCM (Telematics Transceiver) with one from another vehicle.

NEXT -- PERFORM DCM ACTIVATION DCM Activation

9. INSPECT ROOF CONSOLE BOX ASSEMBLY (MANUAL (SOS) SWITCH)

(a) Disconnect the T5 roof console box assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE ROOF CONSOLE BOX ASSEMBLY
OK -- Continue to next step.

10. CHECK HARNESS AND CONNECTOR (DCM - ROOF CONSOLE BOX)

(a) Disconnect the D73 DCM (Telematics Transceiver) connector.





(b) Disconnect the T5 roof console box assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

11. REPLACE DCM (TELEMATICS TRANSCEIVER)

(a) Replace the DCM (Telematics Transceiver) Removal.

NOTICE:
* The ignition switch must be off.
* Do not swap the DCM (Telematics Transceiver) with one from another vehicle.

NEXT -- PERFORM DCM ACTIVATION DCM Activation
