2GR-FE ENGINE CONTROL: SFI SYSTEM: P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
P0705 - Transmission Range Sensor Circuit Malfunction (PRNDL Input)

DESCRIPTION

The park/neutral position switch assembly detects the shift lever position and sends signals to the ECM.





MONITOR DESCRIPTION

These DTCs indicate a problem with the park/neutral position switch assembly and the wire harness in the park/neutral position switch assembly circuit.

The park/neutral position switch assembly detects the shift lever position and sends a signal to the ECM.

For safety, the park/neutral position switch assembly detects the shift lever position so that the engine can be started only when the shift lever is in P or N.

The park/neutral position switch assembly sends a signal to the ECM according to the shift lever position (P, R, N, D, or S). The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

All





Case 3





TYPICAL MALFUNCTION THRESHOLDS

Case 1





Case 2





Case 3





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on [A].

6. Move the shift lever to R and wait 2 seconds or more.

7. Move the shift lever to N and wait 2 seconds or more.

8. Move the shift lever to D and wait 2 seconds or more.

9. Move the shift lever to S and wait 2 seconds or more.

10. Move the shift lever to P and wait 2 seconds or more.

11. Wait 1 minute or more.

12. Enter the following menus: Powertrain / Engine / Trouble Codes [B].

13. Read pending DTCs.

HINT
* If a pending DTC is output, the system is malfunctioning.
* If a pending DTC is not output, perform the following procedure.

14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15. Input the DTC: P0705.

16. Check the DTC judgment result.





HINT
If the judgment result shows ABNORMAL, the system has a malfunction.

17. If the result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may by discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

1. DATA LIST

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine / Data List / All Data.

(g) Read the values displayed on the Techstream.





PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / All Data.

(e) Read the values displayed on the Techstream.

OK:





NG -- CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY VOLTAGE)
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (SPORTS MODE SELECTION SW)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Sports Mode Selection SW.

(e) Read the values displayed on the Techstream.

OK:





NG -- INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

3. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (TRANSMISSION CONTROL SWITCH)

(a) Disconnect the shift lock control unit assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

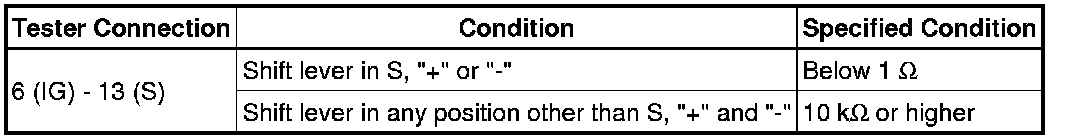

Standard Resistance:





Result





Text in Illustration





B -- REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY (FOR 2WD) Removal

C -- REPLACE SHIFT LOCK CONTROL UNIT ASSEMBLY (FOR AWD)

A -- REPAIR OR REPLACE HARNESS OR CONNECTOR

4. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY VOLTAGE)

(a) Disconnect the park/neutral position switch assembly connector.





(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:









NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - BATTERY)
OK -- Continue to next step.

5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Disconnect the park/neutral position switch assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Result





Text in Illustration





B -- REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY (FOR 2WD) Removal

C -- REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY (FOR AWD)
A -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH ASSEMBLY)

(a) Disconnect the ECM connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH ASSEMBLY - ECM)

(a) Disconnect the park/neutral position switch assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):





Standard Resistance (Check for Short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
