How To Proceed With Troubleshooting

PARK ASSIST / MONITORING: PARKING ASSIST MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the parking assist monitor system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

(a) Measure the battery voltage with the ignition switch off.

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, replace or recharge the battery before proceeding to the next step.

NEXT -- Continue to next step.

3. CHECK NAVIGATION SYSTEM

(a) Refer to the navigation system How To Proceed With Troubleshooting.

Result





B -- GO TO NAVIGATION SYSTEM How To Proceed With Troubleshooting
A -- Continue to next step.

4. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN communication system is functioning normally.

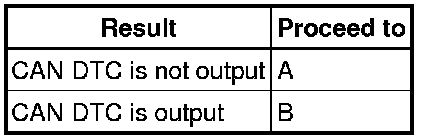

Result





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

5. CHECK FOR DTC*

(a) Check for DTCs and note any codes that are output Parking Assist Monitor System.

(b) Clear the DTC Parking Assist Monitor System.

(c) Recheck for DTCs. Try to prompt the DTC by simulating the original activity that the DTC suggests.

NOTICE:
The parking assist ECU may store the DTCs of the following system. If DTCs other than those specified in Diagnostic Trouble Code Chart of the parking assist monitor system are output, refer to Diagnostic Trouble Code Chart for the applicable system.

Result





B -- Go to step 8
A -- Continue to next step.

6. PROBLEM SYMPTOMS TABLE

(a) Refer to the Problem Symptoms Table Problem Symptoms Table.

Result





B -- Go to step 8
A -- Continue to next step.

7. OVERALL ANALYSIS AND TROUBLESHOOTING

(a) Data List / Active Test Parking Assist Monitor System

(b) Terminals of ECU Parking Assist Monitor System

NEXT -- Continue to next step.

8. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

9. CONFIRMATION TEST

NEXT -- END
