SEAT: AUTO ACCESS SEAT SYSTEM: FAIL-SAFE CHART

1. AUTO ACCESS SEAT OPERATION IN FAIL-SAFE MODE

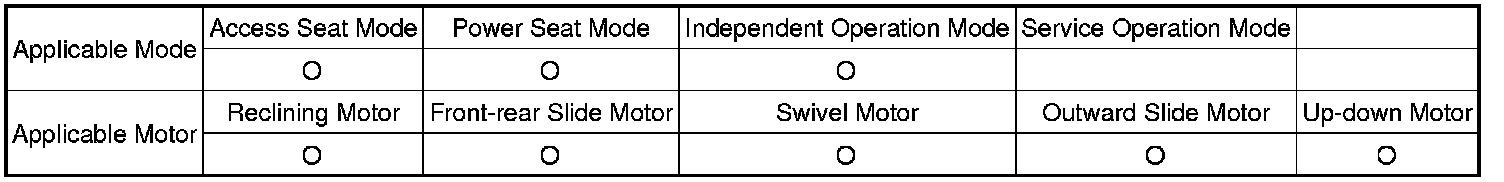

(a) If there is a malfunction in any motor or switch, auto access seat operation is prohibited.

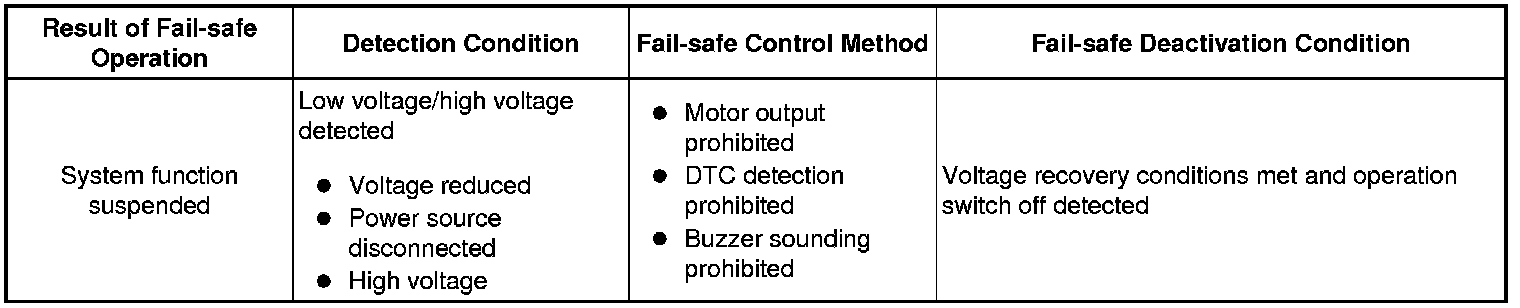

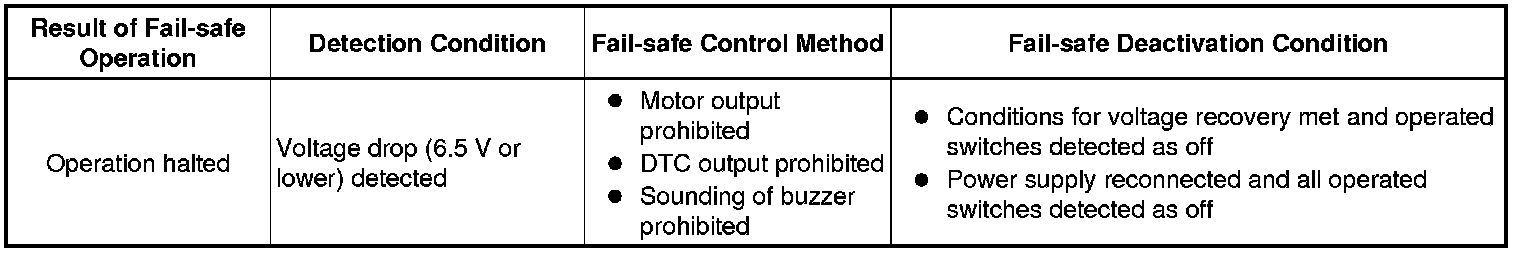

(1) Power Supply Unstable

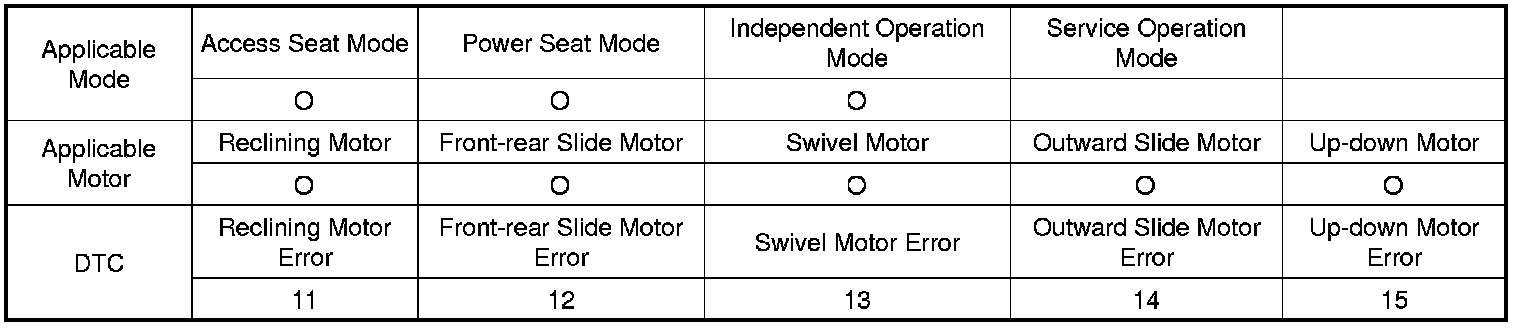

(2) Motor Malfunction

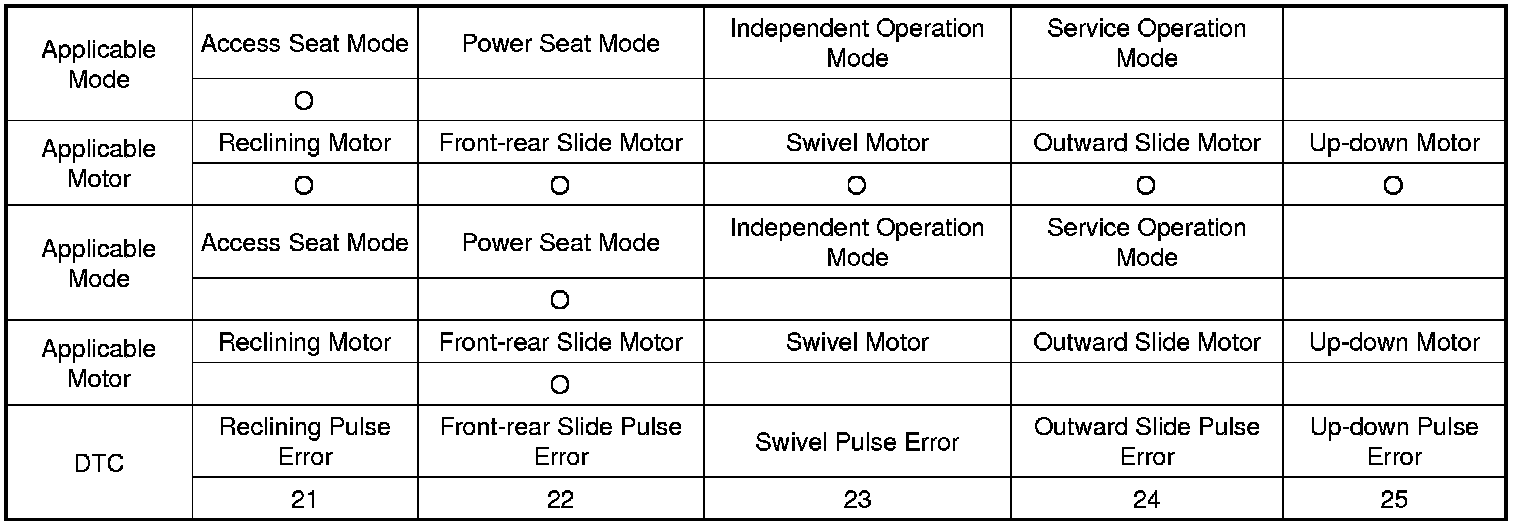

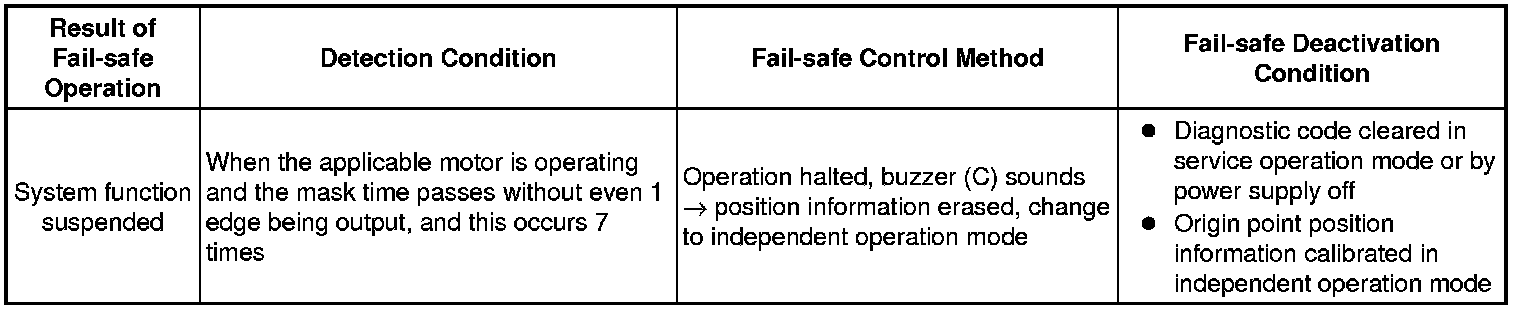

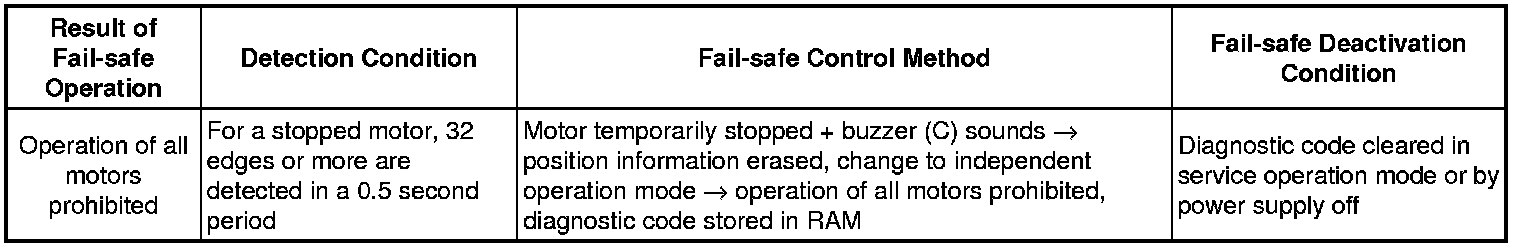

(3) Pulse Not Generated

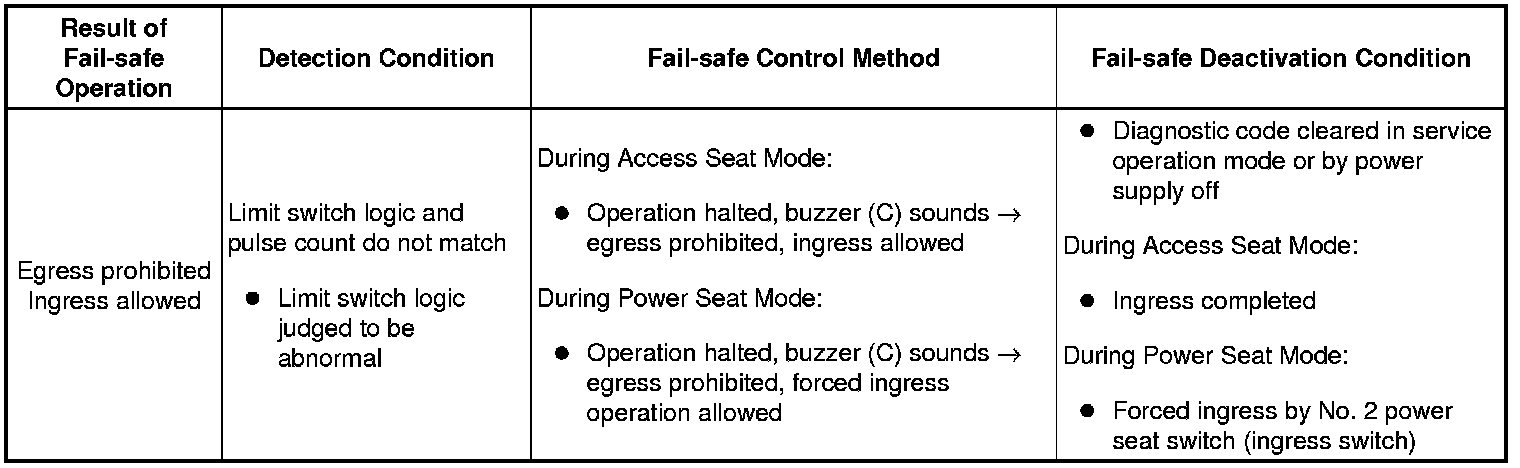

(4) Limit Switch Malfunction

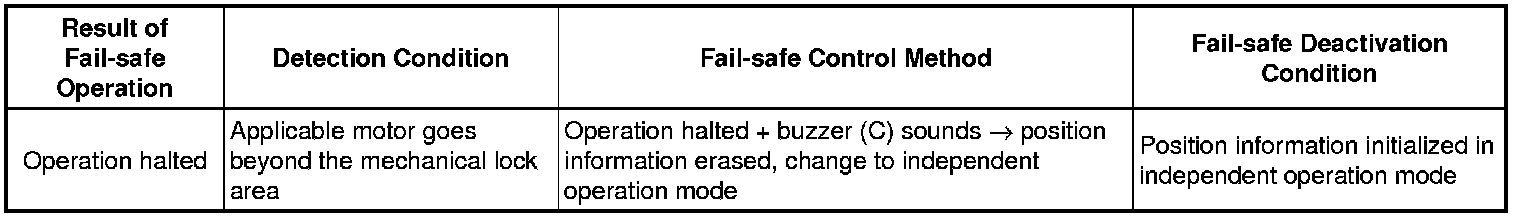

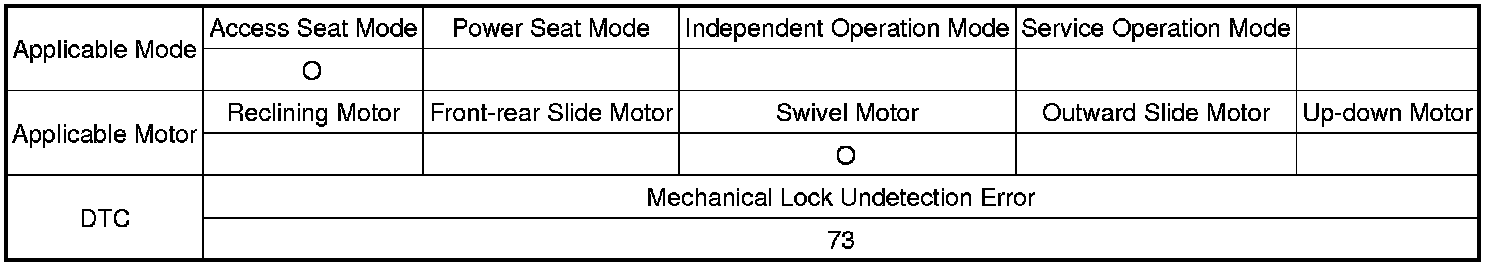

(5) Mechanical Lock Non-detection Malfunction

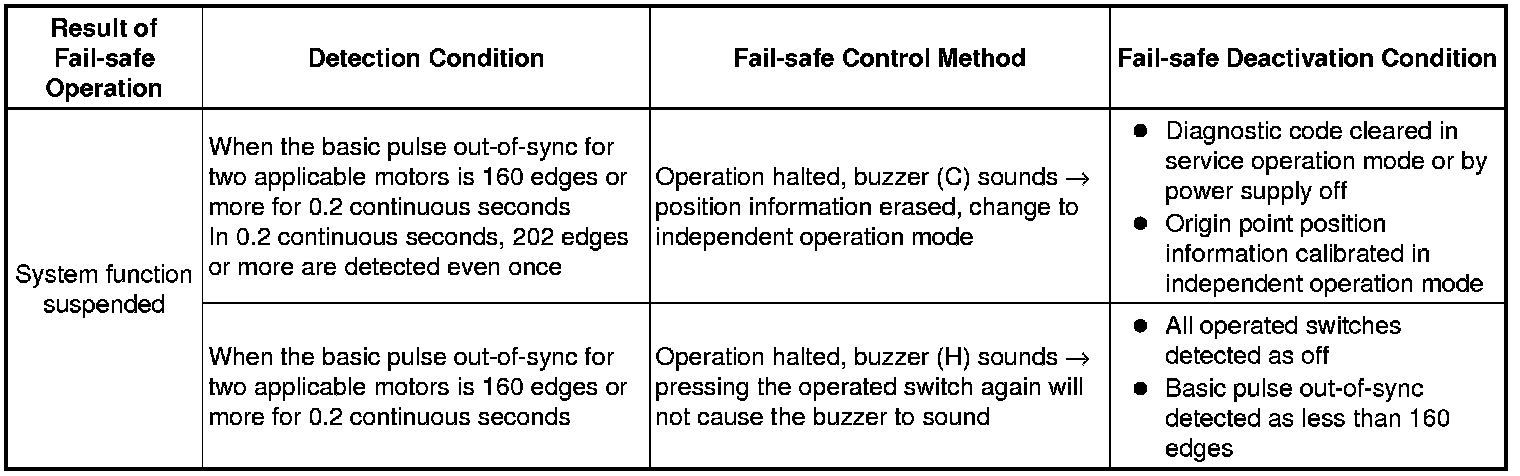

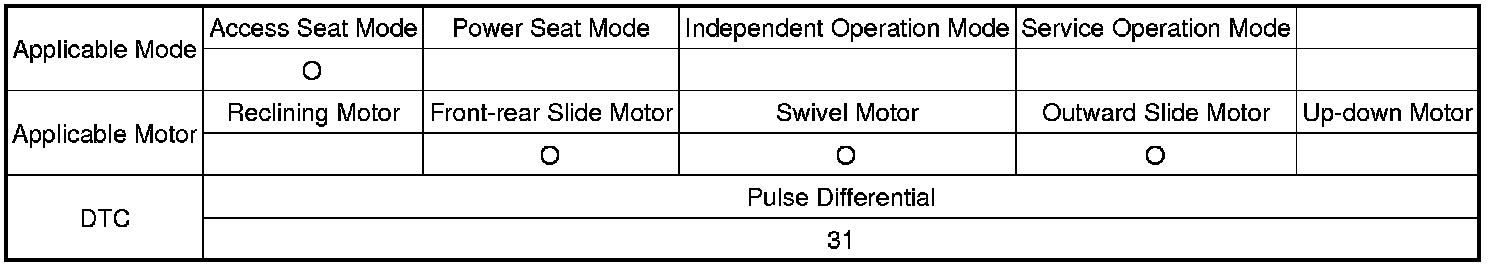

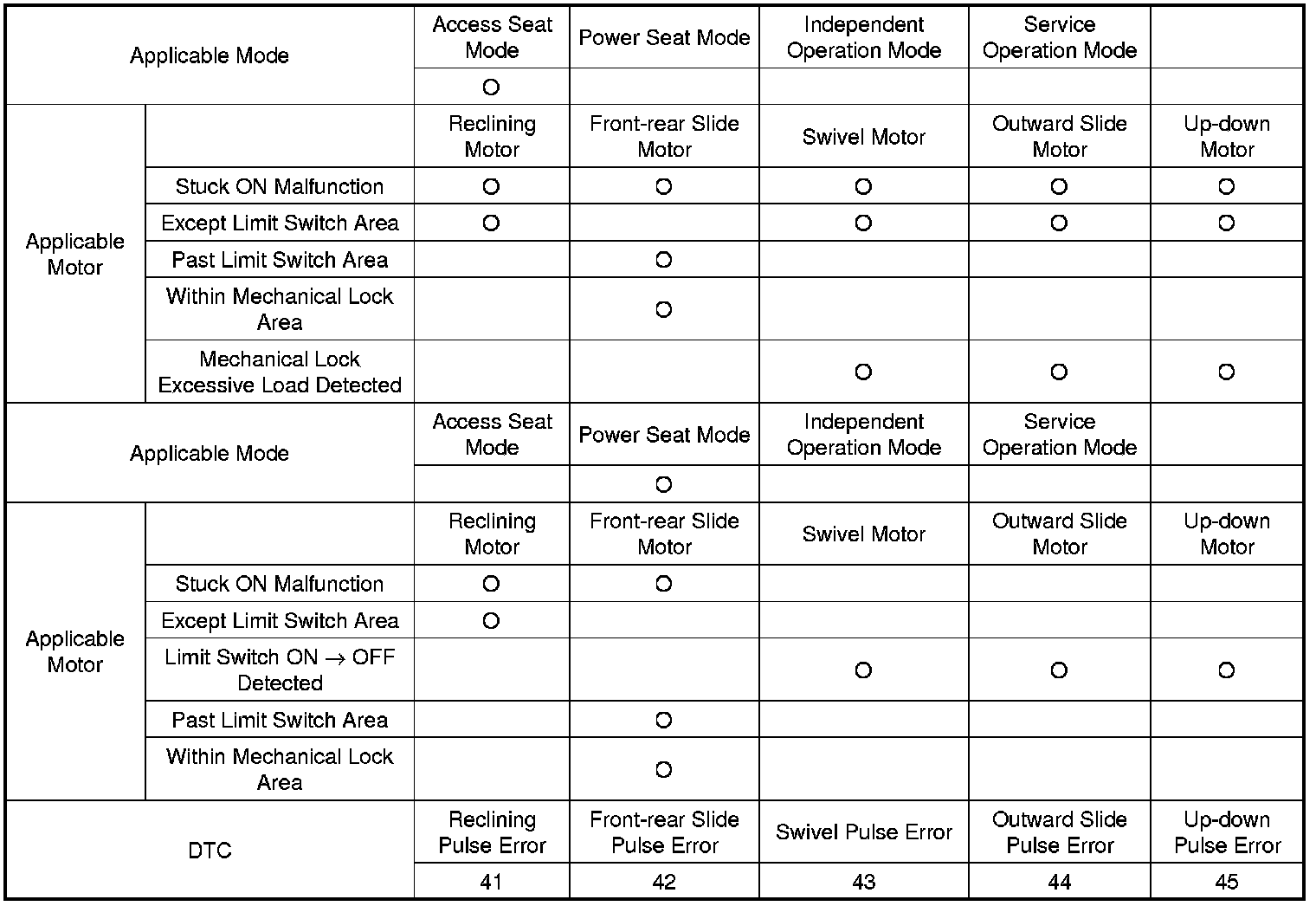

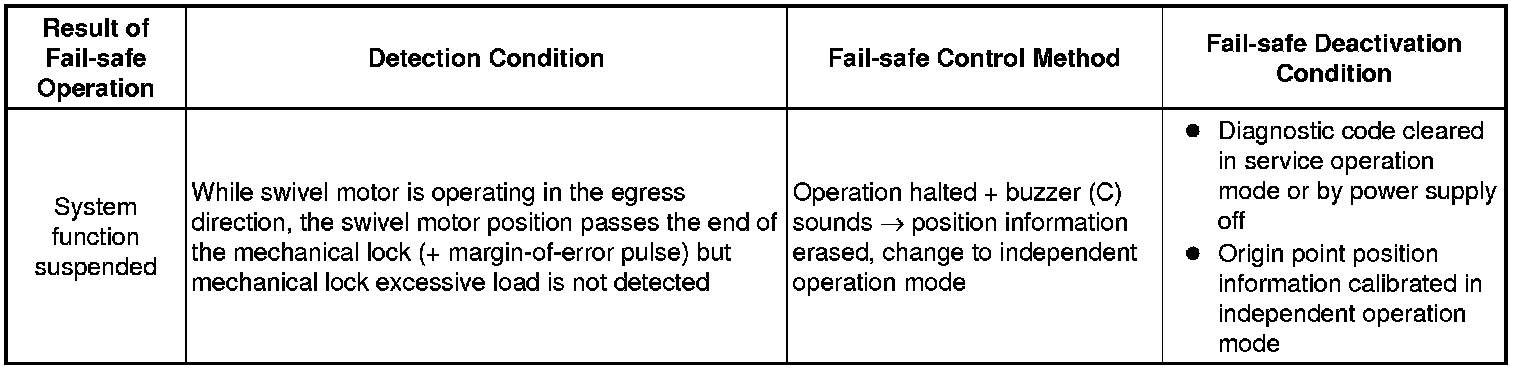

(6) Pulse Out-of-sync

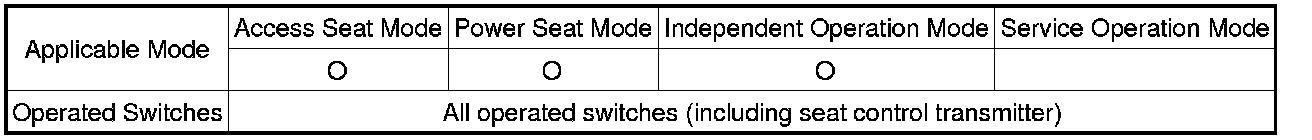

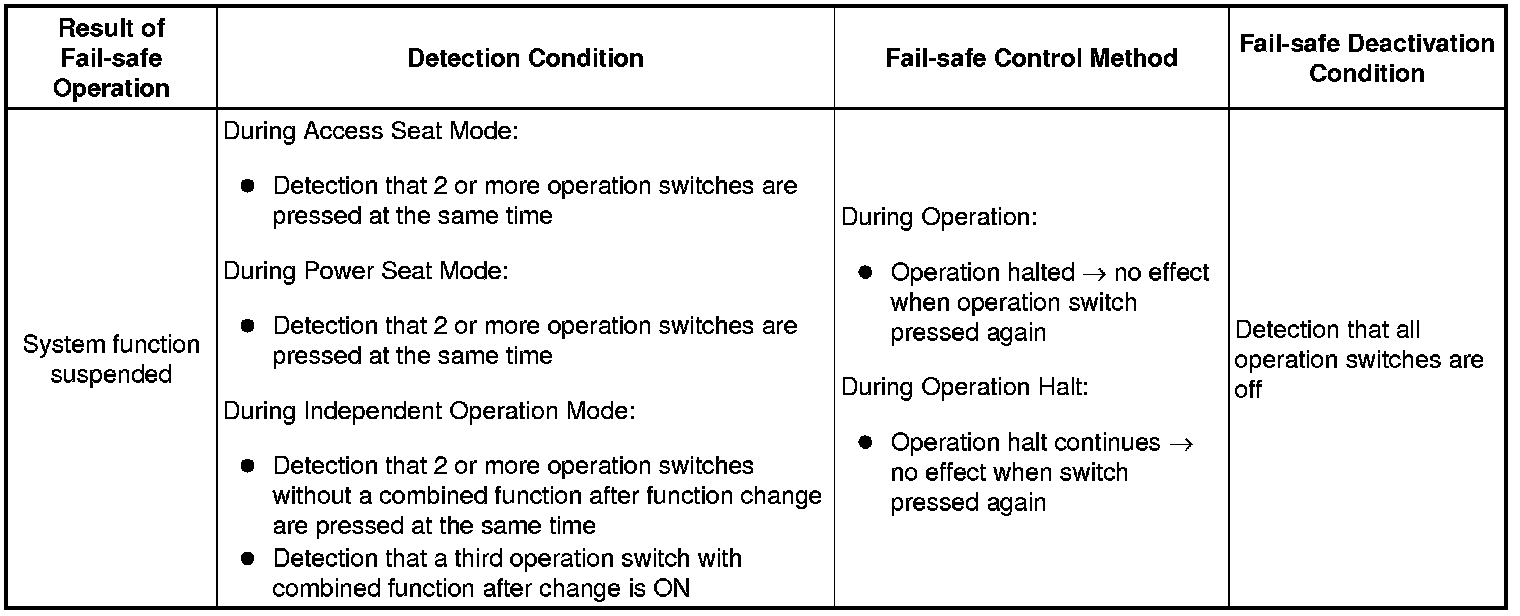

(7) Multiple Operation Switches Pressed

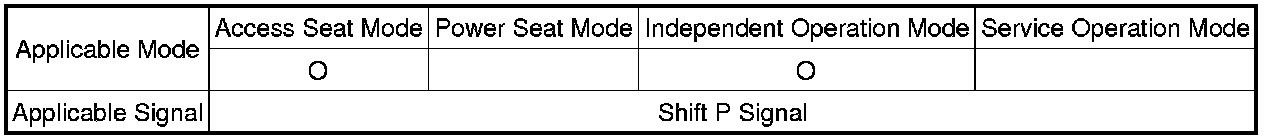

(8) Operating Conditions Not Met 1









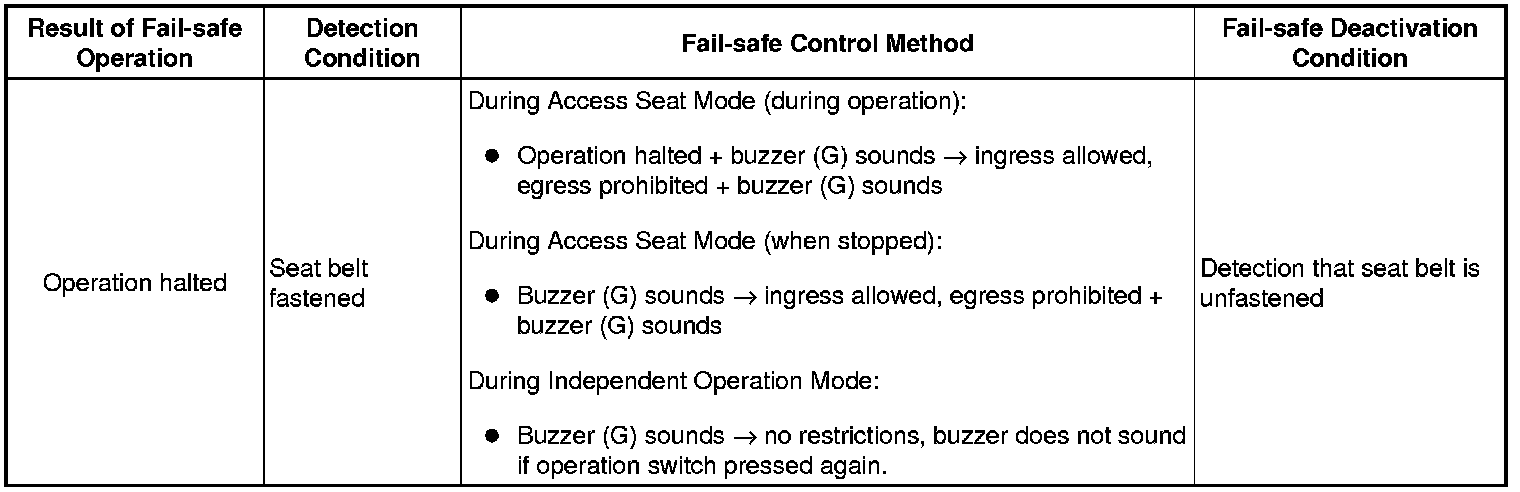

(9) Operating Conditions Not Met 2

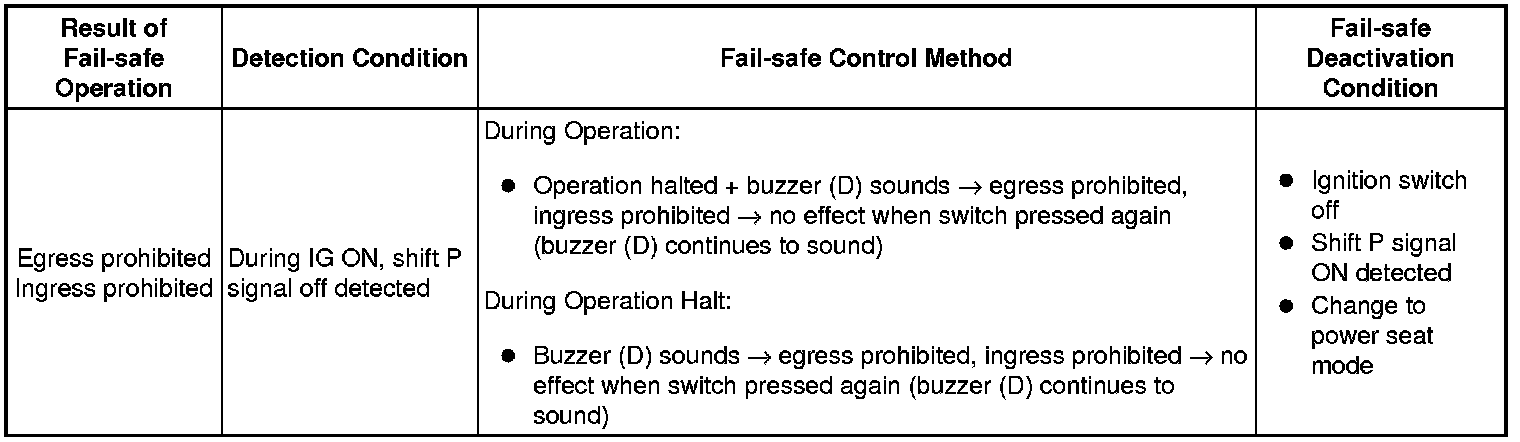

(10) Operating Conditions Not Met 3









(11) Pulse Sensor Short

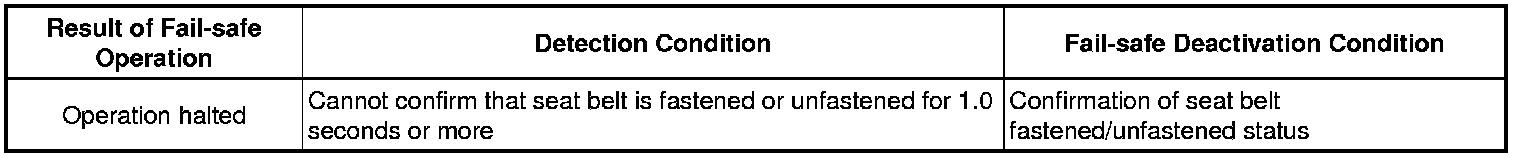

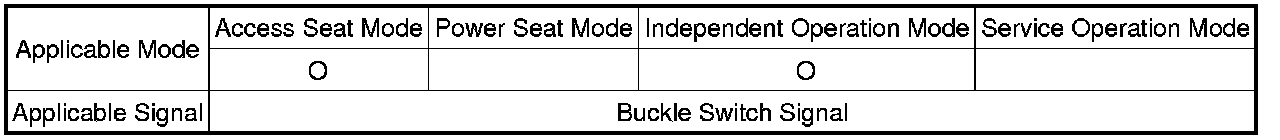

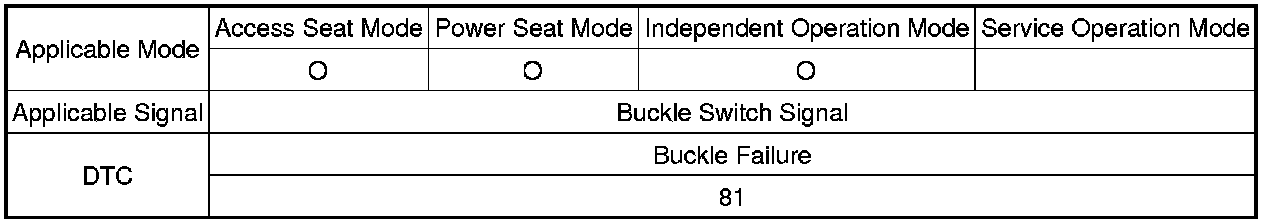

(12) Buckle Failure

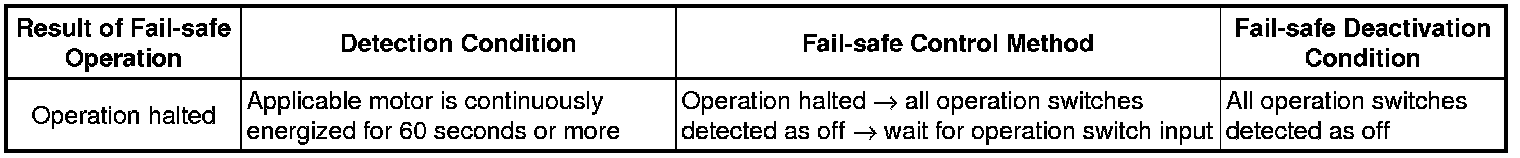

(13) Motor Continuously Energized

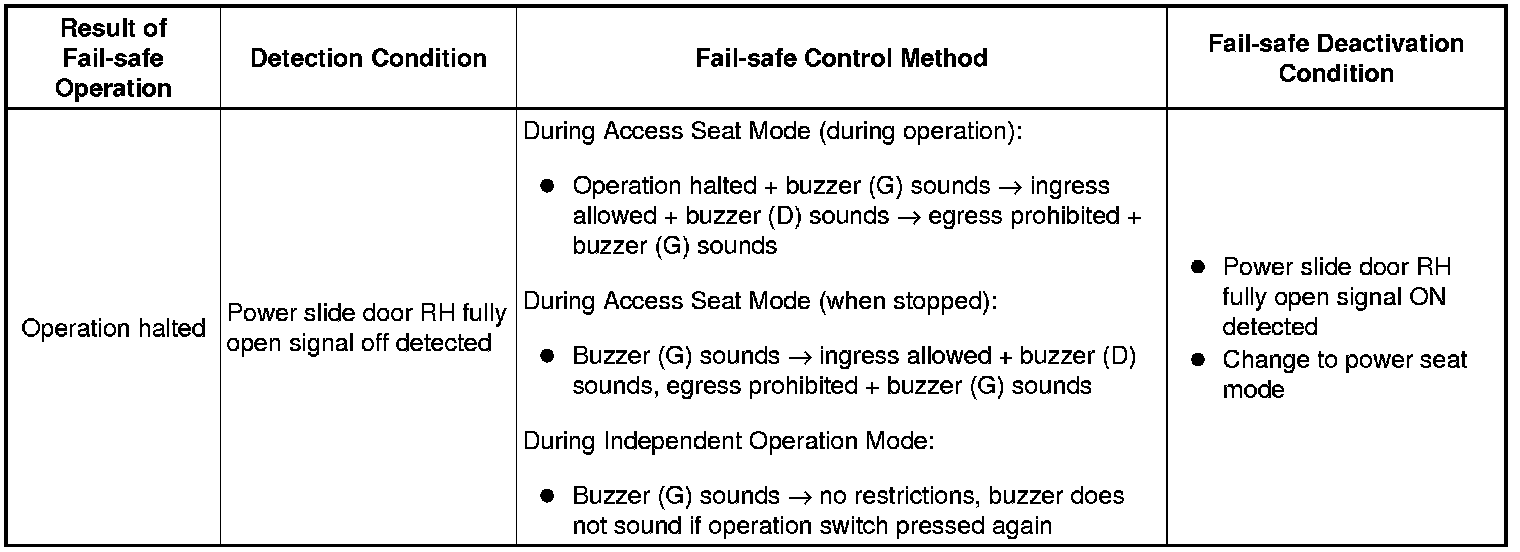

(14) Outside of Area Error
