ABS Warning Light Remains ON

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: ABS Warning Light Remains ON
- ABS Warning Light Remains ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

If any of the following is detected, the ABS warning light remains on:

* The skid control ECU connector is disconnected from the skid control ECU.

* There is a malfunction in the skid control ECU internal circuit.

* There is an open in the harness between the combination meter and the skid control ECU.

* The ABS control system is defective.

HINT
In some cases, the Techstream cannot be used when the skid control ECU is abnormal.

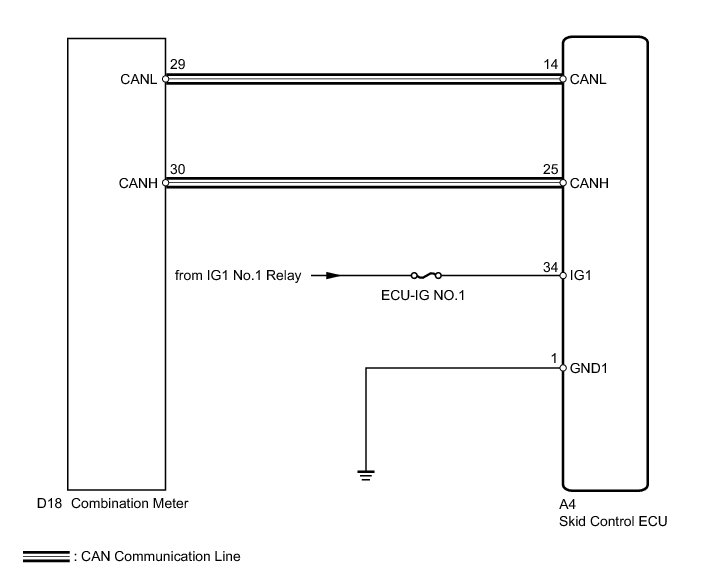

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if a CAN communication system DTC is output Diagnosis System.

Result





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED

(a) Check if the skid control ECU connector is securely connected.

OK:

The connector is securely connected.

NG -- CONNECT CONNECTOR TO ECU CORRECTLY
OK -- Continue to next step.

3. INSPECT BATTERY

(a) Check the battery voltage.

Standard voltage:

11 to 14 V

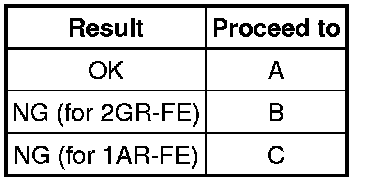

Result





B -- CHECK OR REPLACE CHARGING SYSTEM OR BATTERY Component Tests and General Diagnostics

C -- CHECK OR REPLACE CHARGING SYSTEM OR BATTERY Component Tests and General Diagnostics
A -- Continue to next step.

4. INSPECT SKID CONTROL ECU (IG1 TERMINAL)

(a) Disconnect the skid control ECU connector.





(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)
OK -- Continue to next step.

5. INSPECT SKID CONTROL ECU (GND1 TERMINAL)

(a) Turn the ignition switch off.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (GND1 CIRCUIT)
OK -- Continue to next step.

6. PERFORM ACTIVE TEST USING TECHSTREAM (ABS WARNING LIGHT)

(a) Reconnect the skid control ECU connector.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(f) Select the Active Test on the Techstream.

Combination Meter





(g) Check that the ABS warning light on the combination meter turns on or off in accordance with the Techstream operation.

OK:

The ABS Warning Light turns on or off in accordance with the Techstream operation.

HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
