Door Mirror Foot Light

LIGHTING (EXT): DOOR MIRROR FOOT LIGHT: INSPECTION

1. INSPECT OUTER MIRROR LIGHT ASSEMBLY LH

(a) Check the door mirror foot light.

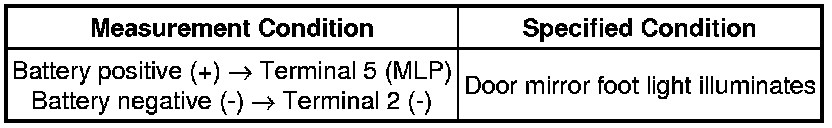

(1) Apply battery voltage to the terminals of the connector, and check the illumination condition.

OK:





Text in Illustration





If the result is not as specified, replace the outer mirror light assembly.

2. INSPECT OUTER MIRROR LIGHT ASSEMBLY RH

(a) Check the door mirror foot light.





(1) Apply battery voltage to the terminals of the connector, and check the illumination condition.

OK:





Text in Illustration





If the result is not as specified, replace the outer mirror light assembly.
