Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

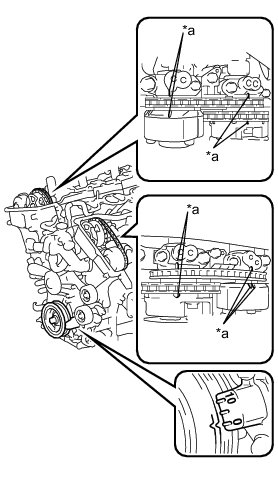

(a) Turn the crankshaft to align the timing marks of the crankshaft.

(b) Align the notch of the crankshaft pulley to the "0" position.

(c) Check if the timing marks of the camshaft pulley and camshaft bearing cap align.

Text in Illustration
