Service Data





SPECIFICATIONS: 2GR-FE ENGINE MECHANICAL: SERVICE DATA

Engine

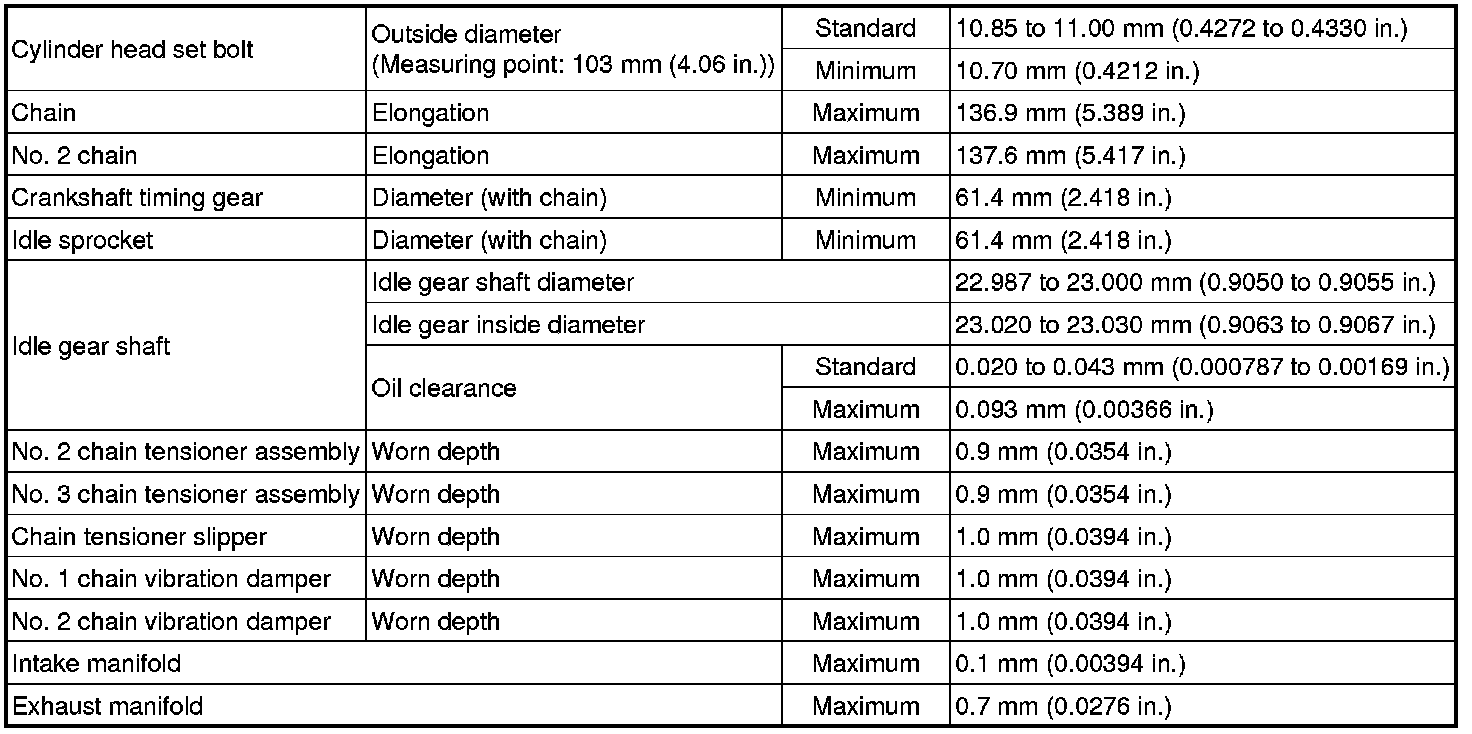

Engine Unit

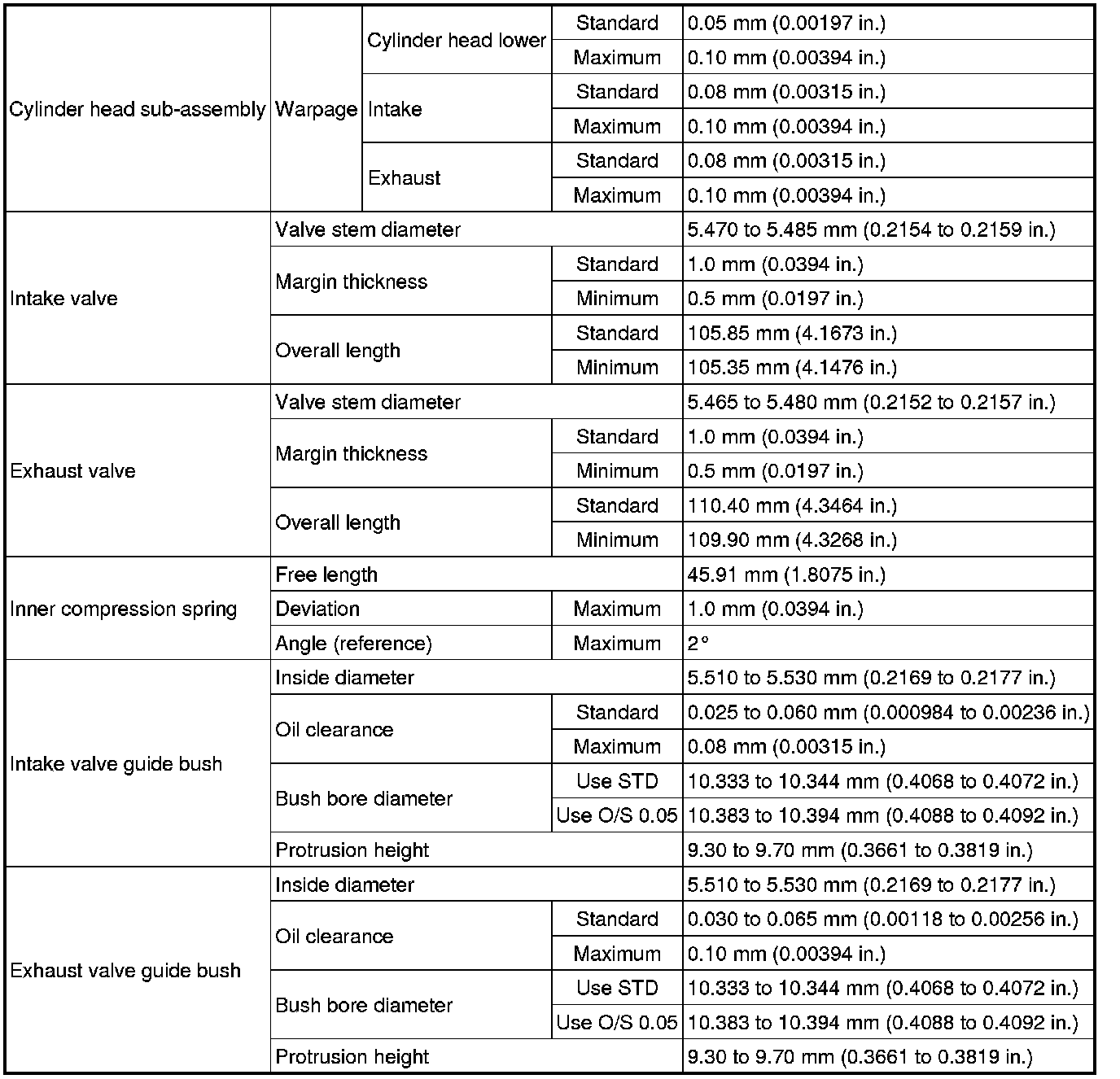

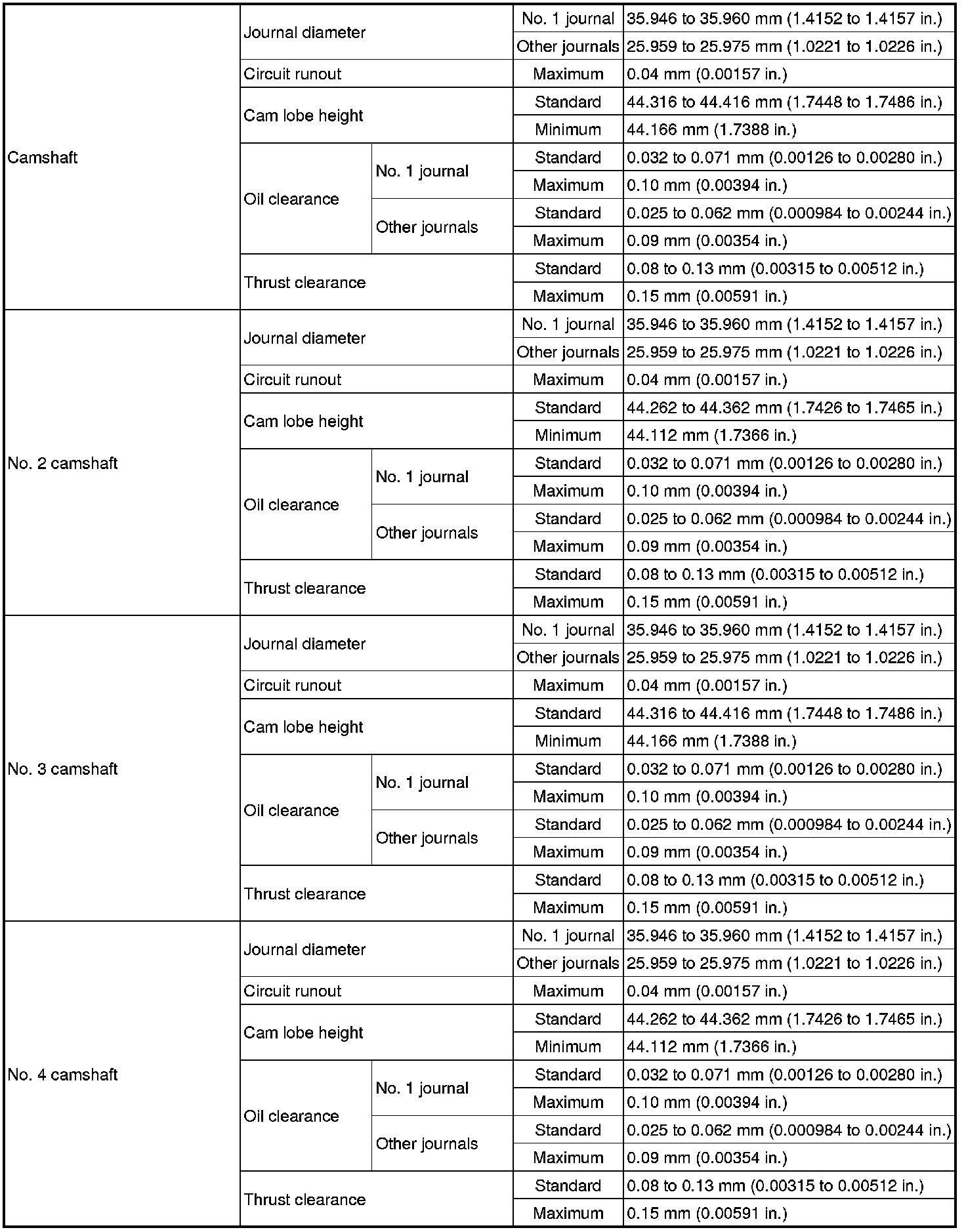

Cylinder Head

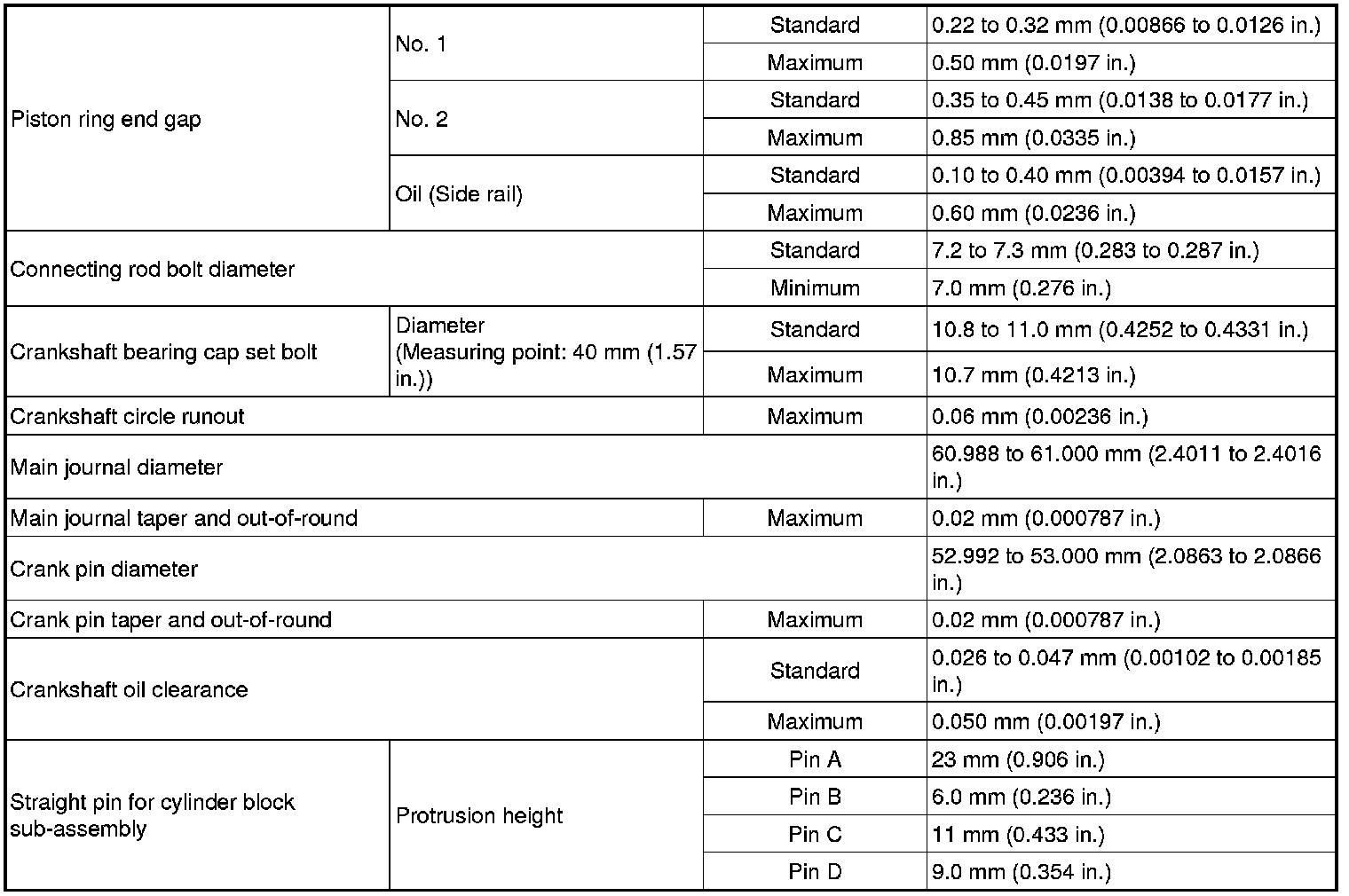

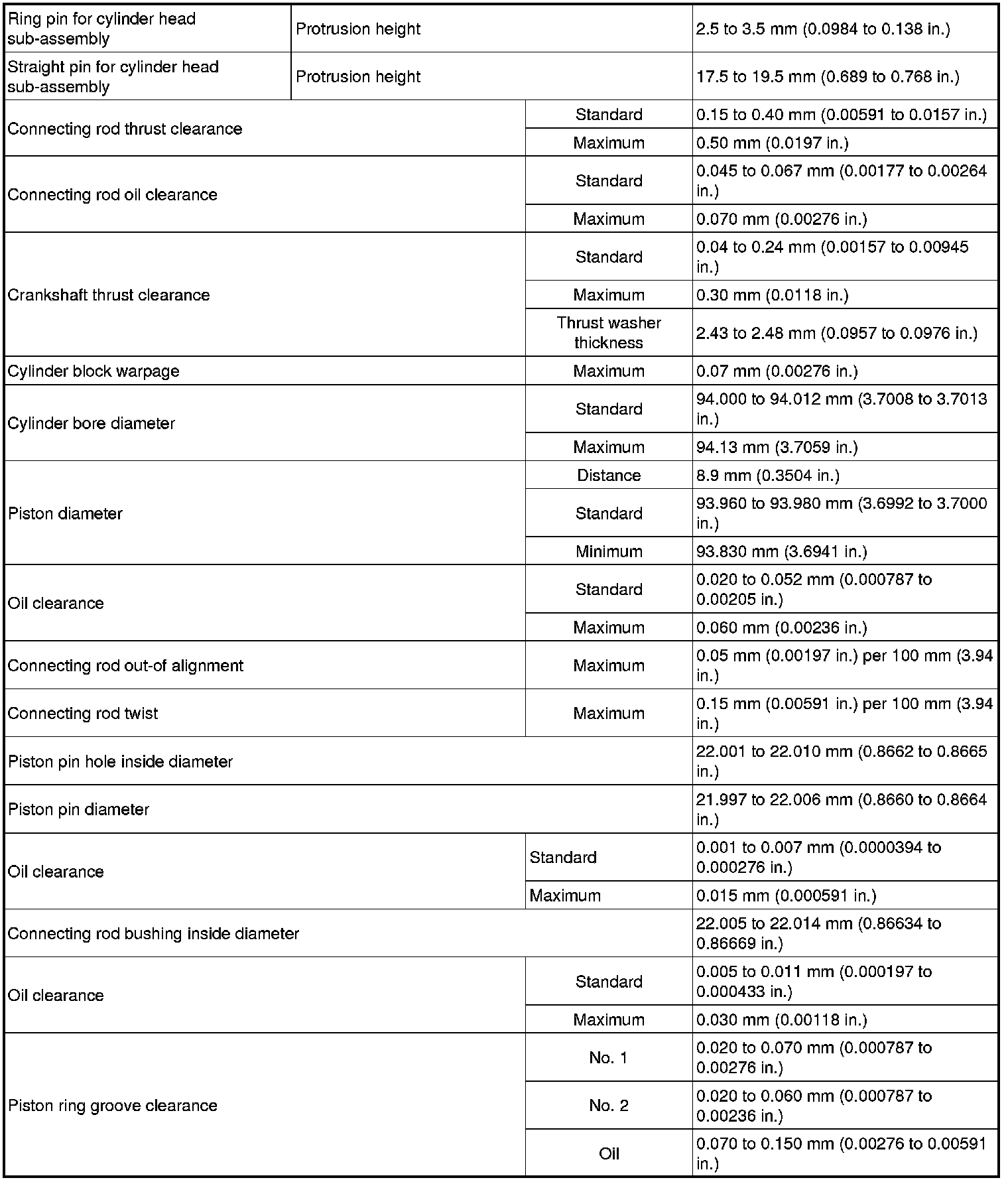

Cylinder Block
