Repair Instruction - Initialization

INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION

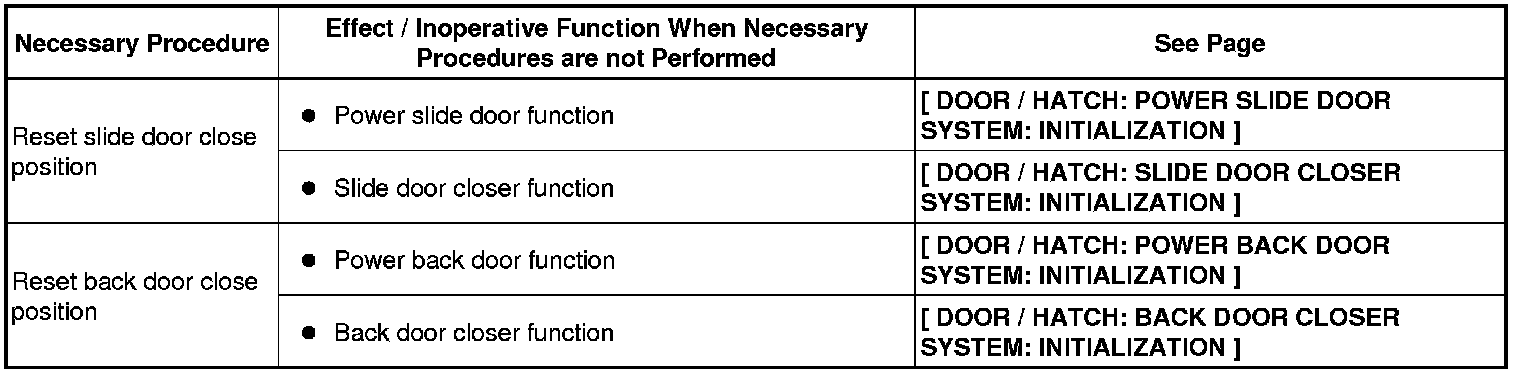

1. PROCEDURES NECESSARY WHEN BATTERY TERMINAL IS DISCONNECTED/RECONNECTED





NOTICE:
w/ Navigation System (for SD):

After the ignition switch is turned off, the navigation receiver assembly (Navigation System (for SD)) records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

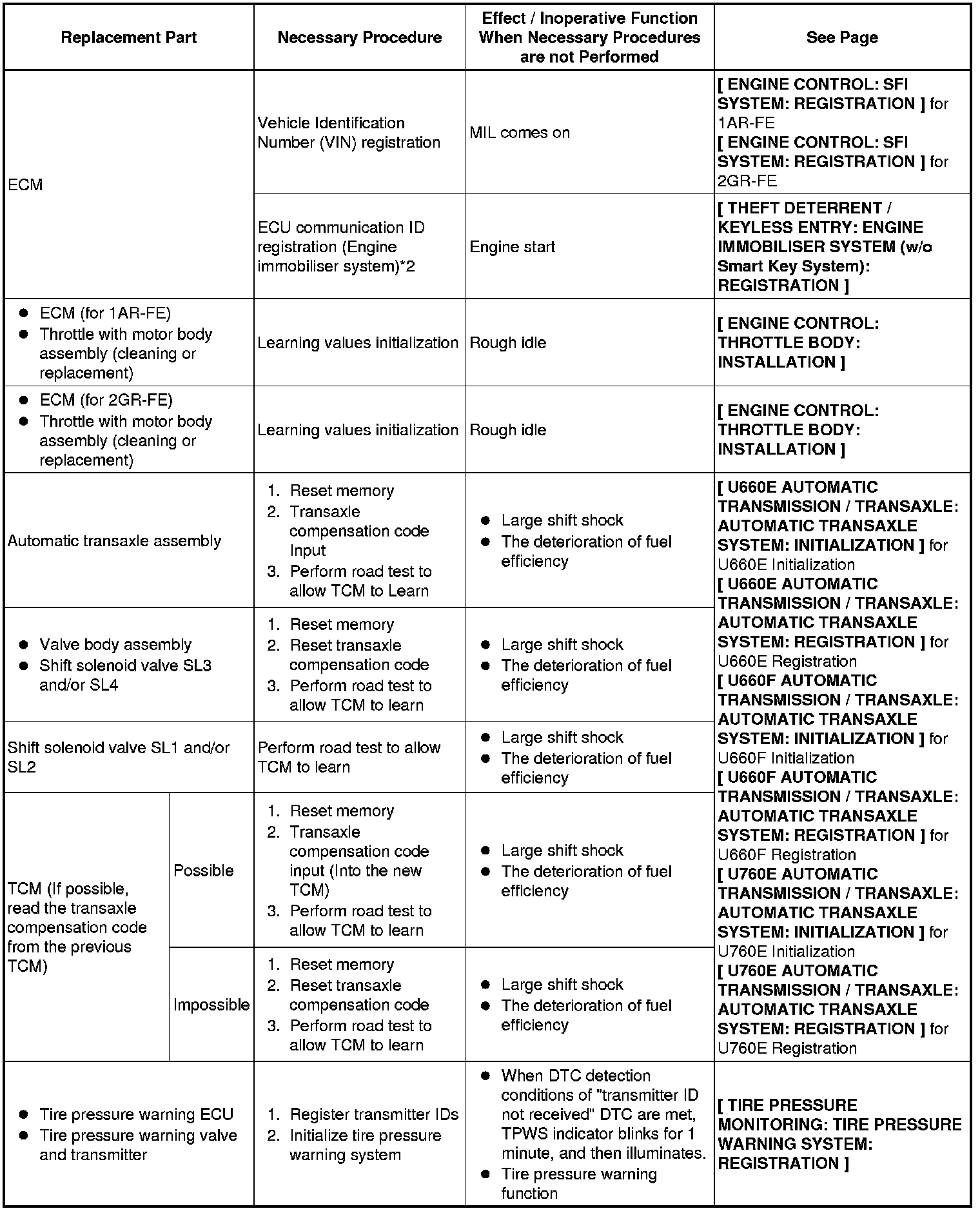

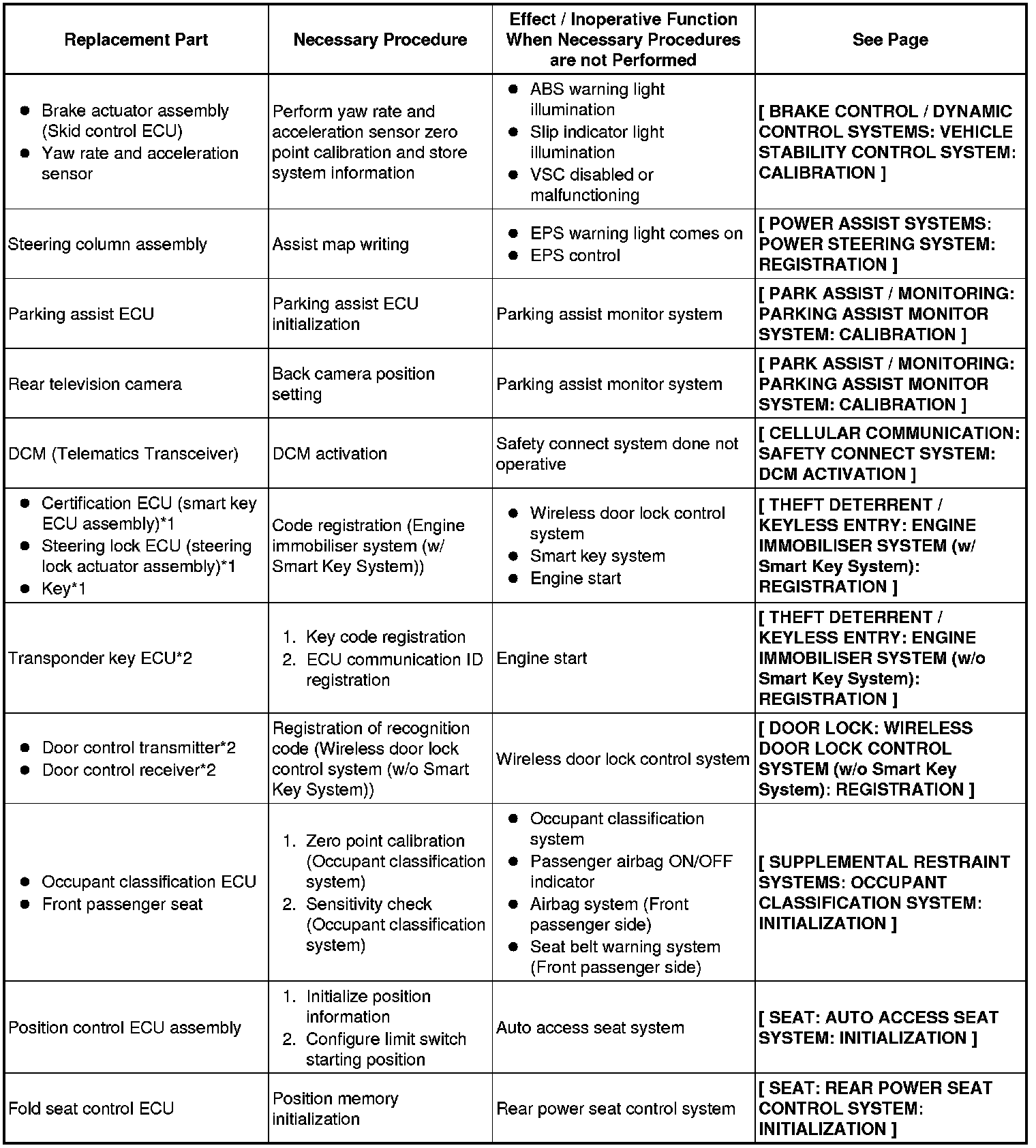

2. PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED













* *1: w/ Smart Key System

* *2: w/o Smart Key System
