Canada - Body - Quarter Window Weatherstrip Loose

T-TCI-3795

June 28, 2012

QUARTER WINDOW WEATHERSTRIP LOOSE

Service Category
Vehicle Exterior

Section
Window/Glass

Market
Canada





APPLICABILITY:

INTRODUCTION:

Some Sienna vehicles may exhibit a condition where the quarter glass weatherstrip may become loose or detached from the glass assembly. A new weatherstrip adhesive and primer have been developed to address this condition.





PRODUCTION CHANGE INFORMATION:

This TSB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

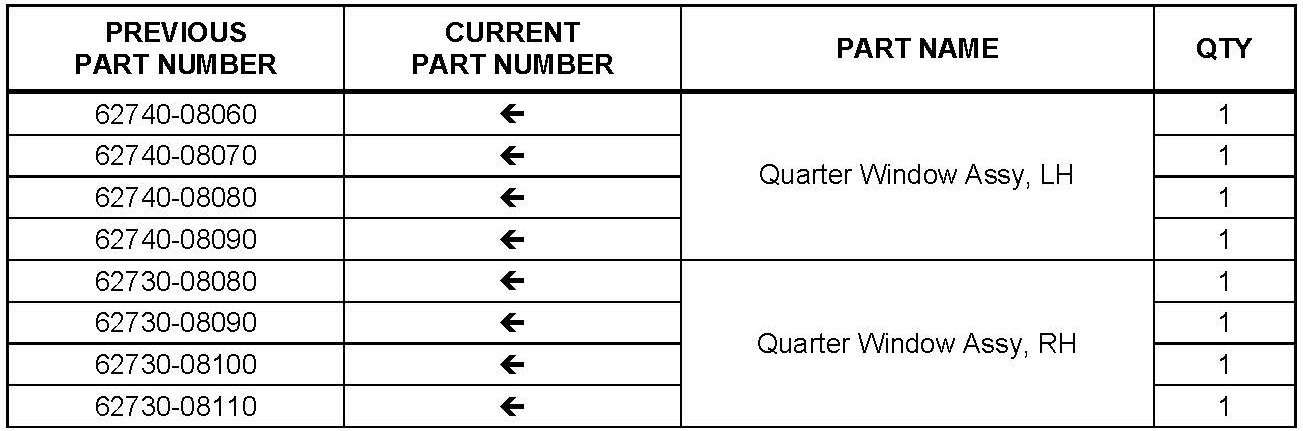

PARTS INFORMATION:





WARRANTY INFORMATION:

REPAIR PROCEDURE:





1. Confirm the quarter glass weatherstrip is loose or detached from the glass assembly.

2. Replace the quarter window assembly. Refer to the ETAS/TIS library applicable model and model year Repair Manual:

^ 2011 -2012 Sienna:
Vehicle Exterior- Window/Glass - "Window/Glass: Quarter Window Glass: Removal"

^ 2011-2012 Sienna:
Vehicle Exterior - Window/Glass - "Window/Glass: Quarter Window Glass: Installation"

3. Cycle the quarter window open and closed to confirm proper operation.

NOTE:
Issue of the Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
