Disc Brake System: Testing and Inspection

BRAKE: FRONT BRAKE (for 2WD): INSPECTION

1. INSPECT BRAKE CYLINDER AND PISTON

(a) Check the cylinder bore and disc brake piston for rust and scoring.

If necessary, replace the disc brake cylinder.

2. INSPECT PAD LINING THICKNESS

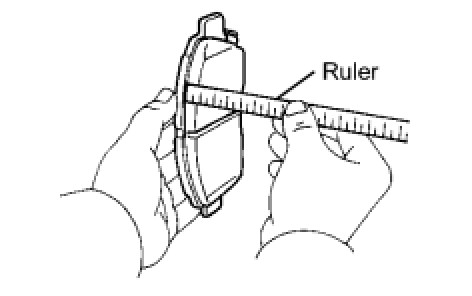

(a) Using a ruler, measure the pad lining thickness.

Standard thickness:

12.0 mm (0.472 in.)

Minimum thickness:

1.0 mm (0.0394 in.)

If the pad lining thickness is less than to the minimum thickness, replace the brake pad kit front.

3. INSPECT FRONT DISC BRAKE PAD SUPPORT PLATE

(a) Make sure that both plates have sufficient rebound, have no deformation, cracks or wear, and that all rust and dirt are cleaned off.

If necessary, replace the brake pad support plate.
