2TR-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR





(a) Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

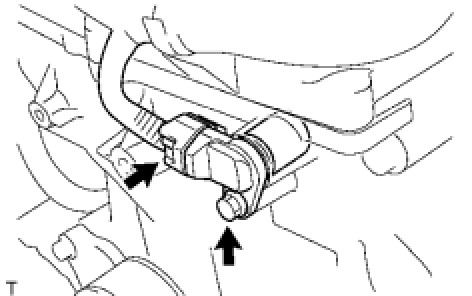

(b) Install the camshaft position sensor with the bolt.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
Make sure that the O-ring is not cracked or jammed when installing.

(c) Connect the camshaft position sensor connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
