System Diagram
A340E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

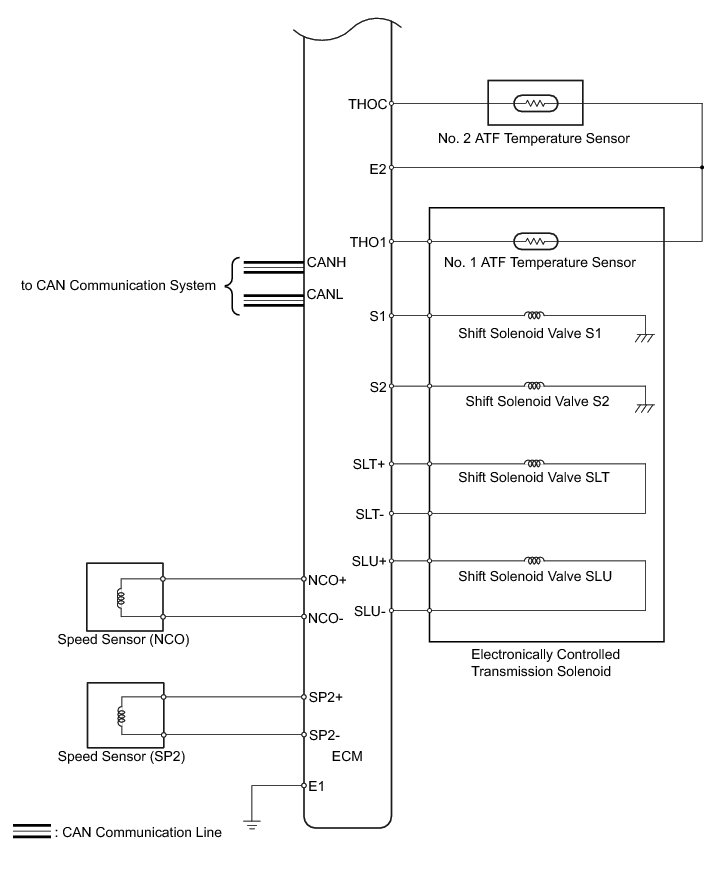

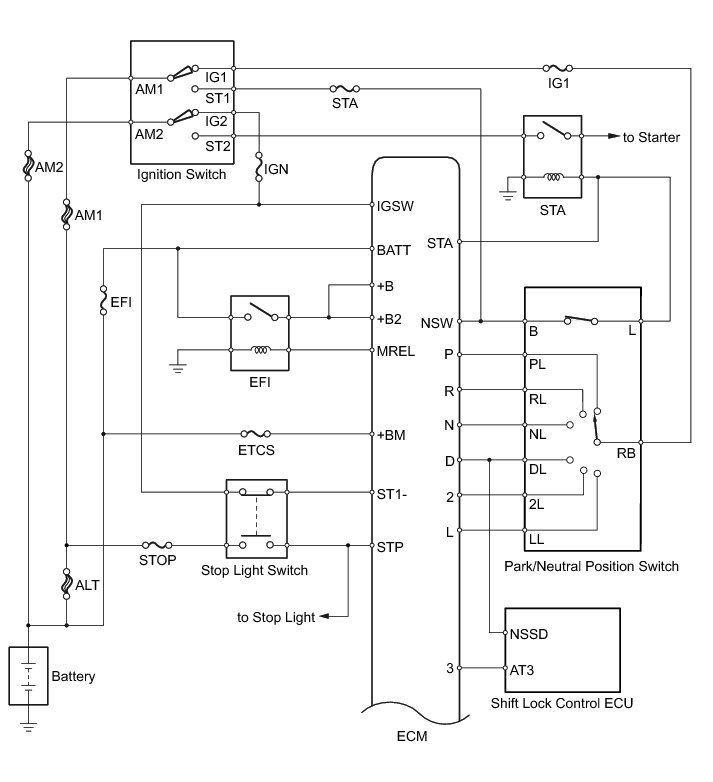

The configuration of the electronic control system for the A340E automatic transmission is as shown in the following chart.
A340E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM
The configuration of the electronic control system for the A340E automatic transmission is as shown in the following chart.
