Ride Height

VEHICLE HEIGHT






Text in Illustration

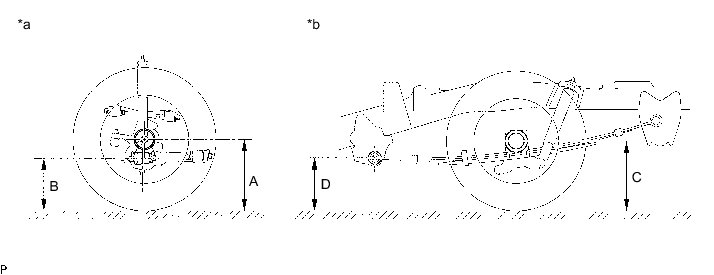

Measuring points:

A
Ground clearance of front wheel center

B
Ground clearance of adjustment cam bolt center (front side)

C
Ground clearance of rear wheel center

D
Ground clearance of rear leaf spring front side bush center

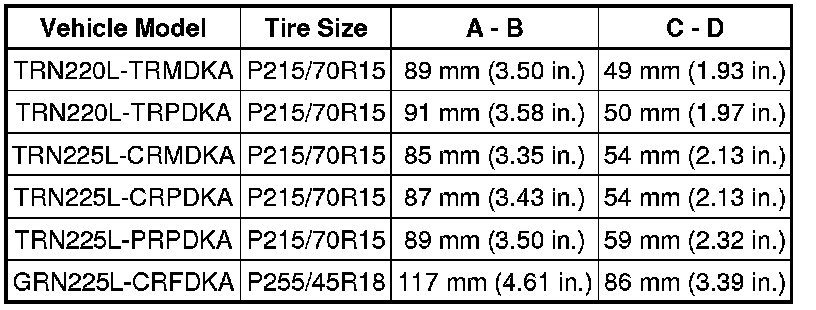

Vehicle Height (Unloaded Vehicle):
