Flywheel
FLYWHEEL SUB-ASSEMBLY (for Manual Transmission)Uniformly install and tighten the 10 bolts in the sequence shown in the illustration.
Torque
27 Nm (270 kgf-cm, 20 ft-lbf)

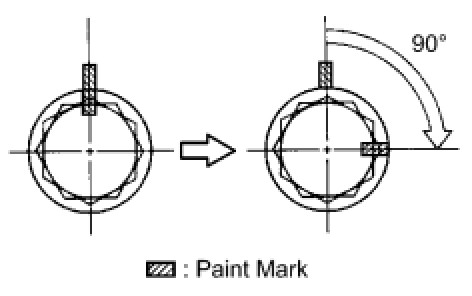

Mark the bolts with paint as shown in the illustration.
Retighten the bolts by 90° in the same sequence.
Check that the paint mark of each bolt is at a 90° from the original position.
